RN55L-LDA3 (1987)

Toyota 4-Runner Truck

Production Aug 1987 - Aug 1988
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN5#..DSL ; (8708-8808)G

Click highlighted areas on diagram

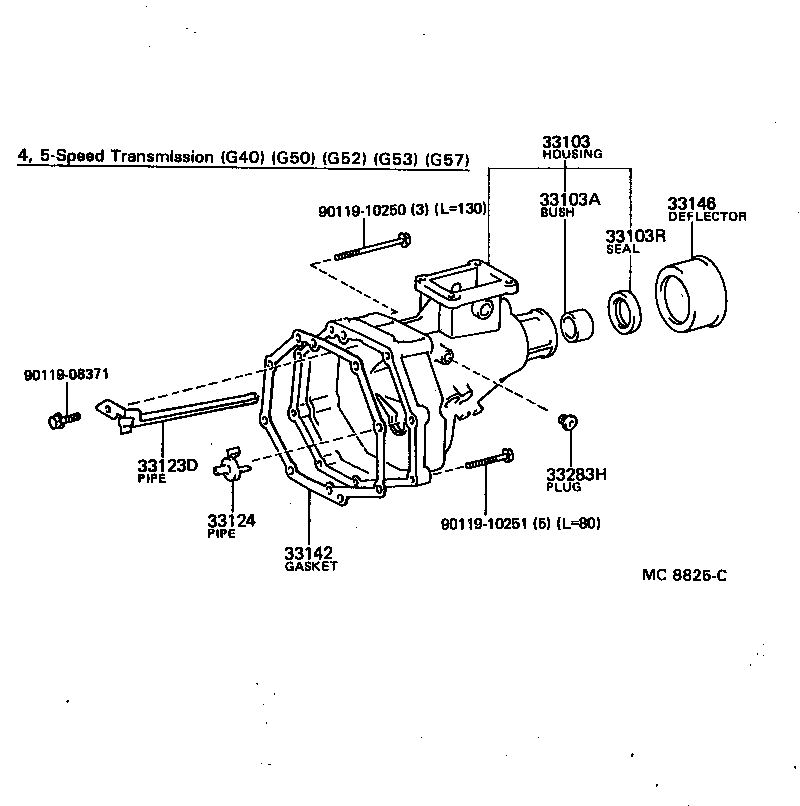

diagram 33103 33103A 33103R 33123D 33124 33142 33146 33283H 9011908371 9011910250 9011910251
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-20101

RN5#..MTM

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-73062

RN5#..MTM

 1
33123D - RECEIVER, CASE COVER OIL(MTM)
33124-35010

RN50..CND;LN56,RN5#,70..G

 1
33124 - PIPE, OIL RECEIVER(MTM)
33124-36010

RN5#,70..5F..G

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-20020

LN56,RN5#..MTM..(CBR,EFI,TD)

 1
33138-28020

RN50..CND;LN5#,RN5#,70..G

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

LN5#,RN5#,7#..MTM

 1
Common parts
90119-08371
90119-10250
90119-10251
