RN55L-KRA3W (1983)
Toyota 4-Runner Truck
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89147 |
RN5#,7#..MTM..(CBR,EFI) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89147 |
RN5#,7#..MTM..(CBR,EFI) |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90179-08146 | ||||
| 90959-01119 | ||||
| 90989-01042 | ||||
| 90989-01044 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-89105 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| Common parts | ||||
| 90167-50013 | ||||
| 90179-06026 | ||||
| 93560-15012 | ||||
| Linked diagrams | ||||
| 2203 | ||||

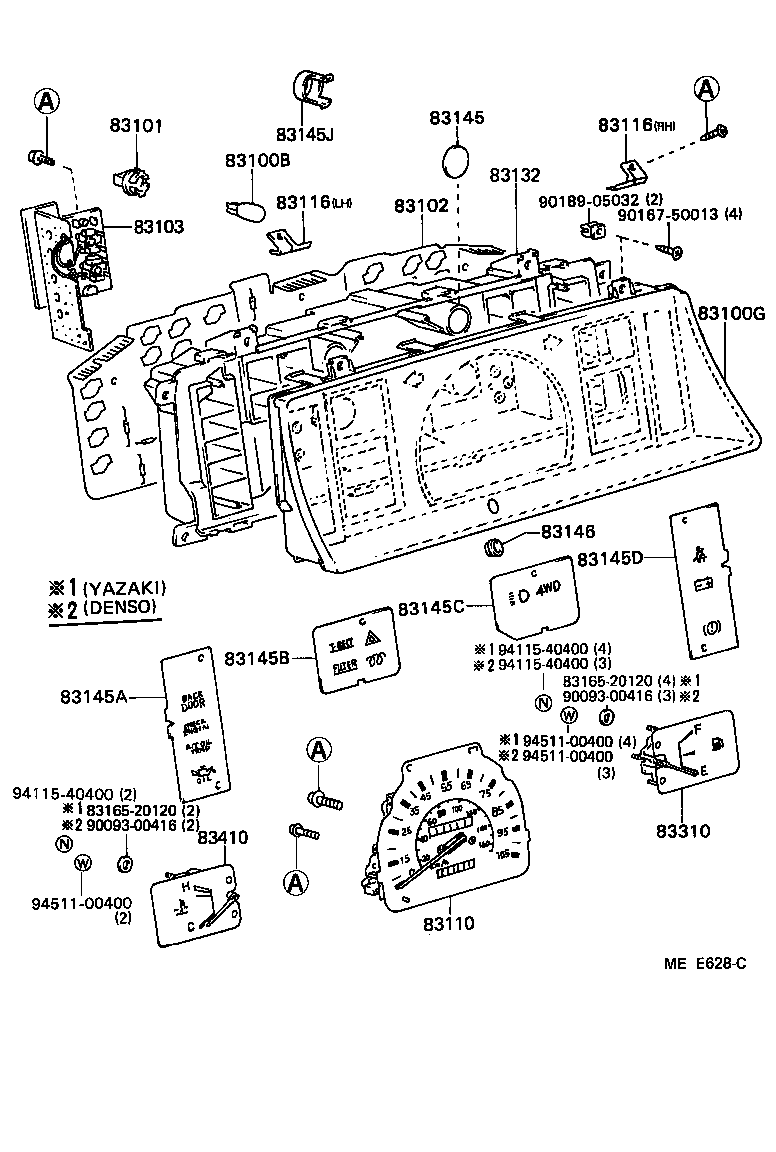

(8308- )DLX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN5#,6#,RN5#,6#,7#,VZN6#..DLX,SR5,STD 12V 3.4W,12V 3.4W |
16 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-89302 |
RN5#,7#..DLX,STD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN5#,6#,RN5#,6#,7#,VZN6#..DLX,SR5,STD YAZAKI,12V 3.4W |
16 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-89304 |
RN5#,7#..DLX,STD YAZAKI |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89206 |
RN5#,6#..(DLX,STD)..USA MILE & KM |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-89302 |
LN5#,6#,RN5#,6#,7#..DLX,SR5,STD LH |
1 | ||
| 83116-89300 |
LN5#,6#,RN5#,6#,7#..DLX,SR5,STD RH |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-89302 |
LN5#,6#,RN5#,6#,7#..DLX,SR5,STD LH |
1 | ||
| 83116-89300 |
LN5#,6#,RN5#,6#,7#..DLX,SR5,STD RH |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89300 |
LN5#,6#,RN5#,6#,7#,VZN6#..DLX,STD YAZAKI |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89320 |
LN5#,6#,RN5#,6#,7#,VZN6#..DLX,STD YAZAKI |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89304 |
LN5#,65,RN5#,6#..DLX,STD |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-89308 |
LN5#,65,RN5#,6#,7#..(DLX,STD)..(CBR,DSL,EFI) |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-89310 |
LN5#,65,RN5#,6#..DLX,STD |
1 | ||
| 83145J - ADAPTER, METER BULB SOCKET | ||||
| 83145-20100 |
LN5#,6#,RN5#,6#,7#,VZN6#..DLX,STD YAZAKI |
2 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-89302 |
LN5#,6#,RN5#,6#,7#..DLX,STD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-89304 |
LN5#,65,RN5#,6#..DLX,STD |
1 | ||
| Common parts | ||||
| 83165-20120 | ||||
| 90093-00416 | ||||
| 90167-50013 | ||||
| 90189-05032 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
(8308- )SR5 ; (8501-8808)HLF..TBO ; (8708-8808)DLX,STD
W/TACHOMETER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN5#,6#,RN5#,6#,7#,VZN6#..DLX,SR5,STD 12V 3.4W,12V 3.4W |
16 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN5#,6#,RN5#,6#,7#,VZN6#..DLX,SR5,STD 12V 3.4W,12V 3.4W |
16 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-89302 |
RN5#,7#..DLX,STD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN5#,6#,RN5#,6#,7#,VZN6#..DLX,SR5,STD YAZAKI,12V 3.4W |
16 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN5#,6#,RN5#,6#,7#,VZN6#..DLX,SR5,STD YAZAKI,12V 3.4W |
16 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-89304 |
RN5#,7#..DLX,STD YAZAKI |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89206 |
RN5#,6#..(DLX,STD)..USA MILE & KM |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-89302 |
LN5#,6#,RN5#,6#,7#..DLX,SR5,STD LH |
1 | ||
| 83116-89300 |
LN5#,6#,RN5#,6#,7#..DLX,SR5,STD RH |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-89302 |
LN5#,6#,RN5#,6#,7#..DLX,SR5,STD LH |
1 | ||
| 83116-89300 |
LN5#,6#,RN5#,6#,7#..DLX,SR5,STD RH |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89300 |
LN5#,6#,RN5#,6#,7#,VZN6#..DLX,STD YAZAKI |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-89302 |
LN5#,6#,RN5#,6#,7#..DLX,STD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-89304 |
LN5#,65,RN5#,6#..DLX,STD |
1 | ||
| Common parts | ||||
| 90167-50013 | ||||
| 90189-05032 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20300 | ||||
| 83161-20400 | ||||
| 83161-20720 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 93315-14012 | ||||
| 93540-13010 | ||||
