RN55L-KRA3W (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN5#,RN5#,7#

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48047 48210A 48210A 48210B 48210B 48210B 48210B 48210G 48210G 48306 48382 48401 48402 48404 48405 48516 48517 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48540 9010514025 9161140816 9161140820 9161141020 9161141020 9411051300 9411551400 9411551400 9411551400 9451201300 9451201400 9451201400 9451201400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-35040

LN5#,6#,RN5#,6#,7#,VZN6#

 2
04484 - PIN KIT, REAR SPRING
04482-35030

RN55,75..10T,3QT,HVY

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-35080

LN5#,RN5#

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-13091

RN55..HVY

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-35080

LN5#,RN5#

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18046

LN5#,6#,RN5#,6#,7#,VZN6#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18046

LN5#,6#,RN5#,6#,7#,VZN6#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

RN55,75..10T,3QT,HVY

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

RN55,75..10T,3QT,HVY

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

RN55,75..10T,3QT,HVY

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

RN55,75..10T,3QT,HVY

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

LN5#,6#,RN5#,6#,7#,VZN6#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

LN5#,6#,RN5#,6#,7#,VZN6#

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48341-35040

RN55..10T,3QT,HVY

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-35070

RN55..10T,3QT,HVY

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48414-35070

RN55..10T,3QT,HVY

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-35050

LN5#,65,RN5#,6#

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48416-35050

LN5#,65,RN5#,6#

 1
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-35020

LN5#,RN5#

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48506-35020

LN5#,RN5#

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39605

RN55,75..10T,3QT,HVY

MARK 48531-35270

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN5#,RN5#,7#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN5#,RN5#,7#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN5#,RN5#,7#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN5#,RN5#,7#

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

LN5#,RN5#,7#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03012

LN5#,RN5#,7#

 4
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03012

LN5#,RN5#,7#

 4
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

LN5#,RN5#,7#

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39605

RN55,75..10T,3QT,HVY

MARK 48531-35270

 1
Common parts
90105-14025
91611-40816
91611-40820
91611-41020
94110-51300
94115-51400
94512-01300
94512-01400

(8308- )10T,HVY

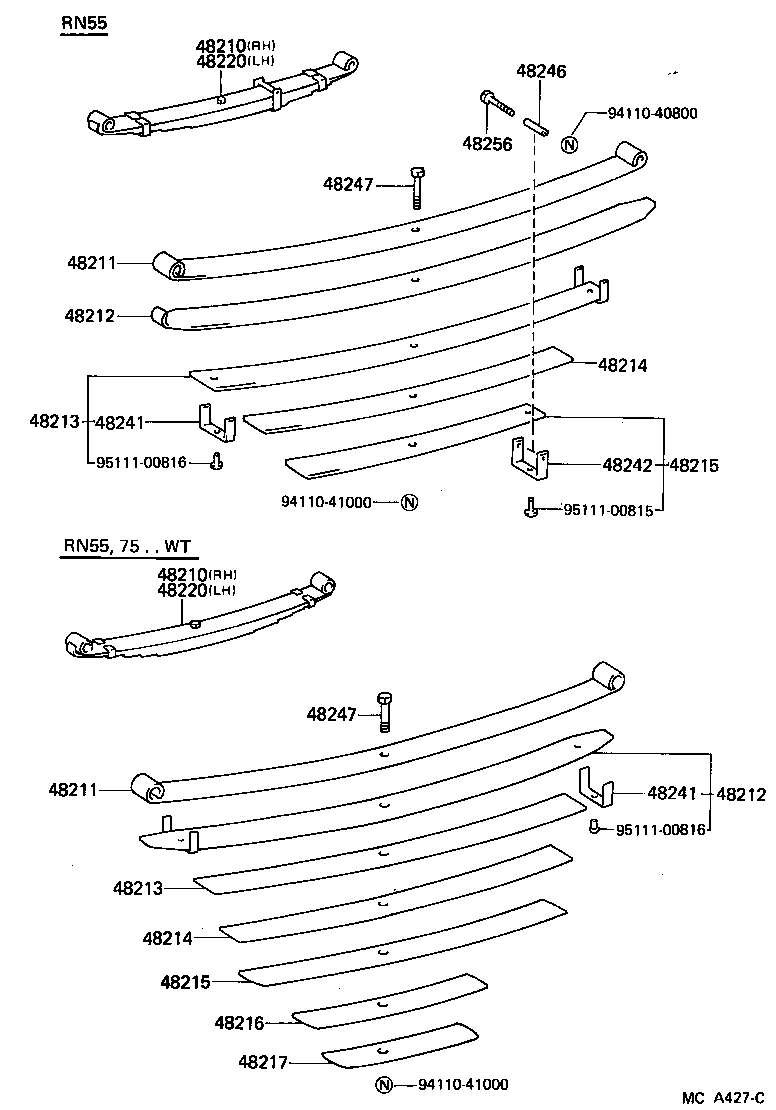

Click highlighted areas on diagram

diagram 48210 48210 48211 48211 48212 48212 48213 48213 48214 48214 48215 48215 48216 48217 48220 48220 48241 48241 48242 48246 48247 48247 48256 9411040800 9411041000 9411041000 9511100815 9511100816 9511100816
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-35310

RN55..HVY

 1
48210 - SPRING ASSY, REAR RH
48210-35310

RN55..HVY

 1
48211 - LEAF, REAR SPRING, NO.1
48211-35310

RN55..HVY

 2
48211 - LEAF, REAR SPRING, NO.1
48211-35310

RN55..HVY

 2
48212 - LEAF, REAR SPRING, NO.2
48212-35310

RN55..HVY

 2
48212 - LEAF, REAR SPRING, NO.2
48212-35310

RN55..HVY

 2
48213 - LEAF, REAR SPRING, NO.3
48201-35310

RN55..HVY

 2
48213 - LEAF, REAR SPRING, NO.3
48201-35310

RN55..HVY

 2
48214 - LEAF, REAR SPRING, NO.4
48214-35310

RN55..HVY

 2
48214 - LEAF, REAR SPRING, NO.4
48214-35310

RN55..HVY

 2
48215 - LEAF, REAR SPRING, NO.5
48202-35310

RN55..HVY

 2
48215 - LEAF, REAR SPRING, NO.5
48202-35310

RN55..HVY

 2
48220 - SPRING ASSY, REAR LH
48210-35310

RN55..HVY

 1
48220 - SPRING ASSY, REAR LH
48210-35310

RN55..HVY

 1
48241 - CLIP, REAR SPRING, NO.1
48243-35120

RN55..HVY

 4
48241 - CLIP, REAR SPRING, NO.1
48243-35120

RN55..HVY

 4
48242 - CLIP, REAR SPRING, NO.2
48242-35290

RN55..HVY

 2
48246 - CASE, REAR SPRING CLIP BOLT
48246-35040

RN55..(10T,3QT,HVY)..ST

 2
48247 - BOLT, REAR SPRING, CENTER
48247-35070

RN55..HVY

 2
48247 - BOLT, REAR SPRING, CENTER
48247-35070

RN55..HVY

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-35040

RN55..(10T,3QT,HVY)..ST

 2
Common parts
94110-40800
94110-41000
95111-00815
95111-00816
