RN55L-KDK3W (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)T1

Click highlighted areas on diagram

diagram 77021 77023 77023 77031 77031B 77100 77100 77100 77100A 77100A 77100A 77100B 77100B 77100B 77100D 77201 77206 77206 77206A 77206A 77213 77276 77295 77308 77308A 77308A 77606 77606 77606B 9015960221 9017008194 9046022001 9046022001 9046065004 9046065004 9046108323 9048001137 9094901299 9163140616 9165160816 9165160816 9165160825 9165660825 9165660825 9165660825 9331914010 9331914010 9338515012
Part # Description Qty Price
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-12050

RN5#,6#,70..CBR

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-12050

RN5#,6#,70..CBR

 1
77031 - CAP ASSY, FUEL TANK
77310-16010

RN5#,6#,7#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-16010

RN5#,6#,7#,VZN6#

 1
77100 - TANK ASSY, FUEL
77100-35420

RN55..CND..CBR

65LITER

 1
77100 - TANK ASSY, FUEL
77100-35420

RN55..CND..CBR

65LITER

 1
77100 - TANK ASSY, FUEL
77100-35420

RN55..CND..CBR

65LITER

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

LN5#,6#,RN5#,6#,7#,VZN6#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

LN5#,6#,RN5#,6#,7#,VZN6#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

LN5#,6#,RN5#,6#,7#,VZN6#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LN5#,6#,RN5#,6#,7#,VZN6#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LN5#,6#,RN5#,6#,7#,VZN6#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LN5#,6#,RN5#,6#,7#,VZN6#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77408-35020

LN5#,6#,RN5#,6#,7#,VZN6#..T1

L=340

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35160

RN5#,6#,7#,VZN6#..IV

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77203-35210

RN55..CBR

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77203-35210

RN55..CBR

 1
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
77169-14020

RN5#,6#,70..CBR

 1
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
77169-14020

RN5#,6#,70..CBR

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-35080

LN5#,RN5#,7#..IV

 1
77276 - PROTECTOR, FUEL HOSE
77276-89103

LN5#,65,RN5#,6#,70..IV

 1
77295 - SHIELD, FUEL FILLER PIPE
77291-35020

LN5#,65,RN5#,6#,7#,VZN6#..IV

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-35050

LN5#,RN5#,7#

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-35050

LN5#,RN5#,7#

 1
Common parts
90159-60221
90170-08194
90460-22001
90460-65004
90461-08323
90480-01137
90949-01299
91631-40616
91651-60816
91651-60825
91656-60825
93319-14010
93385-15012

(8308-8808)CBR

Click highlighted areas on diagram

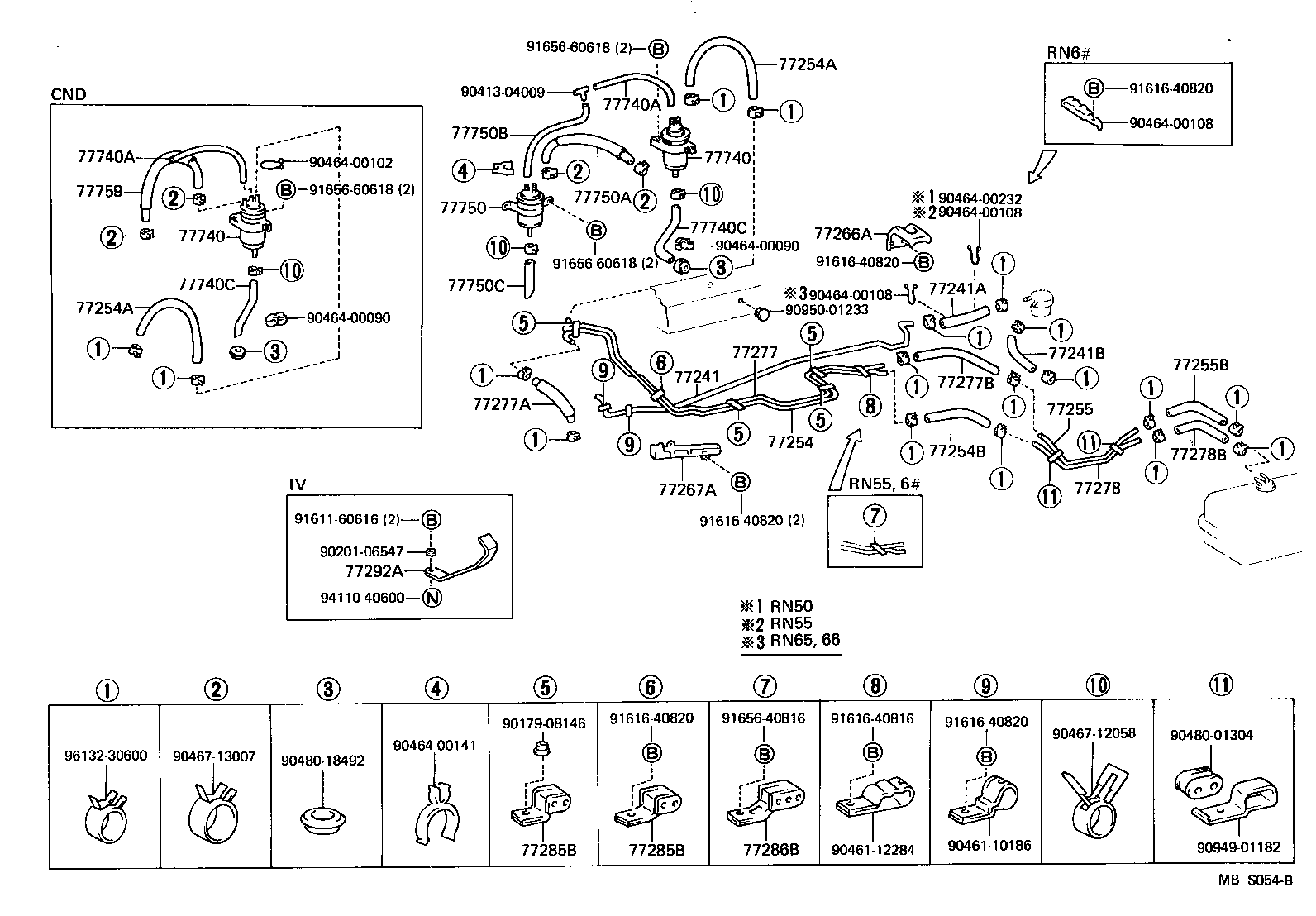

diagram 77241 77241A 77241B 77254 77254A 77254A 77254B 77255 77255B 77266A 77267A 77277 77277A 77277B 77278 77278B 77285B 77285B 77286B 77292A 77740 77740 77740A 77740A 77740C 77740C 77750 77750A 77750B 77750C 77759 9017908146 9020106547 9041304009 9046110186 9046112284 9046400090 9046400090 9046400102 9046400108 9046400108 9046400108 9046400141 9046400232 9046712058 9046713007 9048001304 9048018492 9094901182 9095001233 9161160616 9161640816 9161640820 9161640820 9161640820 9161640820 9161640820 9165640816 9165660618 9165660618 9165660618 9411040600 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-35240

RN55..CBR

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06030

RN55,70..CBR

*H,L=260

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06020

RN55,70..CBR

*H,L=180

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-35120

RN55,65

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06040

RN60..IV;RN5#,65..CBR;RN60..(DLX,STD)..CBU

*H,L=380

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06040

RN60..IV;RN5#,65..CBR;RN60..(DLX,STD)..CBU

*H,L=380

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
77209-35130

RN55

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-35190

RN55,65..CBR

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12022

RN5#,6#,70..CBR

L=300

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
90445-12108

LN56,RN55

*H,L=590

 1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35030

RN5#,6#,70..T1..CBR

 5
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35030

RN5#,6#,70..T1..CBR

 5
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77285-35050

RN55,65,66,VZN66

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35160

RN55..CND..IV

 1
77740-35160

RN55..HVY

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35160

RN55..CND..IV

 1
77740-35160

RN55..HVY

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

RN5#,6#..CBR

*H,L=420,MARK=#*

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

RN5#,6#..CBR

*H,L=420,MARK=#*

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77754-35130

RN5#,70..CBR

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77754-35130

RN5#,70..CBR

 1
77750 - CANISTER ASSY, CHARCOAL
77740-35170

RN55..HVY

 1
77740-35170

RN55..CND..IV

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
23829-35021

RN55..CND..IV

 1
23829-35021

RN55..HVY

 1
77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
95411-19960

RN55..CND..IV

*H,L=420,MARK=#*

 1
95411-19960

RN55..HVY

*H,L=420,MARK=#*

 1
77750C - HOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER)
77754-35140

RN55..HVY

L=160

 1
77754-35140

RN55..CND..IV

L=160

 1
Common parts
90179-08146
90201-06547
90413-04009
90461-10186
90461-12284
90464-00090
90464-00102
90464-00108
90464-00141
90464-00232
90467-12058
90467-13007
90480-01304
90480-18492
90949-01182
90950-01233
91611-60616
91616-40816
91616-40820
91656-40816
91656-60618
94110-40600
96132-30600

(8403-8408)V,WG

Click highlighted areas on diagram

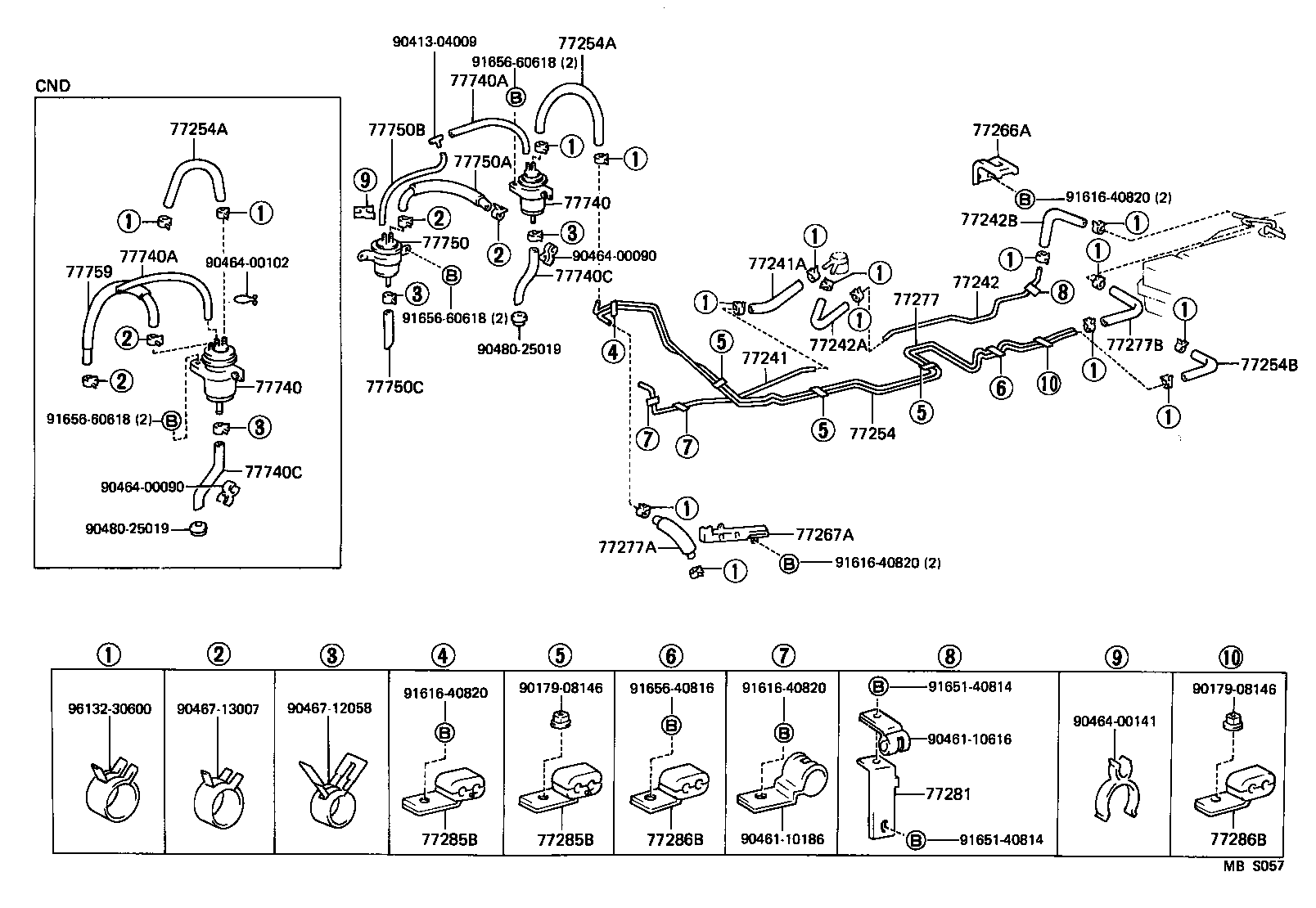

diagram 77241 77241A 77242 77242A 77242B 77254 77254A 77254A 77254B 77266A 77267A 77277 77277A 77277B 77281 77285B 77285B 77286B 77286B 77740 77740 77740A 77740A 77740C 77740C 77750 77750A 77750B 77750C 77759 9017908146 9017908146 9041304009 9046110186 9046110616 9046400090 9046400090 9046400102 9046400141 9046712058 9046713007 9048025019 9048025019 9161640820 9161640820 9161640820 9161640820 9165140814 9165140814 9165640816 9165660618 9165660618 9165660618 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-35240

RN55..CBR

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06030

RN55,70..CBR

*H,L=260

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-35120

RN55,65

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06040

RN60..IV;RN5#,65..CBR;RN60..(DLX,STD)..CBU

*H,L=380

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06040

RN60..IV;RN5#,65..CBR;RN60..(DLX,STD)..CBU

*H,L=380

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
77209-35130

RN55

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-35190

RN55,65..CBR

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12022

RN5#,6#,70..CBR

L=300

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
90445-12108

LN56,RN55

*H,L=590

 1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35030

RN5#,6#,70..T1..CBR

 5
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35030

RN5#,6#,70..T1..CBR

 5
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77285-35050

RN55,65,66,VZN66

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77285-35050

RN55,65,66,VZN66

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35160

RN55..CND..IV

 1
77740-35160

RN55..HVY

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35160

RN55..CND..IV

 1
77740-35160

RN55..HVY

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

RN5#,6#..CBR

*H,L=420,MARK=#*

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

RN5#,6#..CBR

*H,L=420,MARK=#*

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77754-35130

RN5#,70..CBR

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77754-35130

RN5#,70..CBR

 1
77750 - CANISTER ASSY, CHARCOAL
77740-35170

RN55..HVY

 1
77740-35170

RN55..CND..IV

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
23829-35021

RN55..CND..IV

 1
23829-35021

RN55..HVY

 1
77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
95411-19960

RN55..CND..IV

*H,L=420,MARK=#*

 1
95411-19960

RN55..HVY

*H,L=420,MARK=#*

 1
77750C - HOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER)
77754-35140

RN55..HVY

L=160

 1
77754-35140

RN55..CND..IV

L=160

 1
Common parts
90179-08146
90413-04009
90461-10186
90461-10616
90464-00090
90464-00102
90464-00141
90467-12058
90467-13007
90480-25019
91616-40820
91651-40814
91656-40816
91656-60618
96132-30600
