RN55L-KDK3W (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

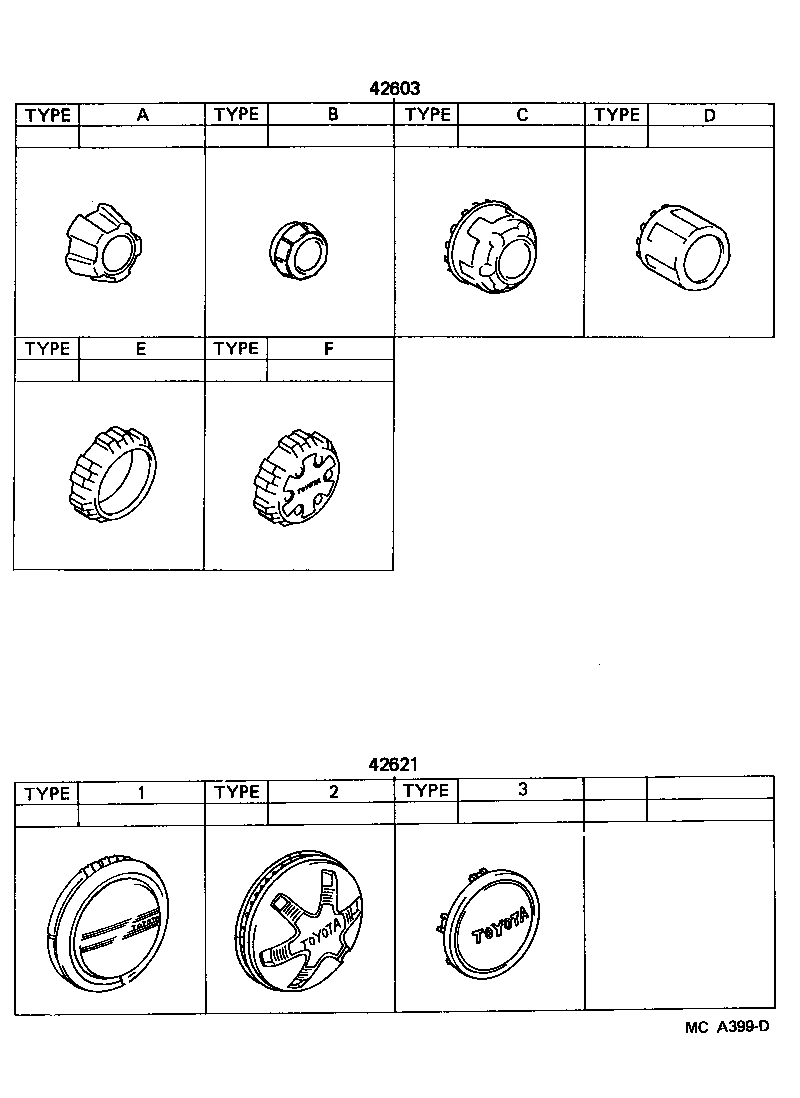

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-35061

LN56,RN55..DLX

TYPE A

 4

(8308- )

Click highlighted areas on diagram

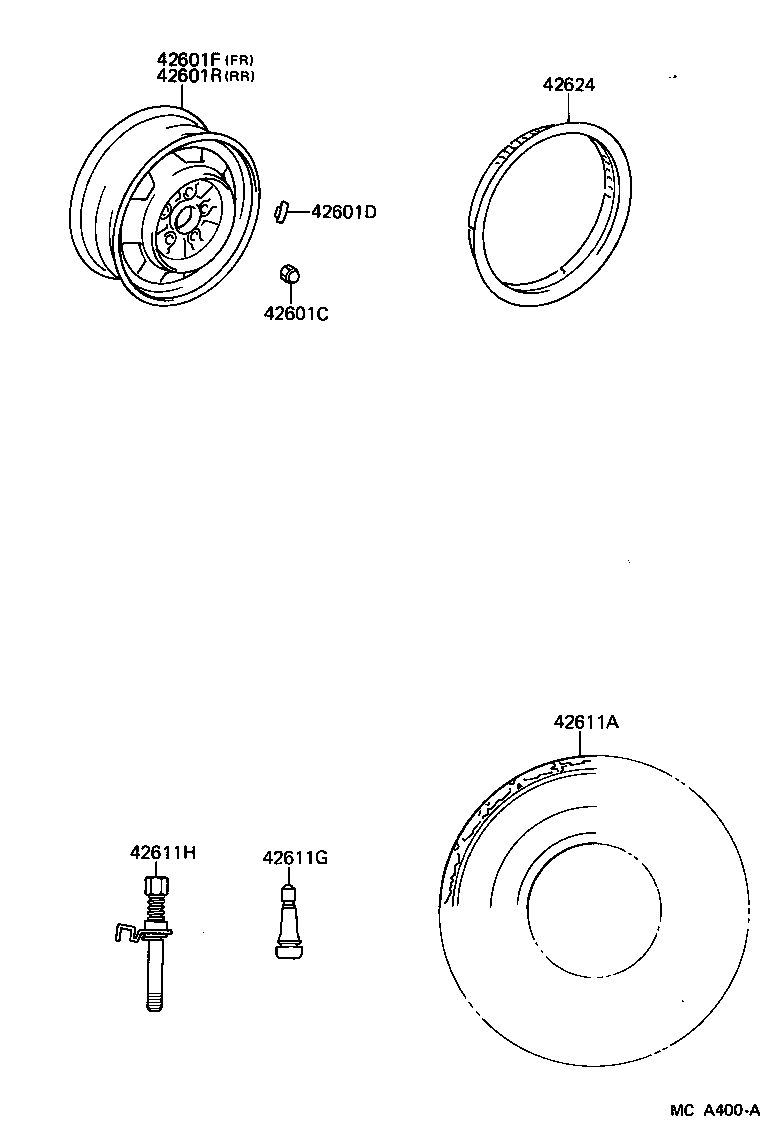

diagram 42601C 42601D 42601F 42601R 42611A 42611G 42611H 42624
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
90942-01027

RN55..STD..EFI;LN56,RN5#,70..DLX,SR5

 20
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03027

LN5#,RN5#,7#..DLX,SR5,STD

60G,T=9.5,60G

 1
90942-03022

LN5#,RN5#,7#..DLX,SR5,STD

40G,T=9.5,40G

 1
90942-03025

LN5#,RN5#,7#..DLX,SR5,STD

50G,T=9.5,50G

 1
90942-03029

LN5#,RN5#,7#..DLX,SR5,STD

70G,T=9.5,70G

 1
90942-03020

LN5#,RN5#,7#..DLX,SR5,STD

30G,T=10,30G

 1
90942-03099

LN5#,RN5#,7#..DLX,SR5,STD

25G,25G

 1
90942-03109

LN5#,RN5#,7#..DLX,SR5,STD

75G,75G

 1
90942-03102

LN5#,RN5#,7#..DLX,SR5,STD

55G,55G

 1
90942-03108

LN5#,RN5#,7#..DLX,SR5,STD

65G,65G

 1
90942-03101

LN5#,RN5#,7#..DLX,SR5,STD

45G,45G

 1
90942-03017

LN5#,RN5#,7#..DLX,SR5,STD

20G,T=8,20G

 1
90942-03100

LN5#,RN5#,7#..DLX,SR5,STD

35G,35G

 1
90942-03041

LN5#,RN5#,7#..DLX,SR5,STD

10G,T=7.5,10G

 1
90942-03098

LN5#,RN5#,7#..DLX,SR5,STD

15G,15G

 1
90942-03031

LN5#,RN5#,7#..DLX,SR5,STD

80G,T=9.5,80G

 1
42601F - WHEEL, DISC (FOR FRONT)
42601-35151

LN5#,RN5#..CBR,DSL

5J-14

 2
42601R - WHEEL, DISC (FOR REAR)
42601-35151

LN5#,RN5#..CBR,DSL

5J-14

 3
42611A - TIRE TUBE SET OR TUBELESS TIRE
42652-35040

RN55..3QT,HVY

7.50-14-6

 5
42611G - VALVE (FOR TUBELESS TIRE)
90942-05004

LN5#,RN5#,7#

 5
