RN55L-KDK3W (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN56,RN55,7#

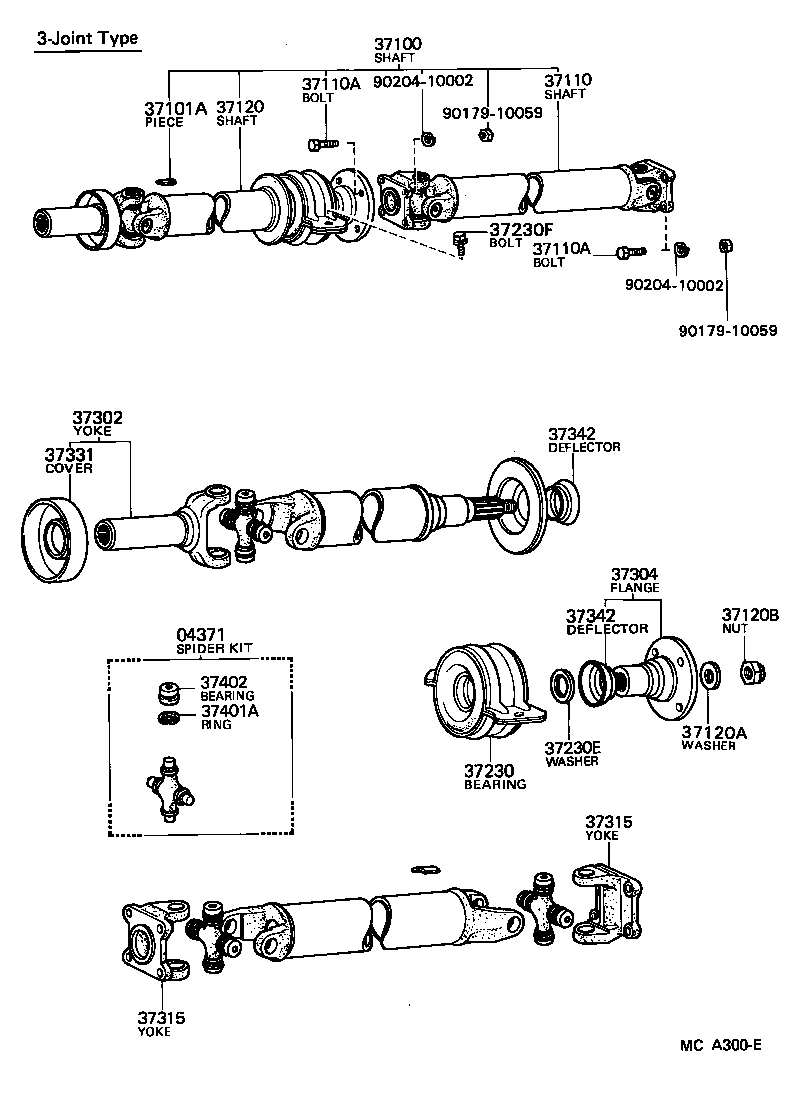

Click highlighted areas on diagram

diagram 04371 37100 37101A 37110 37110A 37110A 37120 37120A 37120B 37230 37230E 37230F 37302 37304 37315 37315 37331 37342 37342 37401A 37402 9017910059 9017910059 9020410002 9020410002
Part # Description Qty Price
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-25010

RN5#..4F

*AXC=G392 OR G282

 3
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-35180

RN55..HVY

 1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01003

LN5#,RN5#

8G,T=1.2,10G,SPOT

 1
90937-01029

LN5#,RN5#

5G,SPOT

 1
90937-01005

LN5#,RN5#

30G,T=1.2,30G,SPOT

 1
90937-01140

LN5#,RN5#

30G,L=62.2,30G,PROJECTION

 1
90937-01030

LN5#,RN5#

15G,SPOT

 1
90937-01031

LN5#,RN5#

25G,SPOT

 1
90937-01004

LN5#,RN5#

20G,T=1.2,20G,SPOT

 1
90937-01136

LN5#,6#,RN5#,6#,7#

20G,L=41.4,20G,PROJECTION

 1
90937-01155

LN5#,6#,RN5#,6#,7#

22G,L=45.6,22G,PROJECTION

 1
90937-01153

LN5#,6#,RN5#,6#,7#

16G,L=33.2,16G,PROJECTION

 1
90937-01154

LN5#,6#,RN5#,6#,7#

18G,L=37.3,18G,PROJECTION

 1
90937-01158

LN5#,6#,RN5#,6#,7#

28G,L=58.1,28G,PROJECTION

 1
90937-01156

LN5#,6#,RN5#,6#,7#

24G,L=49.7,24G,PROJECTION

 1
90937-01157

LN5#,6#,RN5#,6#,7#

26G,L=53.9,26G,PROJECTION

 1
90937-01147

LN5#,6#,RN5#,6#,7#,VZN6#

2G,T=2.0,2G,PROJECTION

 1
90937-01132

LN5#,6#,RN5#,6#,7#,VZN6#

10G,L=20.7,10G,PROJECTION

 1
90937-01150

LN5#,6#,RN5#,6#,7#,VZN6#

8G,L=16.6,8G,PROJECTION

 1
90937-01148

LN5#,6#,RN5#,6#,7#,VZN6#

4G,T=2.0,4G,PROJECTION

 1
90937-01149

LN5#,6#,RN5#,6#,7#,VZN6#

6G,L=12.4,6G,PROJECTION

 1
90937-01152

LN5#,6#,RN5#,6#,7#,VZN6#

14G,L=29.0,14G,PROJECTION

 1
90937-01201

LN5#,6#,RN5#,6#,7#,VZN6#

30G,T=4.5,L=27.4,30G

 6
90937-01151

LN5#,6#,RN5#,6#,7#,VZN6#

12G,L=24.9,12G,PROJECTION

 1
37110 - SHAFT ASSY, PROPELLER
37110-35230

RN55..HVY

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

RN66..CBR,EFI;RN66..4FC..TBO;LN5#,6#,RN5#,60,61,65,7#,VZN6#..DLX,SR5,SRT,STD

*10-1.00PX27-13

 16
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

RN66..CBR,EFI;RN66..4FC..TBO;LN5#,6#,RN5#,60,61,65,7#,VZN6#..DLX,SR5,SRT,STD

*10-1.00PX27-13

 16
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-35140

RN55..HVY

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-20005

RN55..HVY

OD=33.5,T=4.0

 1
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-20006

RN55..HVY

 1
90179-20001

RN55..HVY

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-35050

LN56,RN55,7#

 1
37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING)
90201-28001

RN55..HVY

 1
90201-28005

RN55..HVY

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10049

LN56,RN55,7#

 2
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-35010

RN5#..4F

*AXC=G392 OR G282

 1
37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT
37304-35050

RN55..HVY

 1
37304-35051

RN55..HVY

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35050

RN5#..4F

*AXC=G392 OR G282

 2
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35050

RN5#..4F

*AXC=G392 OR G282

 2
37331 - COVER, SLIDING SHAFT DUST
37331-30010

LN5#,RN5#,7#..DLX,SR5,STD

 1
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-30010

RN55..HVY

 1
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-30010

RN55..HVY

 1
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29071

RN5#..4F

T=2.425-2.475,T=2.45,*AXC=G392 OR F282

 12
90521-29070

RN5#..4F

T=2.375-2.425,T=2.4,*AXC=G392 OR F282

 12
90521-29072

RN5#..4F

T=2.475-2.525,T=2.5,*AXC=G392 OR F282

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-25020

RN5#..4F

*AXC=G392 OR G282

 12
Common parts
90179-10059
90204-10002
