RN55L-KDK3W (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)RN5#..MTM ; (8408-8508)RN5#..5F..CBR

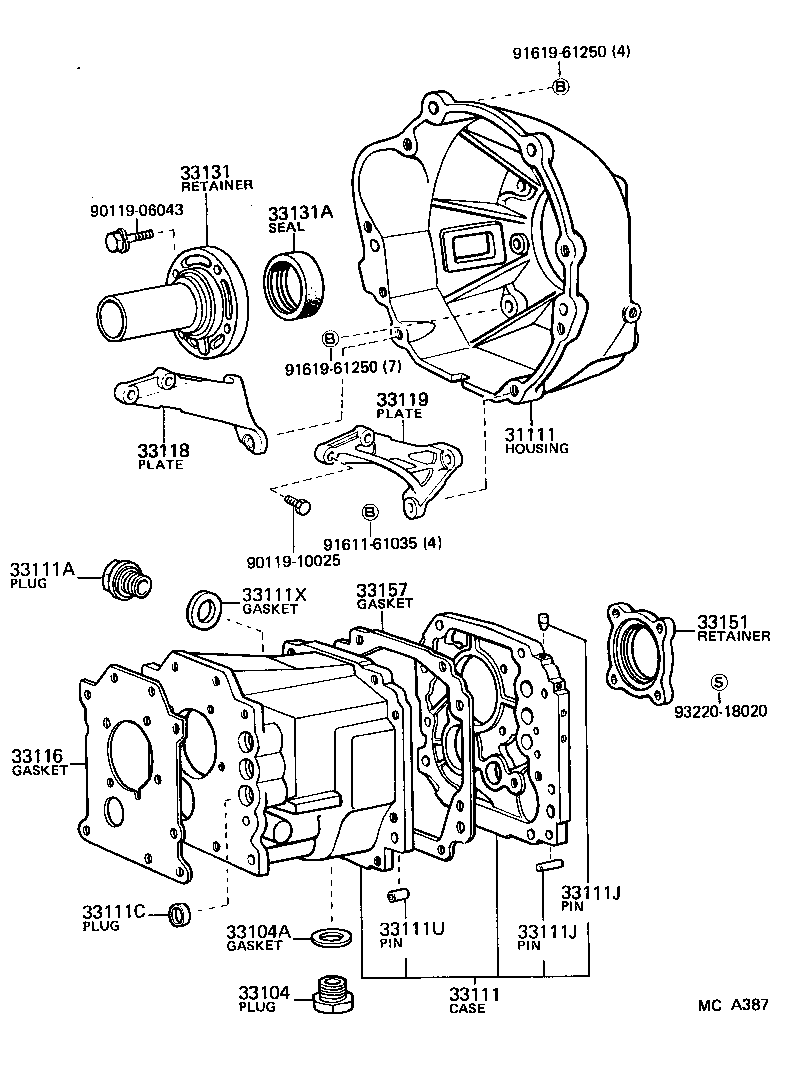

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111C 33111J 33111J 33111U 33111X 33116 33118 33119 33131 33131A 33151 33157 9011906043 9011910025 9161161035 9161961250 9161961250 9322018020
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-20110

RN5#..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

LN5#,65,RN5#,6#..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18007

LN5#,65,RN5#,6#..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-20011

RN5#..MTM

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006

LN5#,RN5#..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-20044

RN5#..MTM

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12195

RN5#..MTM

L=35,OD=12

 2
90334-06017

RN5#..MTM

L=11,OD=6

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12195

RN5#..MTM

L=35,OD=12

 2
90334-06017

RN5#..MTM

L=11,OD=6

 1
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-13017

RN5#..MTM

L=12,OD=13

 2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18007

LN5#,65,RN5#,6#..MTM

 1
33116 - GASKET, MANUAL TRANSMISSION CASE
33132-20040

RN5#..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-22030

RN5#,7#..MTM..(CBR,EFI)

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-22021

RN5#,7#..MTM..(CBR,EFI)

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-31010

RN5#..MTM

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

LN5#,6#,RN5#,6#,7#..MTM..(DLX,SR5,STD)

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-20010

RN5#..MTM

 1
33157 - GASKET, TRANSMISSION CASE, NO.2
33142-20020

RN5#..MTM

 1
Common parts
90119-06043
90119-10025
91611-61035
91619-61250
93220-18020
