RN55L-KDA3W (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)RN5#..4F

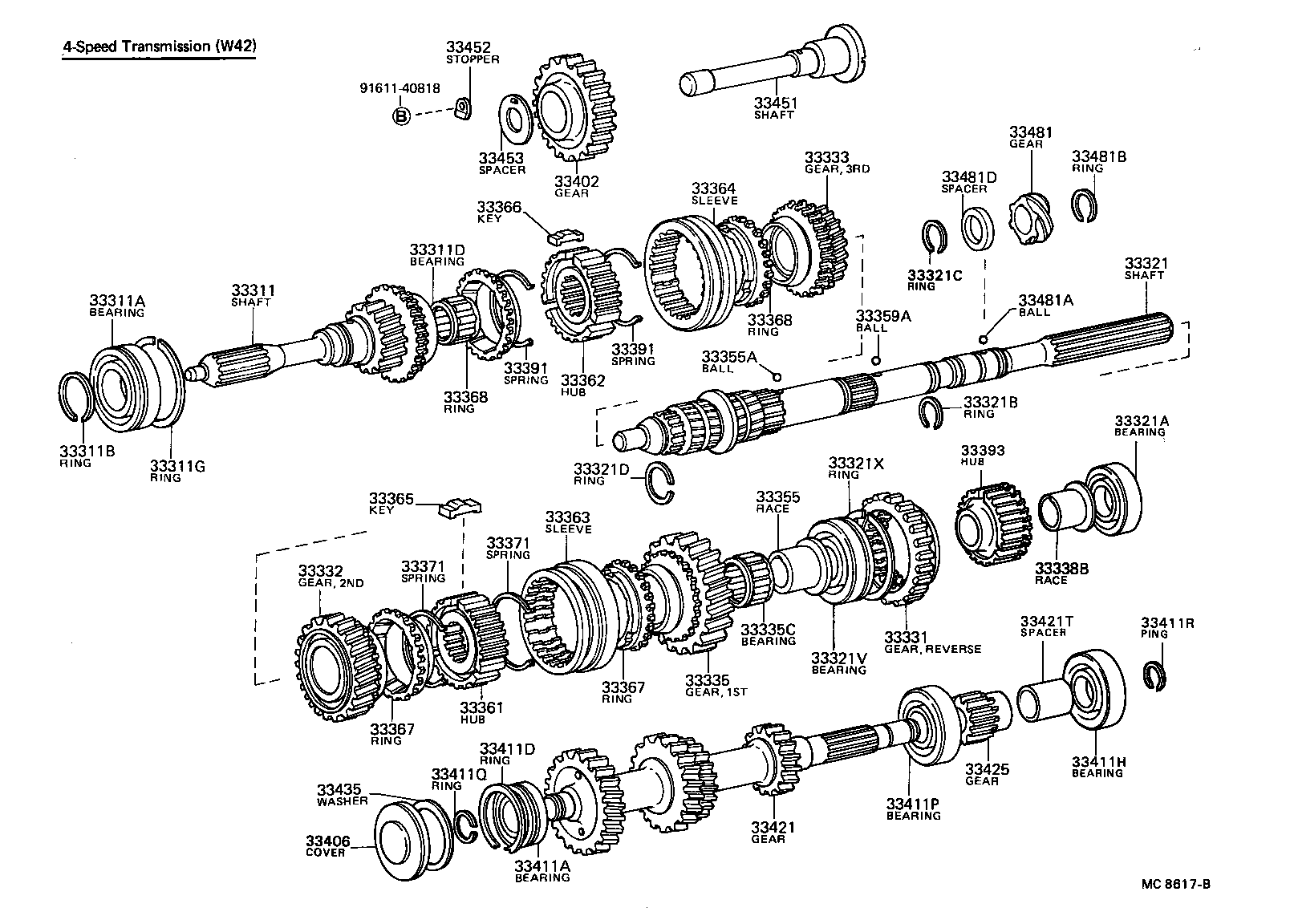

Click highlighted areas on diagram

diagram 33311 33311A 33311B 33311D 33311G 33321 33321A 33321B 33321C 33321D 33321V 33321X 33331 33332 33333 33335 33335C 33338B 33355 33355A 33359A 33361 33362 33363 33364 33365 33366 33367 33367 33368 33368 33371 33371 33391 33391 33393 33402 33406 33411A 33411D 33411H 33411P 33411Q 33411R 33421 33421T 33425 33435 33451 33452 33453 33481 33481A 33481B 33481D 9161140818
Part # Description Qty Price
33311 - SHAFT, INPUT
33301-30041

RN5#..MTM

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90363-32005

RN5#..MTM

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-30216

LN5#,65,RN5#,6#

T=2.15,MARK 2,T=2.15

 1
90520-30214

LN5#,65,RN5#,6#

T=2.05,MARK 0,T=2.05

 1
90520-30218

LN5#,65,RN5#,6#

T=2.25,MARK 4,T=2.25

 1
90520-30217

LN5#,65,RN5#,6#

T=2.20,MARK 3,T=2.20

 1
90520-30219

LN5#,65,RN5#,6#

T=2.30,MARK 5,T=2.30

 1
90520-30215

LN5#,65,RN5#,6#

T=2.10,MARK 1,T=2.10

 1
33311D - BEARING, INPUT SHAFT
90364-19043

RN5#..MTM

 1
33311G - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-71221

RN5#..MTM

 1
33321 - SHAFT, OUTPUT
33321-20071

RN5#..MTM

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
97104-06228

RN5#..MTM

 1
33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
90520-25270

RN5#..MTM

T=2.43-2.48,MARK 10,T=2.43

 1
90520-25271

RN5#..MTM

T=2.49-2.54,MARK 11,T=2.49

 1
90520-25277

RN5#..MTM

T=1.94

 1
90520-25272

RN5#..MTM

T=2.55-2.60,MARK 12,T=2.55

 1
90520-25278

RN5#..MTM

T=2.00

 1
90520-25284

RN5#..MTM

T=2.31-2.36,MARK 8,T=2.36

 1
90520-25280

RN5#..MTM

T=2.12

 1
90520-25273

RN5#..MTM

T=2.61-2.66,MARK 13,T=2.61

 1
90520-25279

RN5#..MTM

T=2.06

 1
90520-25285

RN5#..MTM

T=2.37-2.42,MARK 9,T=2.37

 1
90520-25283

RN5#..MTM

T=2.30

 1
90520-25281

RN5#..MTM

T=2.18

 1
90520-25282

RN5#..MTM

T=2.24

 1
33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
90520-26179

RN5#..MTM

T=1.50,OD=31.3

 1
33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET)
90520-30214

RN5#..MTM

T=2.05,MARK 0,T=2.05

 1
90520-30238

RN5#..MTM

T=2.00

 1
90520-30216

RN5#..MTM

T=2.15,MARK 2,T=2.15

 1
90520-30215

RN5#..MTM

T=2.10,MARK 1,T=2.10

 1
90520-30217

RN5#..MTM

T=2.20,MARK 3,T=2.20

 1
90520-30218

RN5#..MTM

T=2.25,MARK 4,T=2.25

 1
33321V - BEARING (FOR OUTPUT SHAFT CENTER)
90363-32005

RN5#..MTM

 1
33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
90520-71221

RN5#..MTM

T=1.65,ID=71.1

 1
33331 - GEAR, REVERSE
33331-20031

RN5#..MTM

 1
33332 - GEAR, 2ND
33033-35030

RN5#..MTM

 1
33333 - GEAR, 3RD
33034-20020

RN5#..MTM

 1
33335 - GEAR, 1ST
33032-20040

RN5#..MTM

 1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
90364-43004

RN5#..MTM

 1
33338B - BUSH, 5TH GEAR
33338-14021

RN5#..4F

 1
33355 - RACE, 1ST GEAR BEARING INNER
33355-31010

RN5#..MTM

 1
33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
90360-06004

LN5#,65,RN5#,6#..MTM

 1
33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK
90360-06004

LN56,65,RN5#,6#..MTM

 1
33361 - HUB, TRANSMISSION CLUTCH, NO.1
33361-20030

RN5#..MTM

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33362-31011

RN5#..MTM

 1
33363 - SLEEVE, TRANSMISSION HUB, NO.1
33363-20030

RN5#..MTM

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
33364-20013

RN5#..MTM

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33366-20011

RN5#..MTM

 3
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33366-20011

RN5#..MTM

 3
33367 - RING, SYNCHRONIZER, NO.1
33368-20012

LN5#,65,RN5#,6#..MTM

 2
33367 - RING, SYNCHRONIZER, NO.1
33368-20012

LN5#,65,RN5#,6#..MTM

 2
33368 - RING, SYNCHRONIZER, NO.2
33368-20012

RN5#..MTM

 2
33368 - RING, SYNCHRONIZER, NO.2
33368-20012

RN5#..MTM

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-14031

LN5#,65,RN5#,6#..MTM

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-14031

LN5#,65,RN5#,6#..MTM

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-14031

RN5#..MTM

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-14031

RN5#..MTM

 2
33393 - HUB, TRANSMISSION CLUTCH, NO.3
33393-30020

RN5#..MTM

 1
33402 - GEAR SUB-ASSY, REVERSE IDLER
33402-20031

RN5#..MTM

 1
33406 - COVER SUB-ASSY, COUNTER SHAFT
33406-31010

RN5#..MTM

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90365-25002

RN5#..MTM

 1
33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1
90520-49222

LN5#,65,RN5#,6#..MTM

T=1.07,OD=55.6

 1
33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR)
90363-20075

RN5#..MTM

 1
33411P - BEARING, COUNTER SHAFT CENTER
90365-28015

RN5#..MTM

 1
33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2
90520-23223

RN5#..MTM

 1
33411R - RING, SNAP, COUNTER GEAR REAR BEARING
90520-18264

RN5#..MTM

T=2.0

 1
90520-18266

RN5#..MTM

T=1.60-1.65,T=1.6

 1
90520-18275

RN5#..MTM

T=1.4

 1
90520-18265

RN5#..MTM

T=1.8

 1
33421 - GEAR, COUNTER
33421-20060

RN5#..MTM

 1
33421T - SPACER, COUNTER GEAR
90560-23006

RN5#..4F

 1
33425 - GEAR, COUNTERSHAFT REVERSE
33425-20030

RN5#..MTM

 1
33435 - WASHER, COUNTER GEAR CASE SIDE THRUST
90560-38331

RN5#..MTM

T=2.00

 1
90560-38333

RN5#..MTM

T=2.30

 1
90560-38332

RN5#..MTM

T=2.15

 1
90560-38334

RN5#..MTM

T=2.45

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-14020

RN5#..MTM

 1
33452 - STOPPER, REVERSE IDLER GEAR SHAFT
33452-14010

RN5#..MTM

 1
33453 - SPACER, REVERSE IDLER GEAR SHAFT
33453-14010

RN5#..MTM

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-22010

RN55..(HLF,HVY)..CBR

N=6,MARK 6X18-20,W/ER78-14 TIRE

 1
33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
90360-06004

LN5#,RN5#..MTM

 1
33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
90520-26179

LN5#,RN5#..MTM

T=1.50,OD=31.3

 2
33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR)
90560-28339

RN5#..MTM

 1
Common parts
91611-40818
