RN50L-SRA (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1987
Engine 22R
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )RN5#,70..HLF..CBR,EFI ; (8711- )VZN6#

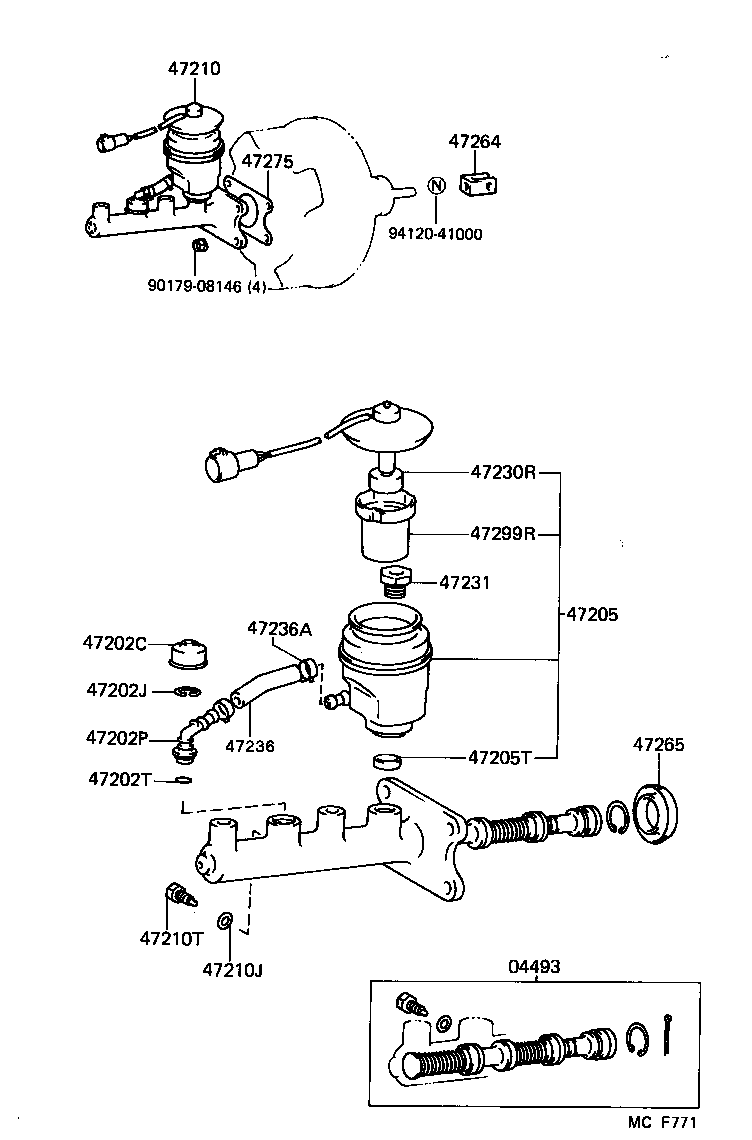

Click highlighted areas on diagram

diagram 04493 47202C 47202J 47202P 47202T 47205 47205T 47210 47210J 47210T 47230R 47231 47236 47236A 47264 47265 47275 47299R 9017908146 9412041000
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-35120

LN5#,RN5#..HLF

 1
47202C - BOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)
47265-20060

LN5#,6#,RN5#,6#,7#,VZN6#

 1
47202J - RING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)
96151-02000

LN5#,6#,RN5#,6#,7#,VZN6#

 1
47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
90407-10004

LN5#,6#,RN5#,6#,7#,VZN6#

 1
47202T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)
90301-14001

LN5#,6#,RN5#,6#,7#,VZN6#

 1
47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)
47202-35140

LN5#,RN5#..HLF

 1
47202-35170

RN5#,70..HLF..(CBR,EFI)

 1
47205T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2)
90562-18151

LN5#,6#,RN5#,6#,7#,VZN6#

 1
47210 - CYLINDER ASSY, MASTER, W/O BOOSTER
47201-35540

RN5#,70..HLF..(CBR,EFI)

 1
47201-35330

LN5#,RN5#..HLF

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

LN5#,6#,RN5#,6#,7#,VZN6#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06008

LN5#,6#,RN5#,6#,7#,VZN6#

 1
47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)
84460-35010

LN5#,6#,RN5#,6#,7#,VZN6#

 1
47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET
47231-20010

LN5#,6#,RN5#,6#,7#,VZN6#

 1
47236 - TUBE, RESERVOIR BRAKE
47234-20010

LN5#,RN5#..HLF

 1
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16001

LN5#,6#,RN5#,6#,7#,VZN6#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-22010

LN5#,6#,RN5#,6#,7#

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

LN5#,6#,RN5#,6#,7#,VZN6#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-22010

LN5#,RN5#

 1
47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR
47299-14010

LN5#,6#,RN5#,6#,7#,VZN6#

 1
Common parts
90179-08146
94120-41000
