RN50L-SRA (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1987
Engine 22R
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )4HC

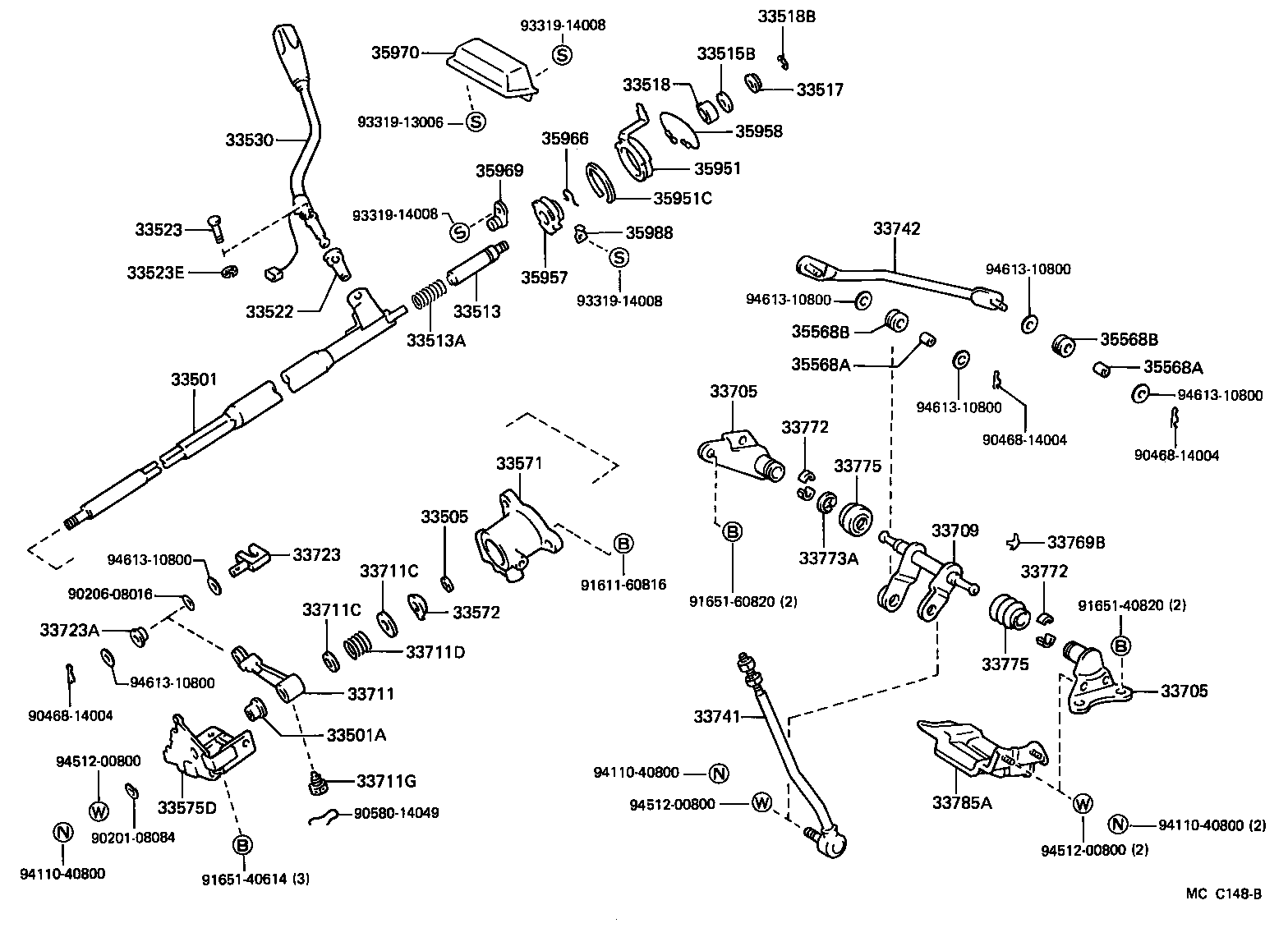

Click highlighted areas on diagram

diagram 33501 33501A 33505 33513 33513A 33515B 33517 33518 33518B 33522 33523 33523E 33530 33571 33572 33575D 33705 33705 33709 33711 33711C 33711C 33711D 33711G 33723 33723A 33741 33742 33769B 33772 33772 33773A 33775 33775 33785A 35568A 35568A 35568B 35568B 35951 35951C 35957 35958 35966 35969 35970 35988 9020108084 9020608016 9046814004 9046814004 9046814004 9058014049 9161160816 9165140614 9165140820 9165160820 9331913006 9331914008 9331914008 9331914008 9411040800 9411040800 9411040800 9451200800 9451200800 9451200800 9461310800 9461310800 9461310800 9461310800 9461310800 9461310800
Part # Description Qty Price
33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33501-35190

RN5#,7#..4HC

 1
33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER
33513-35080

RN5#,7#..4HC

 1
33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
90501-14784

RN5#,7#..4HC

 1
35957 - PULLEY, POSITION INDICATOR DRIVE
35957-35010

RN5#,7#..4HC

 1
35988 - RETAINER, DRIVE CORD
35988-35010

RN5#,7#..4HC

 1
Common parts
90201-08084
90206-08016
90468-14004
90580-14049
91611-60816
91651-40614
91651-40820
91651-60820
93319-13006
93319-14008
94110-40800
94512-00800
94613-10800
