RN50L-MSEA3 (1983)
Toyota 4-Runner Truck

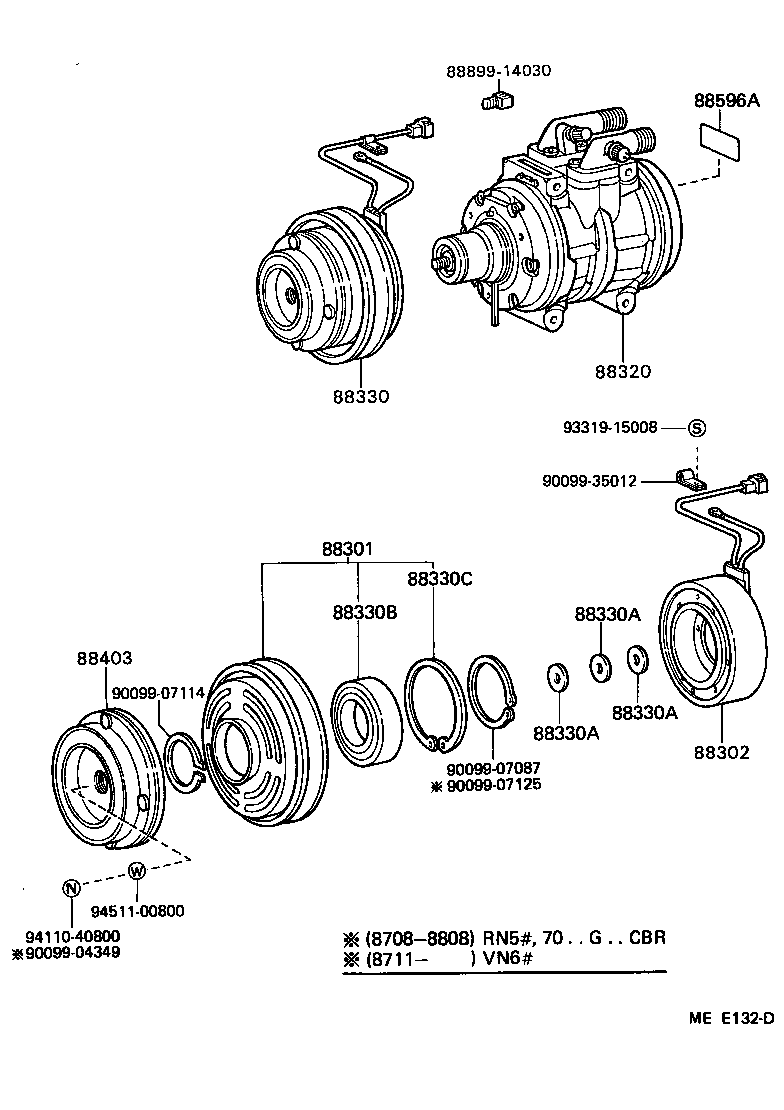

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14070 |
RN5#,6#,7#..T1 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14060 |
RN5#,6#,7#..T1 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-35120 |
RN5#,6#..T1 49 STATES |
1 | ||
| 88320-35130 |
RN50..USA *CAL |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14150 |
RN5#,6#,7#..T1 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90099-01108 |
LN56,6#,RN5#,6#,7# T=0.5 |
1 | ||
| 90099-01351 |
LN56,6#,RN5#,6#,7# T=0.2 |
1 | ||
| 90099-01350 |
LN56,6#,RN5#,6#,7# T=0.1 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90099-01108 |
LN56,6#,RN5#,6#,7# T=0.5 |
1 | ||
| 90099-01351 |
LN56,6#,RN5#,6#,7# T=0.2 |
1 | ||
| 90099-01350 |
LN56,6#,RN5#,6#,7# T=0.1 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90099-01108 |
LN56,6#,RN5#,6#,7# T=0.5 |
1 | ||
| 90099-01351 |
LN56,6#,RN5#,6#,7# T=0.2 |
1 | ||
| 90099-01350 |
LN56,6#,RN5#,6#,7# T=0.1 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10135 |
RN5#,6#,7#..T1 |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
RN5#,6#,7#..T1 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14040 |
RN5#,6#,7#..T1 |
1 | ||
| Common parts | ||||
| 88899-14030 | ||||
| 90099-04349 | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90099-35012 | ||||
| 93319-15008 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

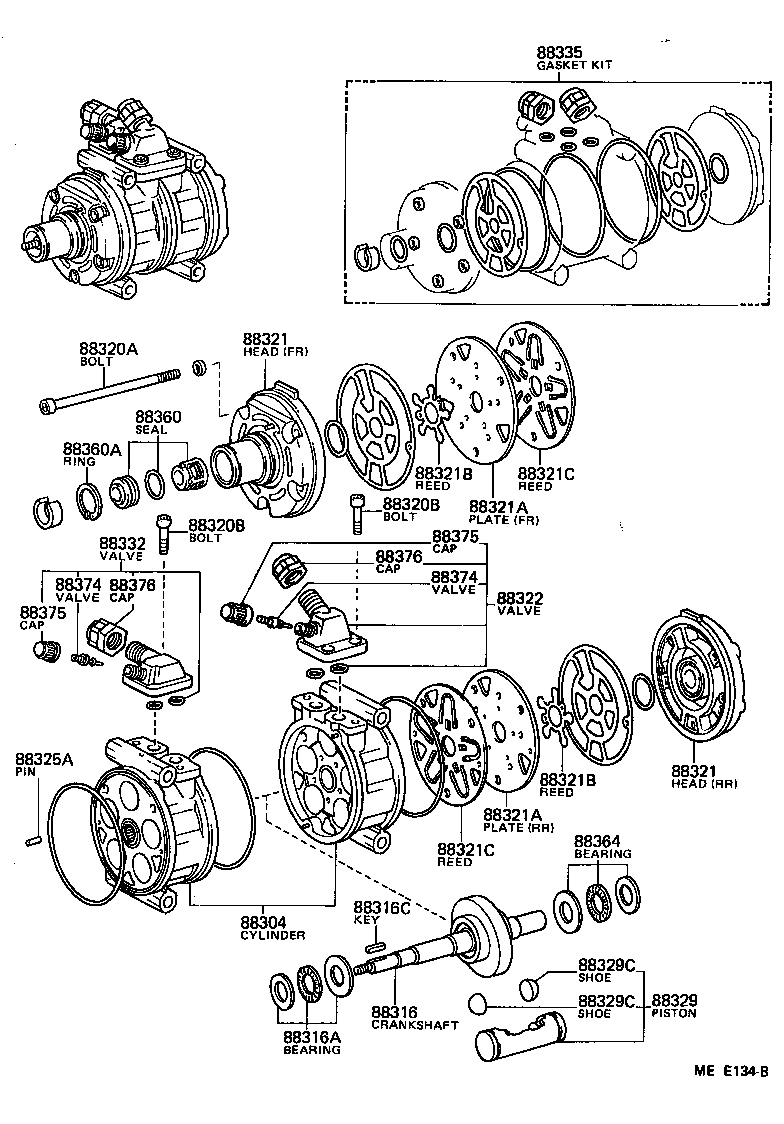

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14041 |
LN56,6#,RN5#,6#,7#..T1 |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-14021 |
LN56,6#,RN5#,6#,7#..T1 |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-14010 |
LN56,6#,RN5#,6#,7# |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13024 |
LN56,6#,RN5#,6#,7# |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04968 |
LN56,6#,RN5#,6#,7#..T1 |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
LN56,6#,RN5#,6#,7# |
4 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
LN56,6#,RN5#,6#,7# |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
LN56,6#,RN5#,6#,7# FR |
1 | ||
| 88322-14011 |
LN56,6#,RN5#,6#,7# RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
LN56,6#,RN5#,6#,7# FR |
1 | ||
| 88322-14011 |
LN56,6#,RN5#,6#,7# RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
LN56,6#,RN5#,6#,7# RR |
1 | ||
| 88341-14010 |
LN56,6#,RN5#,6#,7# FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
LN56,6#,RN5#,6#,7# RR |
1 | ||
| 88341-14010 |
LN56,6#,RN5#,6#,7# FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
LN56,6#,RN5#,6#,7# |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
LN56,6#,RN5#,6#,7# |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
LN56,6#,RN5#,6#,7# |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
LN56,6#,RN5#,6#,7# |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-35020 |
LN56,6#,RN5#,6#,7# |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
LN56,6#,RN5#,6#,7#,VZN6# |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12050 |
LN56,6#,RN5#,6#,7#..T1 |
5 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
LN56,6#,RN5#,6#,7# |
10 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
LN56,6#,RN5#,6#,7# |
10 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-14130 |
RN5#,6#..T1 49 STATES |
1 | ||
| 88372-35050 |
RN50..USA *CAL |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 04881-10010 |
LN56,6#,RN5#,6#,7# |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-40010 |
LN56,65,RN5#,6# |
1 | ||
| 88360-14020 |
LN56,65,RN5#,6# |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
LN56,65,RN5#,6#,7#,VZN6# |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-14010 |
LN56,6#,RN5#,6#,7# |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LN56,6#,RN5#,6#,7# |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LN56,6#,RN5#,6#,7# |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LN56,6#,RN5#,6#,7# |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LN56,6#,RN5#,6#,7# |
2 | ||
