RN50L-MSEA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

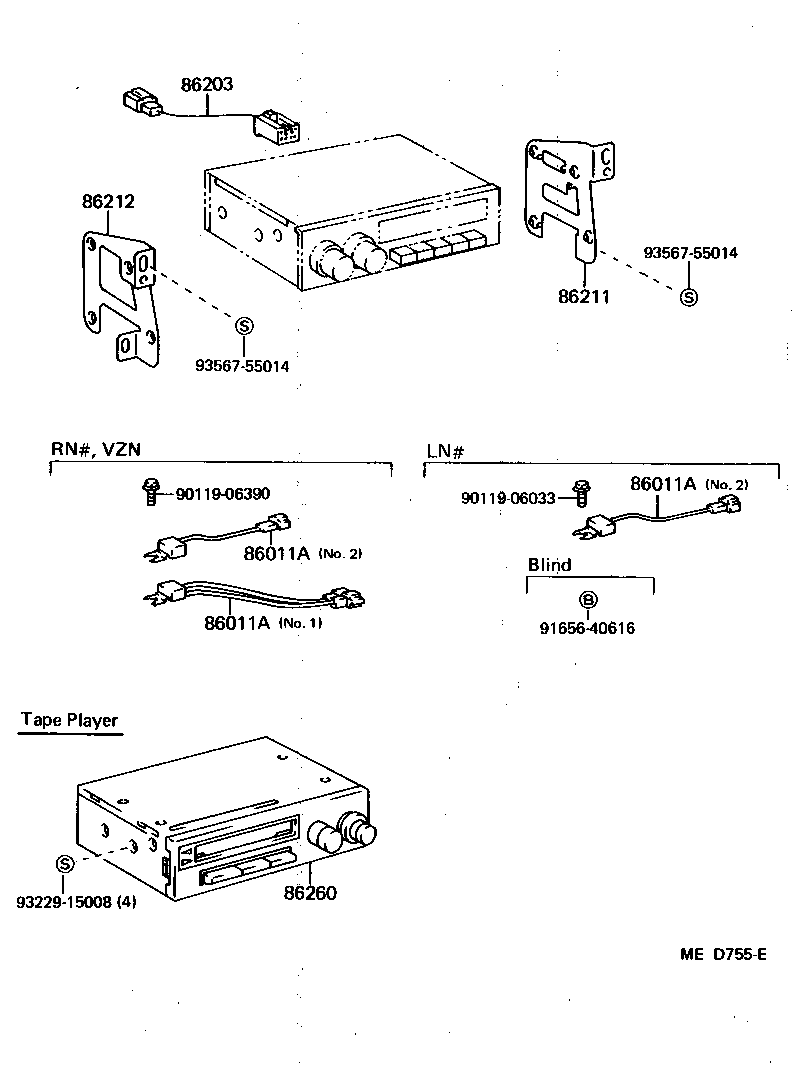

diagram 86011A 86011A 86011A 86203 86211 86212 86260 9011906033 9011906390 9165640616 9322915008 9356755014 9356755014
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04041

RN5#,6#,7#,VZN6#

NO.1

 1
86011A - CONDENSER, RADIO SETTING
90980-04041

RN5#,6#,7#,VZN6#

NO.1

 1
86011A - CONDENSER, RADIO SETTING
90980-04041

RN5#,6#,7#,VZN6#

NO.1

 1
86211 - BRACKET, RADIO, NO.1
86211-89109

LN5#,6#,RN5#,6#,7#,VZN6#

 1
86212 - BRACKET, RADIO, NO.2
86212-89104

LN5#,6#,RN5#,6#,7#,VZN6#

 1
86260 - TAPE PLAYER ASSY
86260-19055

LN5#,6#,RN5#,6#,7#

 1
Common parts
90119-06033
90119-06390
91656-40616
93229-15008
93567-55014

(8308- )

Click highlighted areas on diagram

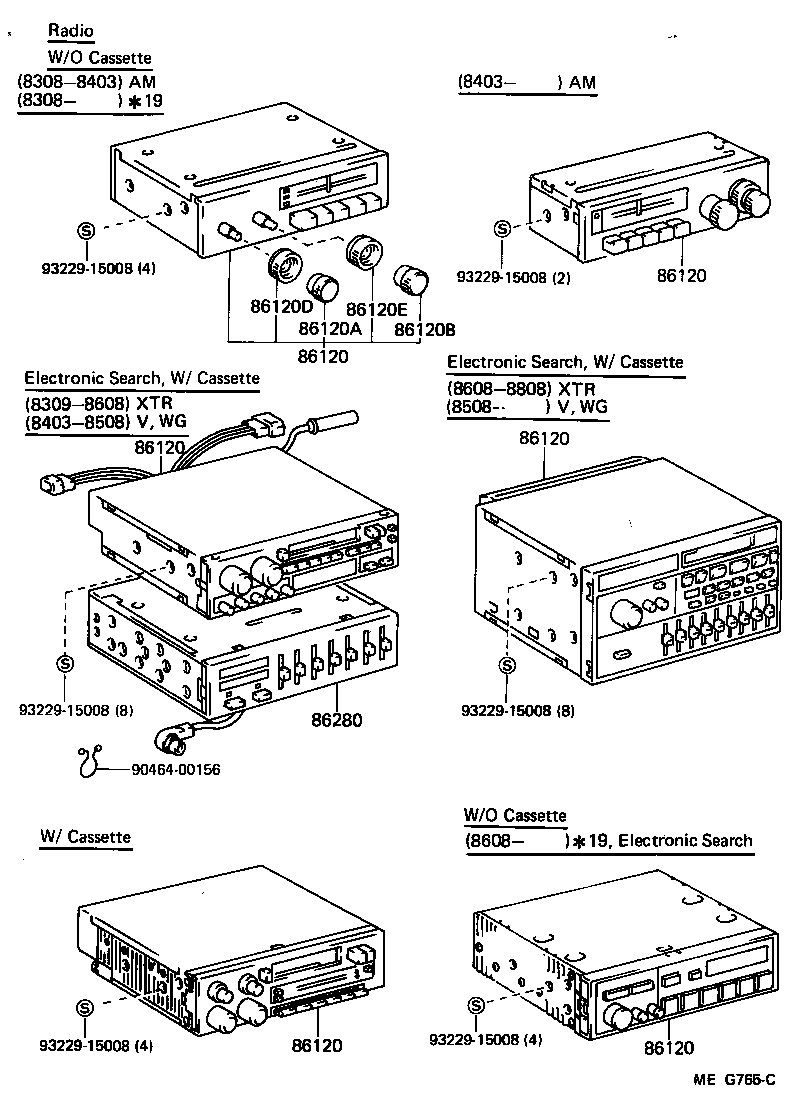

diagram 86120 86120 86120 86120 86120 86120 86120A 86120B 86120D 86120E 86280 9046400156 9322915008 9322915008 9322915008 9322915008 9322915008 9322915008
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-89120

RN60..IV;LN5#,65,RN5#,65;RN60..(DLX,STD)..CBU

*19

 1
86120-89122

RN60..CND;RN60..SR5..IV;LN56,65,RN5#,65..DLX,SR5

*36

 1
86120-17050

LN5#,65,RN5#,6#

*19

 1
86120-17060

LN56,65,RN5#,6#..DLX,SR5,SRT

*36

 1
86120 - RECEIVER ASSY, RADIO
86120-89120

RN60..IV;LN5#,65,RN5#,65;RN60..(DLX,STD)..CBU

*19

 1
86120-89122

RN60..CND;RN60..SR5..IV;LN56,65,RN5#,65..DLX,SR5

*36

 1
86120-17050

LN5#,65,RN5#,6#

*19

 1
86120-17060

LN56,65,RN5#,6#..DLX,SR5,SRT

*36

 1
86120 - RECEIVER ASSY, RADIO
86120-89120

RN60..IV;LN5#,65,RN5#,65;RN60..(DLX,STD)..CBU

*19

 1
86120-89122

RN60..CND;RN60..SR5..IV;LN56,65,RN5#,65..DLX,SR5

*36

 1
86120-17050

LN5#,65,RN5#,6#

*19

 1
86120-17060

LN56,65,RN5#,6#..DLX,SR5,SRT

*36

 1
86120 - RECEIVER ASSY, RADIO
86120-89120

RN60..IV;LN5#,65,RN5#,65;RN60..(DLX,STD)..CBU

*19

 1
86120-89122

RN60..CND;RN60..SR5..IV;LN56,65,RN5#,65..DLX,SR5

*36

 1
86120-17050

LN5#,65,RN5#,6#

*19

 1
86120-17060

LN56,65,RN5#,6#..DLX,SR5,SRT

*36

 1
86120 - RECEIVER ASSY, RADIO
86120-89120

RN60..IV;LN5#,65,RN5#,65;RN60..(DLX,STD)..CBU

*19

 1
86120-89122

RN60..CND;RN60..SR5..IV;LN56,65,RN5#,65..DLX,SR5

*36

 1
86120-17050

LN5#,65,RN5#,6#

*19

 1
86120-17060

LN56,65,RN5#,6#..DLX,SR5,SRT

*36

 1
86120 - RECEIVER ASSY, RADIO
86120-17050

LN5#,65,RN5#,6#

*19

 1
86120-89120

RN60..IV;LN5#,65,RN5#,65;RN60..(DLX,STD)..CBU

*19

 1
86120-89122

RN60..CND;RN60..SR5..IV;LN56,65,RN5#,65..DLX,SR5

*36

 1
86120-17060

LN56,65,RN5#,6#..DLX,SR5,SRT

*36

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14130

LN5#,65,RN5#,6#

*19

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-14070

LN5#,65,RN5#,6#

*19

 1
86120D - KNOB, RADIO RECEIVER TONE
86128-14030

LN5#,65,RN5#,6#

*19

 1
86120E - KNOB, RADIO RECEIVER BALANCE
86128-14030

LN5#,65,RN5#,6#

*19

 1
Common parts
90464-00156
93229-15008
