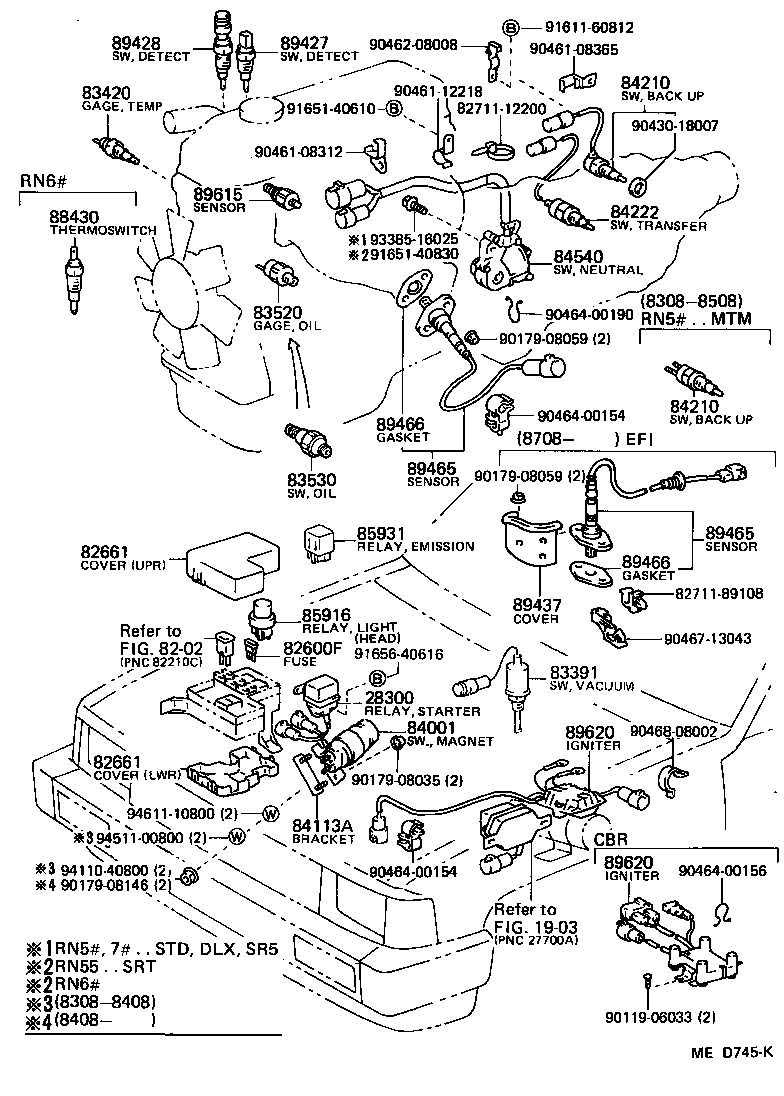

RN50L-MSEA (1983)
Toyota 4-Runner Truck
(8308- )LN5#,RN5#,6#,7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
LN5#,6#,RN5#,6#,7#,VZN6# 15A,15A |
13 | ||
| 90982-09004 |
LN5#,6#,RN5#,6#,7#,VZN6# 20A,YELLOW,20A |
1 | ||
| 90982-09002 |
LN5#,6#,RN5#,6#,7#,VZN6# 10A,10A |
6 | ||
| 90982-09005 |
LN5#,6#,RN5#,6#,7#,VZN6# 7.5A,7.5A |
7 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-89101 |
LN5#,65,RN5#,6# COWL SIDE |
1 | ||
| 82661-89103 |
LN5#,6#,RN5#,6#,7# ENGINE ROOM LWR |
1 | ||
| 82661-89102 |
LN5#,65,RN5#,6# ENGINE ROOM UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-89101 |
LN5#,65,RN5#,6# COWL SIDE |
1 | ||
| 82661-89103 |
LN5#,6#,RN5#,6#,7# ENGINE ROOM LWR |
1 | ||
| 82661-89102 |
LN5#,65,RN5#,6# ENGINE ROOM UPR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14022 |
RN5#,6#..SDT,SR5,SRT DENSO |
1 | ||
| 83520-55011 |
RN5#,6#..SR5 YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
RN5#..MTM |
1 | ||
| 84210-14010 |
RN50..4F;RN50..EFI;RN55..XTR..W..CND;RN55..XTR..5F..IV;RN55..RCB..5F..HLF;RN55..XTR..W..USA..EFI..CBU |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
RN5#..MTM |
1 | ||
| 84210-14010 |
RN50..4F;RN50..EFI;RN55..XTR..W..CND;RN55..XTR..5F..IV;RN55..RCB..5F..HLF;RN55..XTR..W..USA..EFI..CBU |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LN5#,6#,RN5#,6#,7#,VZN6# TAIL LAMP RELAY |
1 | ||
| 90987-04002 |
LN5#,6#,RN5#,6#,7# HEADLAMP RELAY |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19055 |
RN5#,6#,75..EFI |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19055 |
RN5#,6#,75..EFI |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
RN5#,6#,75..EFI,TBO |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
RN5#,6#,75..EFI,TBO |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-35150 |
RN5#..EFI |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-35150 |
RN5#..EFI |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-89108 | ||||
| 90119-06033 | ||||
| 90179-08035 | ||||
| 90179-08059 | ||||
| 90179-08146 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-08365 | ||||
| 90461-12218 | ||||
| 90462-08008 | ||||
| 90464-00154 | ||||
| 90464-00156 | ||||
| 90464-00190 | ||||
| 90467-13043 | ||||
| 90468-08002 | ||||
| 91611-60812 | ||||
| 91651-40610 | ||||
| 91651-40830 | ||||
| 91656-40616 | ||||
| 93385-16025 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 8202 | ||||

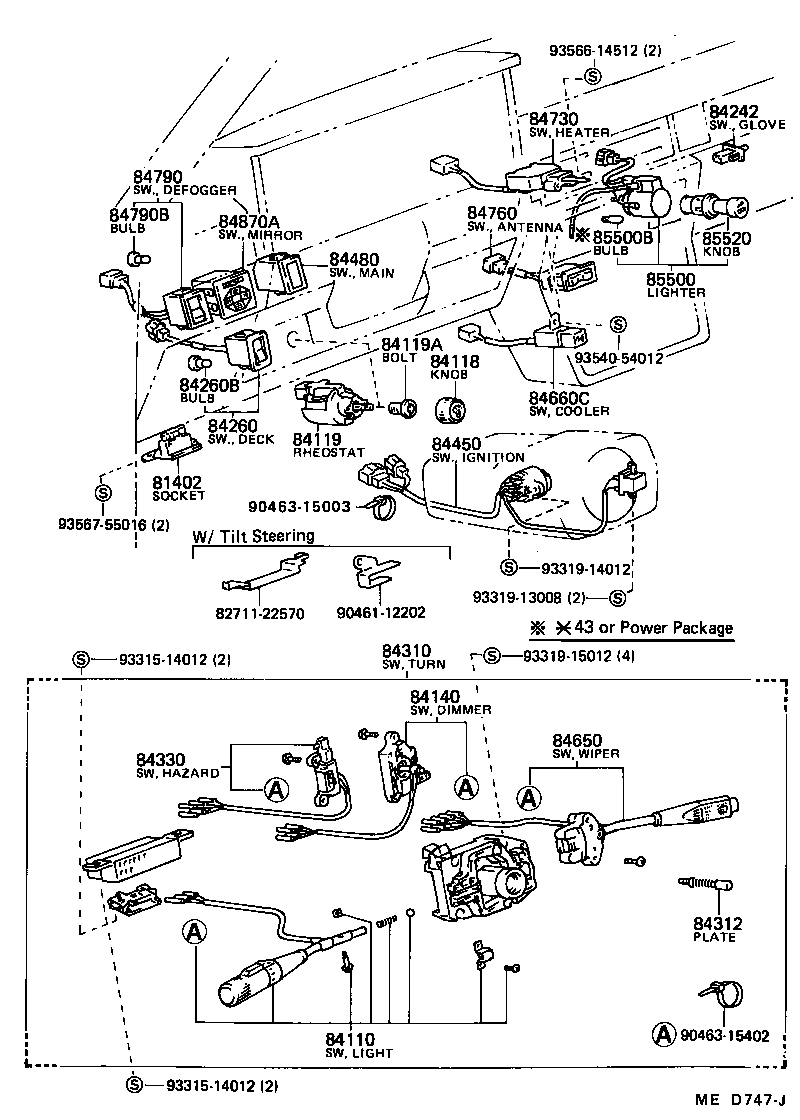

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29325 |
RN5#,6#..(SR5,SRT)..HLF |
1 | ||
| 84112-29335 |
RN5#..HLF..(EFI,TBO) W/TILT STEERING |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12030 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-89104 |
RN61..DLX,SDT,SR5,STD;LN5#,6#,RN5#,60,65,66,7# |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90984-01007 |
RN61..DLX,SDT,SR5,STD;LN5#,6#,RN5#,60,65,66,7# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29165 |
RN5#,6#..(SR5,SRT)..HLF |
1 | ||
| 84140-29175 |
RN5#..HLF..(EFI,TBO) W/TILT STEERING |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35190 |
RN5#..HLF..(EFI,TBO) W/TILT STEERING |
1 | ||
| 84310-28150 |
RN5#,6#..(SR5,SRT)..(EFI,TBO) W/TILT STEERING & *CRC |
1 | ||
| 84310-28100 |
RN5#,6#..(SR5,SRT)..HLF |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29165 |
RN5#..SR5,SRT W/TILT STEERING |
1 | ||
| 84332-29155 |
RN5#,6#,VZN6#..(SR5,SRT)..HLF |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-35060 |
LN5#,6#,RN5#,6#,7#,VZN6#..4F,4FC,5F |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29635 |
RN5#,6#..(SR5,SRT)..HLF |
1 | ||
| 84652-29775 |
RN5#,6#..(SR5,SRT)..(EFI,TBO) W/TILT STEERING & *CRC |
1 | ||
| 84652-39325 |
RN5#..HLF..(EFI,TBO) W/TILT STEERING |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-89102 |
LN56,6#,RN5#,6#,7# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-89108 |
LN5#,6#,RN5#,6#,7# W/FR *HEA OR *BV |
1 | ||
| 84732-89109 |
LN56,6#,RN5#,6#,7# FR *HEA & COOLER,*BV & COOLER |
1 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-89101 |
RN5#,6#,VZN6#..SR5,SRT |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16060 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-14030 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| Common parts | ||||
| 82711-22570 | ||||
| 90461-12202 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93540-54012 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||

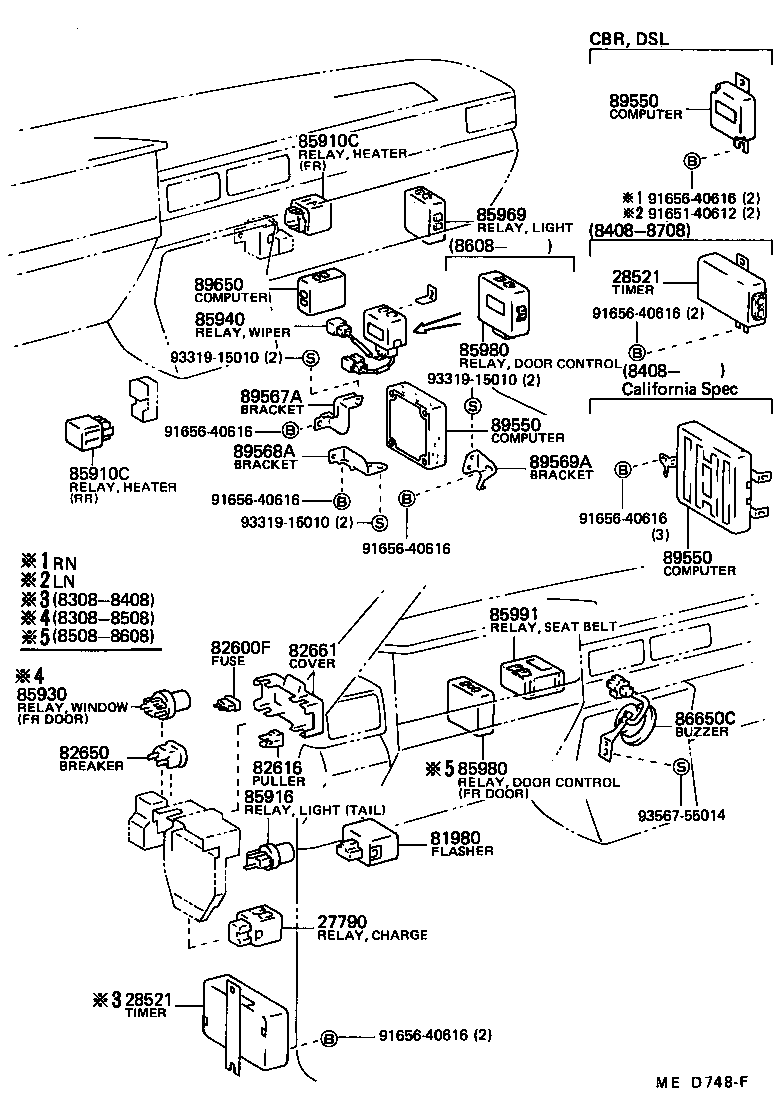

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-13010 |
22R,2L..LN5#,65,RN5#,6# |
1 | ||
| 27790-70010 |
22REC..RN5# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
LN5#,6#,RN5#,6#,7# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
LN5#,6#,RN5#,6#,7#,VZN6# 15A,15A |
13 | ||
| 90982-09004 |
LN5#,6#,RN5#,6#,7#,VZN6# 20A,YELLOW,20A |
1 | ||
| 90982-09002 |
LN5#,6#,RN5#,6#,7#,VZN6# 10A,10A |
6 | ||
| 90982-09005 |
LN5#,6#,RN5#,6#,7#,VZN6# 7.5A,7.5A |
7 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LN5#,65,RN5#,6# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
RN5#,6#..(SR5,SRT)..HLF 20A |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-89101 |
LN5#,65,RN5#,6# COWL SIDE |
1 | ||
| 82661-89103 |
LN5#,6#,RN5#,6#,7# ENGINE ROOM LWR |
1 | ||
| 82661-89102 |
LN5#,65,RN5#,6# ENGINE ROOM UPR |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
LN5#,6#,RN5#,6#,7#,VZN6# FR HEATER |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
LN5#,6#,RN5#,6#,7#,VZN6# FR HEATER |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LN5#,6#,RN5#,6#,7#,VZN6# TAIL LAMP RELAY |
1 | ||
| 90987-04002 |
LN5#,6#,RN5#,6#,7# HEADLAMP RELAY |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
RN5#,6#..SR5,SRT FR DOOR |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-89103 |
RN5#,6#..(SR5,SRT)..HLF |
1 | ||
| 85940-89102 |
RN50,75..W..EFI;RN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV VARIABLE TYPE |
1 | ||
| 85991 - RELAY, SEAT BELT WARNING | ||||
| 85991-89102 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93319-15010 | ||||
| 93567-55014 | ||||
(8403- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39455 |
LN51,RN50 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
LN5#,6#,RN5#,6#,7#,VZN6# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
LN5#,6#,RN5#,6#,7#,VZN6# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-20030 |
RN5#..EFI W/*CRC |
1 | ||
| 84340-32010 |
LN5#,65,RN5#,6# |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-35010 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-8910104 |
RN5#,6#..SR5,SRT FRONT DOOR,BLUE,BLUE,TRIM8# |
1 | ||
| 84810-8910103 |
RN5#,6#..SR5,SRT FRONT DOOR,GRAY,GRAY,TRIM1# |
1 | ||
| 84810-8910106 |
RN5#,6#..SR5,SRT FRONT DOOR,BROWN,BROWN,TRIM4# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-8910104 |
RN5#,6#..SR5,SRT FRONT DOOR,BLUE,BLUE,TRIM8# |
1 | ||
| 84810-8910103 |
RN5#,6#..SR5,SRT FRONT DOOR,GRAY,GRAY,TRIM1# |
1 | ||
| 84810-8910106 |
RN5#,6#..SR5,SRT FRONT DOOR,BROWN,BROWN,TRIM4# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-8910104 |
RN5#,6#..SR5,SRT FRONT DOOR,BLUE,BLUE,TRIM8# |
1 | ||
| 84810-8910103 |
RN5#,6#..SR5,SRT FRONT DOOR,GRAY,GRAY,TRIM1# |
1 | ||
| 84810-8910106 |
RN5#,6#..SR5,SRT FRONT DOOR,BROWN,BROWN,TRIM4# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-8910103 |
RN5#,6#..SR5,SRT GRAY,GRAY,TRIM1# |
1 | ||
| 84820-8910104 |
RN5#,6#..SR5,SRT BLUE,BLUE,TRIM8# |
1 | ||
| 84820-8910106 |
RN5#,6#..SR5,SRT BROWN,BROWN,TRIM4# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-8910103 |
RN5#,6#..SR5,SRT GRAY,GRAY,TRIM1# |
1 | ||
| 84820-8910104 |
RN5#,6#..SR5,SRT BLUE,BLUE,TRIM8# |
1 | ||
| 84820-8910106 |
RN5#,6#..SR5,SRT BROWN,BROWN,TRIM4# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
RN5#,6#..SR5,SRT FR DOOR |
1 | ||
| Common parts | ||||
| 90159-60225 | ||||
| 90179-06026 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 93319-14010 | ||||
| 93567-55016 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8511 | ||||
