LN65L-MDXK (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1985
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8708)2L

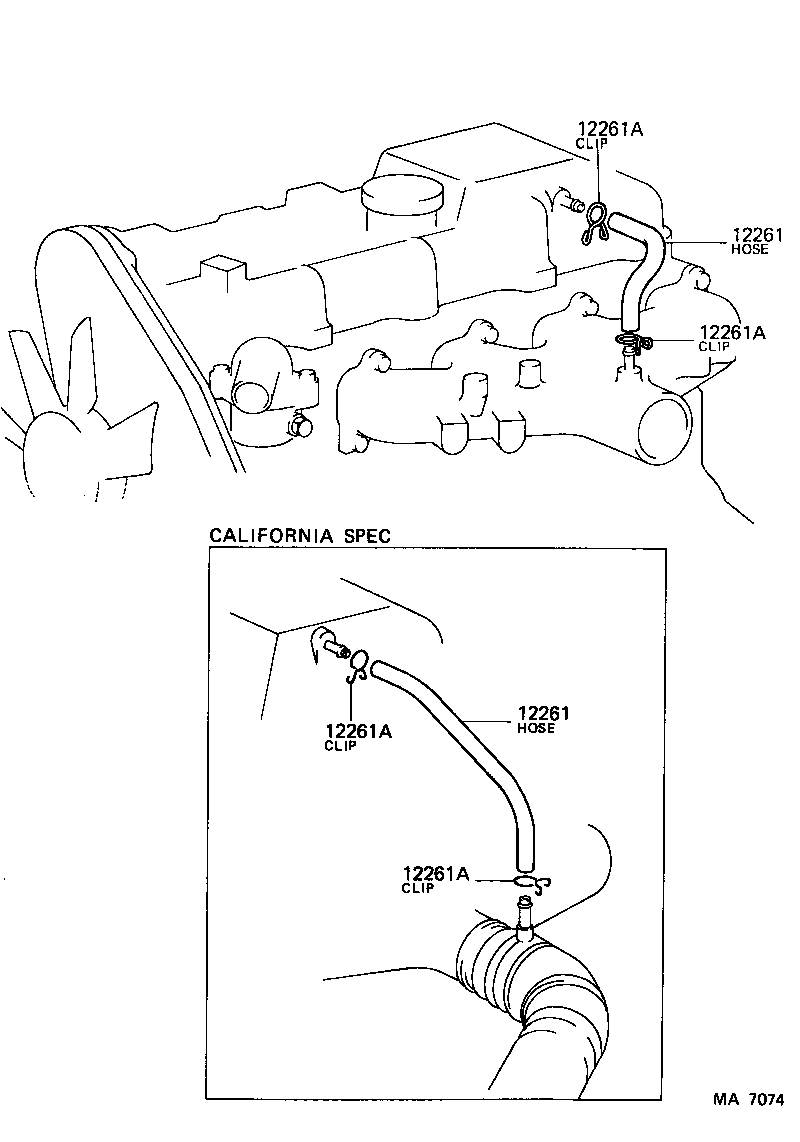

Click highlighted areas on diagram

diagram 12261 12261 12261A 12261A 12261A 12261A
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-54010

2L..LN5#,65

 1
12261 - HOSE, VENTILATION
12261-54010

2L..LN5#,65

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

2L#..LN5#,6#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

2L#..LN5#,6#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

2L#..LN5#,6#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

2L#..LN5#,6#

 2
