LN65L-MDXA (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1985
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8708)2L#

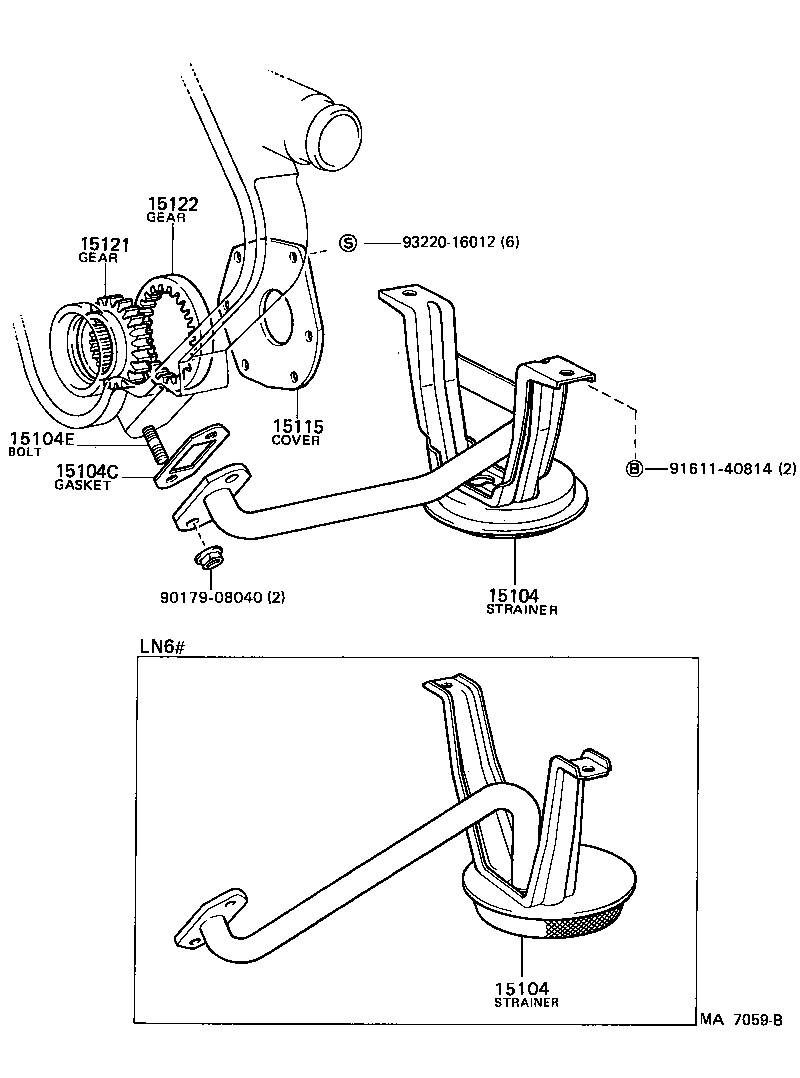

Click highlighted areas on diagram

diagram 15104 15104 15104C 15104E 15115 15121 15122 9017908040 9161140814 9322016012
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-54051

2L..LN65

 1
15104 - STRAINER SUB-ASSY, OIL
15104-54051

2L..LN65

 1
15104C - GASKET(FOR OIL STRAINER)
15149-54011

2L#..LN5#,6#

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
92122-40816

2L#..LN5#,6#

 2
15115 - COVER, OIL PUMP
15115-54011

2L#..LN5#,65

 1
15121 - GEAR, OIL PUMP DRIVE
15121-54010

2L#..LN5#,6#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-54010

2L#..LN5#,6#

 1
Common parts
90179-08040
91611-40814
93220-16012
