LN65L-MDCK (1983)

Toyota 4-Runner Truck

Production Sep 1983 - Aug 1984
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)T1

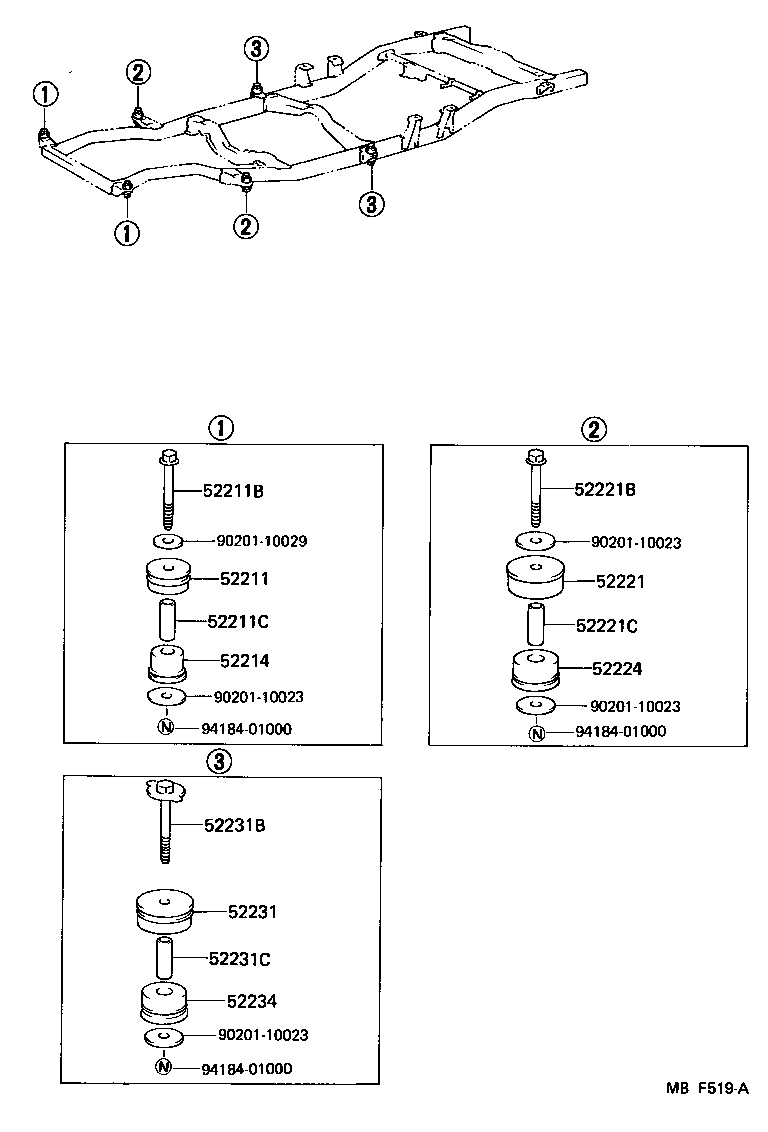

Click highlighted areas on diagram

diagram 52211 52211B 52211C 52214 52221 52221B 52221C 52224 52231 52231B 52231C 52234 9020110023 9020110023 9020110023 9020110023 9020110029 9418401000 9418401000 9418401000
Part # Description Qty Price
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-35030

LN6#,RN6#,VZN6#..HLF

 2
52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION)
90105-10019

LN5#,6#,RN5#,6#,7#,VZN6#

 2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
90440-16007

LN5#,6#,RN5#,6#,7#

 2
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52202-35030

LN6#,RN6#,VZN6#..HLF

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-35031

LN6#,RN6#,VZN6#..HLF

 2
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90105-10019

LN5#,6#,RN5#,6#,7#

 2
52221C - SPACER(FOR BODY MOUNT NO.2 CUSHION)
90440-16007

LN5#,6#,RN5#,6#,7#,VZN6#

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-35031

LN6#,RN6#,VZN6#..HLF

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52203-35031

LN6#,RN6#,VZN6#..HLF

 2
52231B - BOLT(FOR BODY MOUNT NO.3 CUSHION)
90109-10066

LN5#,6#,RN5#,6#,7#,VZN6#

 2
52231C - SPACER(FOR BODY MOUNT NO.3 CUSHION)
90440-16007

LN5#,6#,RN5#,6#,7#,VZN6#

 2
52234 - CUSHION, BODY MOUNT, NO.3 LOWER
52204-35031

LN6#,RN6#,VZN6#..HLF

 2
Common parts
90201-10023
90201-10029
94184-01000
