LN65L-MDA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8508)T1..DLX,STD ; (8508- )DLX,SDT,STD; (8608- )T1..DLX,SDT,STD

Click highlighted areas on diagram

POLYPROPYLENE

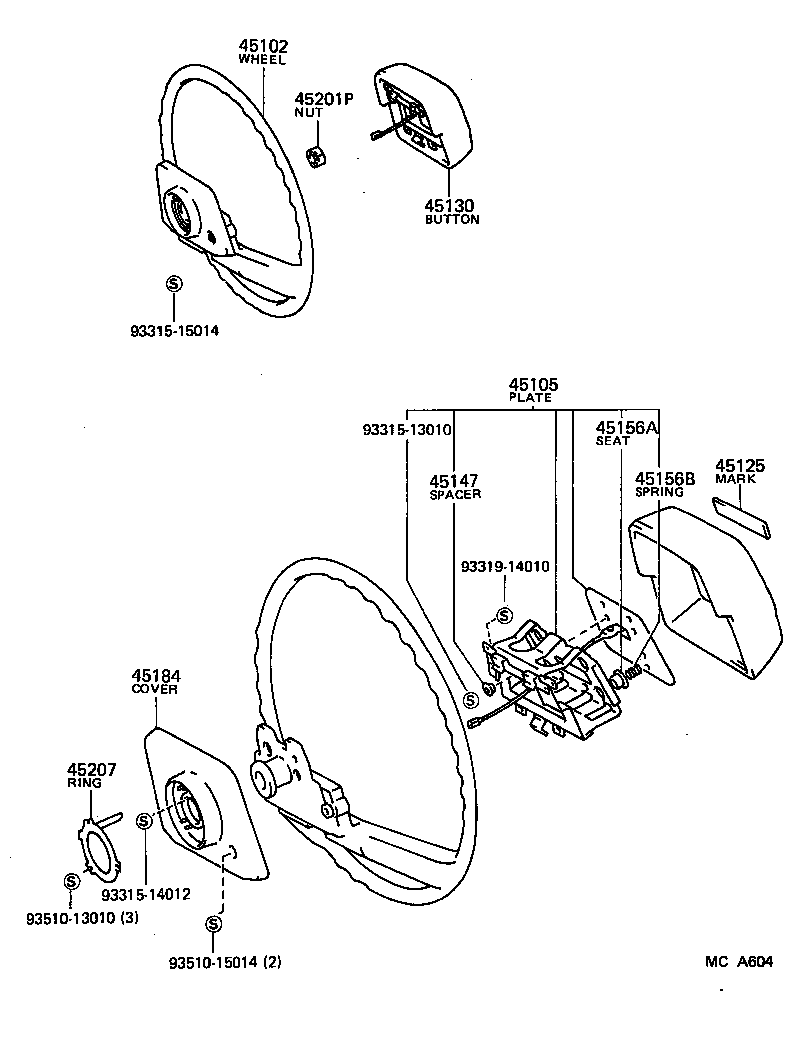

diagram 45102 45125 45129 45130 45131 45146 45201P 45207 9015950061 9331914008 9351013010 9351013010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-35230

LN5#,65,RN5#,6#..T1..(DLX,STD)

 1
45125 - MARK, STEERING WHEEL PAD
45125-35100

LN5#,65,RN5#,6#..T1..(DLX,STD)

 1
45129 - BUTTON, HORN, NO.2
45129-35050

LN5#,65,RN5#,6#..T1..(DLX,STD)

 1
45130 - BUTTON ASSY, HORN
45130-35180

LN5#,65,RN5#,6#..T1..(DLX,STD)

 1
45131 - BUTTON, HORN, NO.1
45131-35130

LN5#,65,RN5#,6#..T1..(DLX,STD)

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-35070

LN5#,65,RN5#,6#..T1..(DLX,STD)

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LN5#,6#,RN5#,6#,7#,VZN6#

 1
45207 - RING, HORN CONTACT
45176-20030

LN5#,65,RN5#,6#..T1..(DLX,STD)

 1
Common parts
90159-50061
93319-14008
93510-13010

(8308-8508)V,WG ; (8308- )SR5,SRT ; (8608-)V,WG

Click highlighted areas on diagram

URETHANE

diagram 45102 45105 45125 45130 45147 45156A 45156B 45184 45201P 45207 9331513010 9331514012 9331515014 9331914010 9351013010 9351015014
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-35230

LN5#,65,RN5#,6#..T1..(DLX,STD)

 1
45125 - MARK, STEERING WHEEL PAD
45125-35100

LN5#,65,RN5#,6#..T1..(DLX,STD)

 1
45130 - BUTTON ASSY, HORN
45130-35180

LN5#,65,RN5#,6#..T1..(DLX,STD)

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LN5#,6#,RN5#,6#,7#,VZN6#

 1
45207 - RING, HORN CONTACT
45176-20030

LN5#,65,RN5#,6#..T1..(DLX,STD)

 1
Common parts
93315-13010
93315-14012
93315-15014
93319-14010
93510-13010
93510-15014
