LN56L-MDCXA3 (1984)
Toyota 4-Runner Truck
(8308-8808)T1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
LN5#,6# |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
LN5#,6# |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-32010 |
LN5#,6# |
1 | ||
| 77310-16010 |
RN5#,6#,7# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
RN5#,6#,7#,VZN6# |
1 | ||
| 77316-32010 |
LN5#,6# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-35230 |
LN56..USA 65LITER |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-35230 |
LN56..USA 65LITER |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-35230 |
LN56..USA 65LITER |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77408-35020 |
LN5#,6#,RN5#,6#,7#,VZN6#..T1 L=340 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35160 |
RN5#,6#,7#,VZN6#..IV |
1 | ||
| 77201-35170 |
LN5#,65..IV |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-35240 |
LN56 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-35240 |
LN56 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
LN5#,6# |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
LN5#,6# |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-35080 |
LN5#,RN5#,7#..IV |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-89103 |
LN5#,65,RN5#,6#,70..IV |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77291-35020 |
LN5#,65,RN5#,6#,7#,VZN6#..IV |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05080 |
LN5#,65,RN5#,6#,70,VZN6#..(3QT,HLF)..IV |
2 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05080 |
LN5#,65,RN5#,6#,70,VZN6#..(3QT,HLF)..IV |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77161-35050 |
LN5#,RN5#,7# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77161-35050 |
LN5#,RN5#,7# |
1 | ||
| Common parts | ||||
| 90159-60221 | ||||
| 90170-08194 | ||||
| 90460-22001 | ||||
| 90460-65004 | ||||
| 90461-08323 | ||||
| 90480-01137 | ||||
| 90949-01299 | ||||
| 91631-40616 | ||||
| 91651-60816 | ||||
| 91651-60825 | ||||
| 91656-60825 | ||||
| 93319-14010 | ||||
| 93385-15012 | ||||
(8308-8708)LN5#,RN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-35010 |
LN5#,65 |
1 | ||
| 77228 - TUBE, FUEL TANK EVAPORATION VENT, NO.2 | ||||
| 77228-35050 |
LN56,65 |
1 | ||
| 77228-35060 |
LN56,65 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-35360 |
LN56,65 |
1 | ||
| 77251-35320 |
LN56,65 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
LN5#,65 *H,L=320,ID=7.6 |
1 | ||
| 77259-35030 |
LN5#,65 W/FUEL HEATER |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
LN5#,6# *H,L=150,ID=7.6 |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 77259-35040 |
LN56 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-35200 |
LN56,65 |
1 | ||
| 77255-35350 |
LN56,65 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12039 |
LN5#,6# |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 90445-12108 |
LN56,RN55 *H,L=590 |
1 | ||
| 90445-12159 |
LN56,RN55 |
1 | ||
| 90445-12167 |
LN56,RN55 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35040 |
LN5#,6# |
5 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77285-35040 |
LN5#,6# |
2 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77285-35030 |
LN5#,6# |
3 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77285-35060 |
LN56,65 |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 77249-35040 |
LN5#,65 |
1 | ||
| 77701B - HOSE, FUEL, NO.2 (FOR BREATHER VALVE) | ||||
| 95332-06010 |
LN5#,6# *H,L=70 |
1 | ||
| 77701C - HOSE, FUEL, NO.3 (FOR BREATHER VALVE) | ||||
| 77209-35130 |
LN56 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10054 |
LN5#,6# |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90201-06547 | ||||
| 90461-10616 | ||||
| 90461-12284 | ||||
| 90462-10079 | ||||
| 90464-00108 | ||||
| 90480-18492 | ||||
| 90929-01072 | ||||
| 90929-01079 | ||||
| 90929-01102 | ||||
| 91611-40812 | ||||
| 91611-60616 | ||||
| 91616-40816 | ||||
| 91616-40820 | ||||
| 91651-41016 | ||||
| 91656-40816 | ||||
| 94110-40600 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||

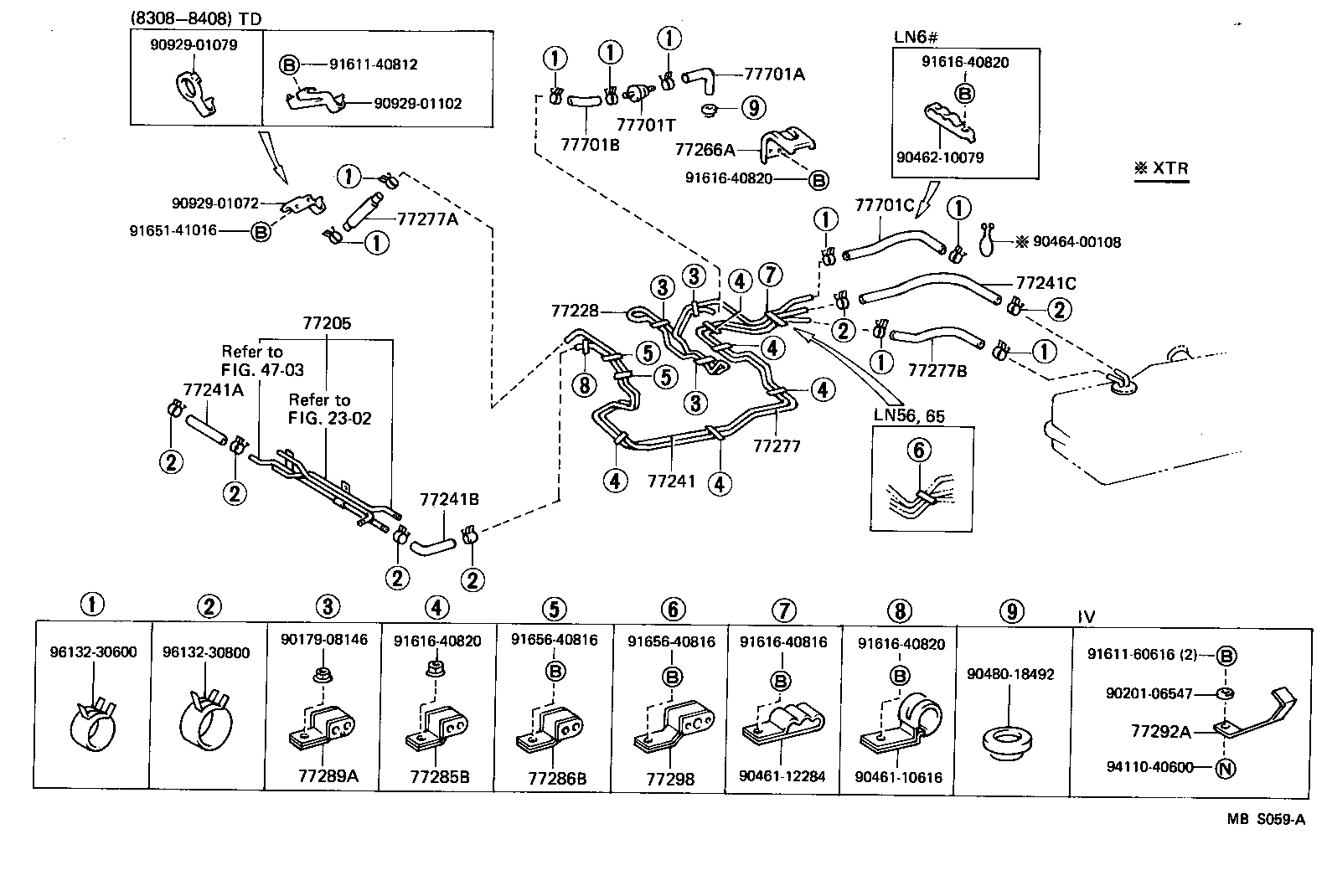

| Linked diagrams | ||||
| 2302 | ||||
| 4703 | ||||
