LN56L-MDCXA3 (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1985
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8508)RN50..4F ; (8408-8508)LN56,RN5#..MTM..EFI,TD ; (8508- )RN5#,7#..MTM..

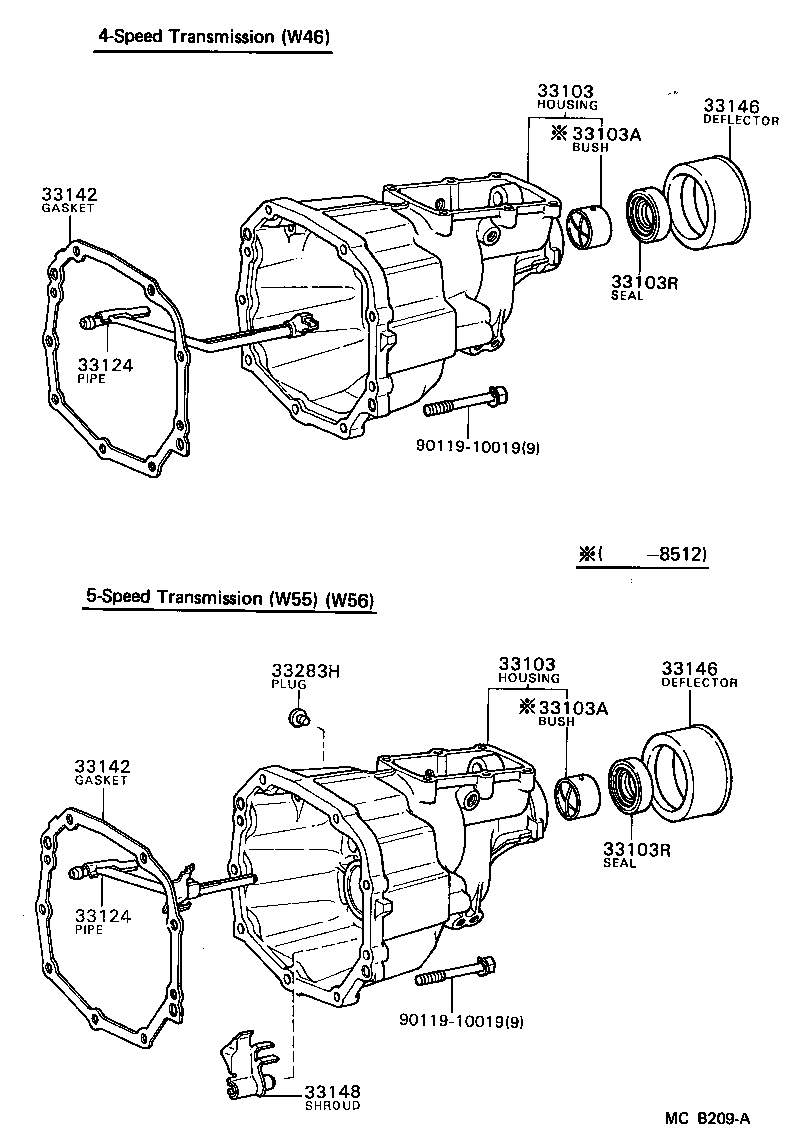

Click highlighted areas on diagram

diagram 33103 33103 33103A 33103A 33103R 33103R 33124 33124 33142 33142 33146 33146 33148 33283H 9011910019 9011910019
Part # Description Qty Price
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

LN5#

 1
90999-72023

RN50..4F;LN5#,RN5#..MTM..(DSL,EFI,TD)

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

LN5#

 1
90999-72023

RN50..4F;LN5#,RN5#..MTM..(DSL,EFI,TD)

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38043

RN50..4F;LN56,RN5#..MTM..(EFI,TD)

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38043

RN50..4F;LN56,RN5#..MTM..(EFI,TD)

 1
33124 - PIPE, OIL RECEIVER(MTM)
33106-22010

LN56,RN5#..5F..(EFI,TD)

 1
33124 - PIPE, OIL RECEIVER(MTM)
33106-22010

LN56,RN5#..5F..(EFI,TD)

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-20020

LN56,RN5#..MTM..(CBR,EFI,TD)

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-20020

LN56,RN5#..MTM..(CBR,EFI,TD)

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

LN5#,RN5#,7#..MTM

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

LN5#,RN5#,7#..MTM

 1
33148 - SHROUD, GEAR, NO.1
33148-22010

LN56,RN5#..5F..(EFI,TD)

 1
33283H - PLUG, W/HEAD STRAIGHT SCREW
90341-10065

LN56,RN5#..5F..(EFI,TD)

 2
90341-12008

LN56

 1
Common parts
90119-10019
