LN56L-MDCA (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1985
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8608)

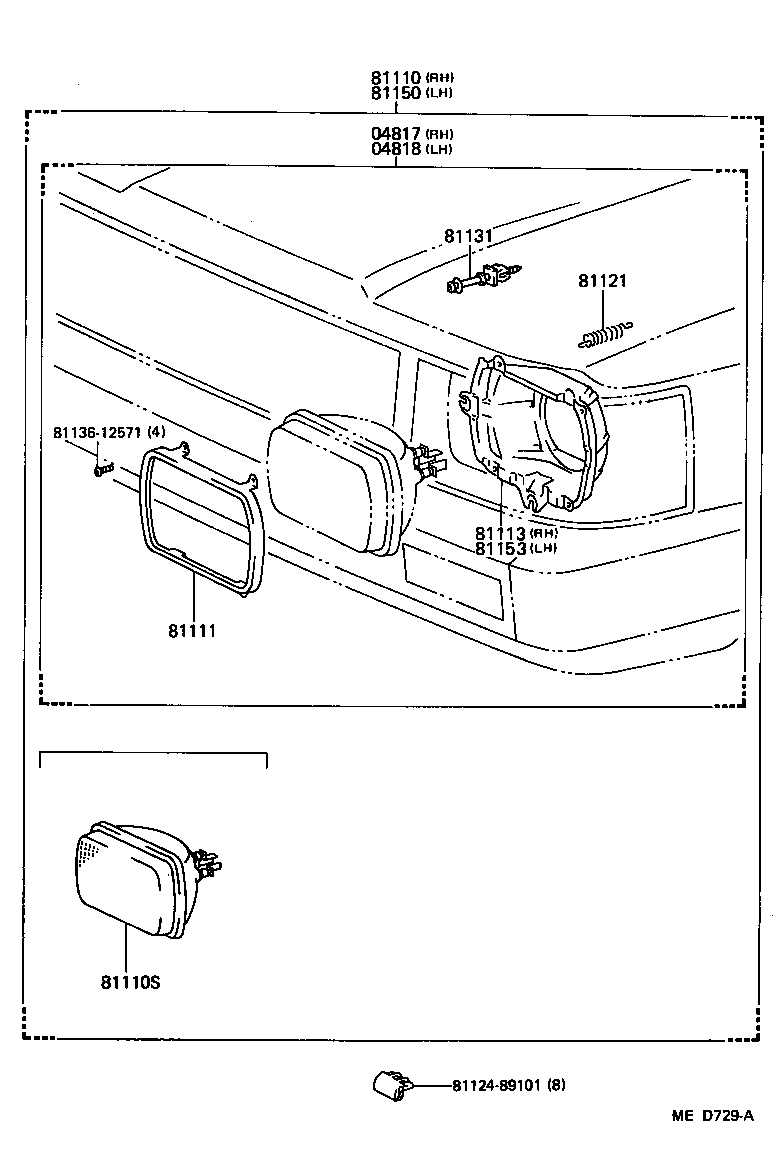

Click highlighted areas on diagram

diagram 04817 04818 81110 81110S 81111 81113 81121 8112489101 81131 8113612571 81150 81153
Part # Description Qty Price
04817 - HEADLAMP KIT, W/O SEALED BEAM, RH
04817-35020

LN56,6#,RN5#,6#,7#..DLX,SR5,SRT

SEALED,HALOGEN

 1
04818 - HEADLAMP KIT, W/O SEALED BEAM, LH
04818-35020

LN56,6#,RN5#,6#,7#..DLX,SR5,SRT

SEALED,HALOGEN

 1
81110 - HEADLAMP ASSY, RH
81110-80367

LN5#,6#,RN5#,6#,7#..DLX,SDT,STD

KOITO

 1
81110-80375

LN56,6#,RN5#,6#,7#..DLX,SR5,SRT

KOITO,HALOGEN

 1
81110S - SEALED BEAM UNIT, NO.1
90981-04020

LN56,6#,RN5#,6#,7#,VZN6#..DLX,SR5,SRT

12V 65/35W,*HAL,*WB,12V 65/35W,KOITO,HALOGEN

 2
90981-04004

LN5#,6#,RN5#,6#,7#,VZN6#..DLX,SDT,STD

12V 65/55W,*WB,12V 65/55W,KOITO

 2
81111 - RING, SEALED BEAM RETAINING
81111-16020

LN5#,6#,RN5#,6#,7#,VZN6#

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-89136

LN5#,6#,RN5#,6#,7#

 1
81121 - SPRING, HEADLAMP TENSION
81121-14670

LN5#,6#,RN5#,6#,7#,VZN6#

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-89103

LN5#,6#,RN5#,6#,7#,VZN6#

W/SELF LOCKING NUT

 4
81150 - HEADLAMP ASSY, LH
81150-80369

LN56,6#,RN5#,6#,7#..DLX,SR5,SRT

KOITO,HALOGEN

 1
81150-80361

LN5#,6#,RN5#,6#,7#..DLX,SDT,STD

KOITO

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-89136

LN5#,6#,RN5#,6#,7#

 1
Common parts
81124-89101
81136-12571
