LN56L-MDA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1985
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)LN5# ; (8408-8508)DSL

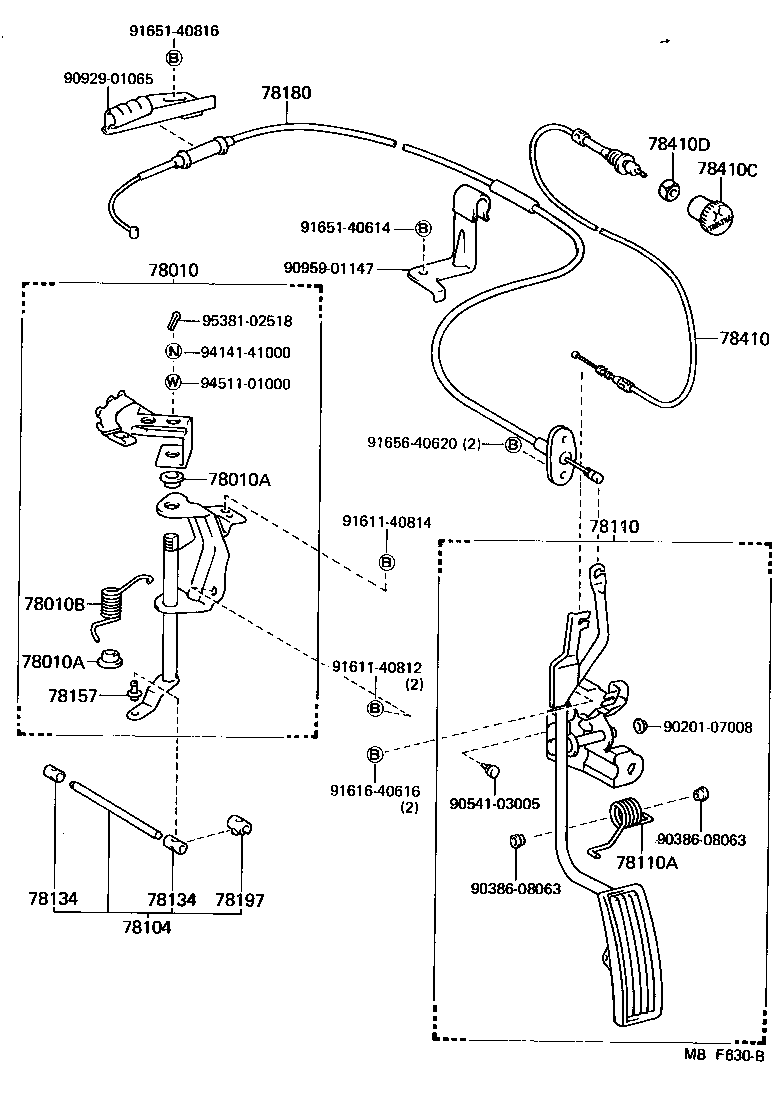

Click highlighted areas on diagram

diagram 78010 78010A 78010A 78010B 78104 78110 78110A 78134 78134 78157 78180 78197 78410 78410C 78410D 9020107008 9038608063 9038608063 9054103005 9092901065 9095901147 9161140812 9161140814 9161640616 9165140614 9165140816 9165640620 9414141000 9451101000 9538102518
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78100-89104

LN5#,6#

 1
78010A - BUSH (FOR ACCELERATOR LINK)
90386-10138

LN5#,6#

 2
78010A - BUSH (FOR ACCELERATOR LINK)
90386-10138

LN5#,6#

 2
78010B - SPRING, TORSION (FOR ACCELERATOR LINK)
90508-23080

LN5#,6#

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-89105

LN5#,6#

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89117

LN5#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26060

LN5#,6#

 1
90508-32019

RN5#,6#,7#

 1
78134 - END, ACCELERATOR CONNECTING ROD
78134-10010

LN5#,6#

 2
78134 - END, ACCELERATOR CONNECTING ROD
78134-10010

LN5#,6#

 2
78157 - BALL, ACCELERATOR JOINT
78157-10010

LN5#,6#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-89134

LN5#,65..DSL

 1
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010

LN5#,6#

 2
78410 - CABLE ASSY, THROTTLE CONTROL
78401-89107

LN5#,6#

 1
78410C - KNOB, THROTTLE CABLE
78411-89103

LN5#,6#

 1
78410D - NUT, THROTTLE
90170-11006

LN5#,6#

 1
Common parts
90201-07008
90386-08063
90541-03005
90929-01065
90959-01147
91611-40812
91611-40814
91616-40616
91651-40614
91651-40816
91656-40620
94141-41000
94511-01000
95381-02518
