LN56L-MDA3 (1983)
Toyota 4-Runner Truck
Production
Aug 1983
-
Aug 1985
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )LN5#,RN5#,7#

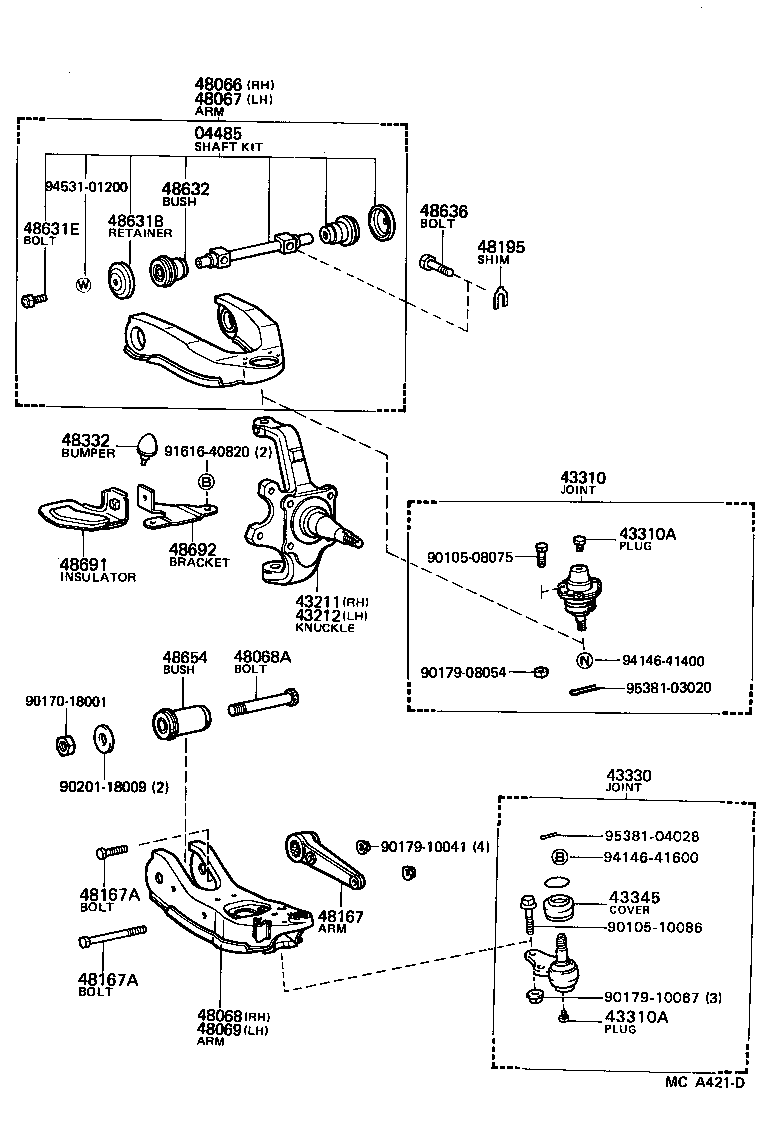

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04485 - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-35030 |
LN5#,RN5#,7# |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-35100 |
LN5#,RN5#..HLF |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-35060 |
LN5#,RN5#..HLF |
1 | ||
| 43310 - JOINT ASSY, UPPER BALL | ||||
| 43350-39035 |
LN5#,RN5#,7# |
2 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
LN5#,66,RN5#,61,66,7#,VZN6# |
2 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
LN5#,66,RN5#,61,66,7#,VZN6# |
2 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-39165 |
LN5#,RN5#,7# RH |
1 | ||
| 43340-39145 |
LN5#,RN5#,7# LH |
1 | ||
| 43345 - COVER, LOWER BALL JOINT DUST | ||||
| 43345-26010 |
LN5#,RN5# |
2 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-35060 |
LN5#,RN5#,7# |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48066-35060 |
LN5#,RN5#,7# |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48605-35080 |
LN5#,RN5#,70..HLF |
1 | ||
| 48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90114-18003 |
LN5#,RN5#,7# |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48606-35080 |
LN5#,RN5#,70..HLF |
1 | ||
| 48167 - ARM, TORQUE | ||||
| 48167-35020 |
LN5#,RN5#,7# |
2 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 90105-10088 |
LN5#,RN5#,7# L=26 |
1 | ||
| 90105-10087 |
LN5#,RN5#,7# L=127 |
2 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 90105-10088 |
LN5#,RN5#,7# L=26 |
1 | ||
| 90105-10087 |
LN5#,RN5#,7# L=127 |
2 | ||
| 48195 - SHIM, CAMBER ADJUST | ||||
| 90565-12008 |
LN5#,RN5#,7# T=1.6,T=1.6 |
8 | ||
| 90565-12009 |
LN5#,RN5#,7# T=1.2,T=1.2 |
8 | ||
| 90565-12004 |
LN5#,RN5#,7# T=4.0,T=4.0 |
8 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48332-35020 |
LN5#,RN5#,7# |
4 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02020 |
LN5#,RN5#,7# |
4 | ||
| 48631E - BOLT(FOR UPPER SUSPENSION ARM) | ||||
| 90105-12017 |
LN5#,RN5#,7# |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-30040 |
LN5#,RN5#,7# |
4 | ||
| 48636 - BOLT, UPPER ARM SET | ||||
| 90105-12080 |
LN5#,RN5#,7# |
4 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48654-35030 |
LN5#,RN5# |
2 | ||
| Common parts | ||||
| 90105-08075 | ||||
| 90105-10086 | ||||
| 90170-18001 | ||||
| 90179-08054 | ||||
| 90179-10041 | ||||
| 90179-10067 | ||||
| 90201-18009 | ||||
| 91616-40820 | ||||
| 94146-41400 | ||||
| 94146-41600 | ||||
| 94531-01200 | ||||
| 95381-03020 | ||||
| 95381-04028 | ||||
