LN56L-MDA3 (1983)
Toyota 4-Runner Truck
Production
Aug 1983
-
Aug 1985
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )LN56,RN6#..DLX

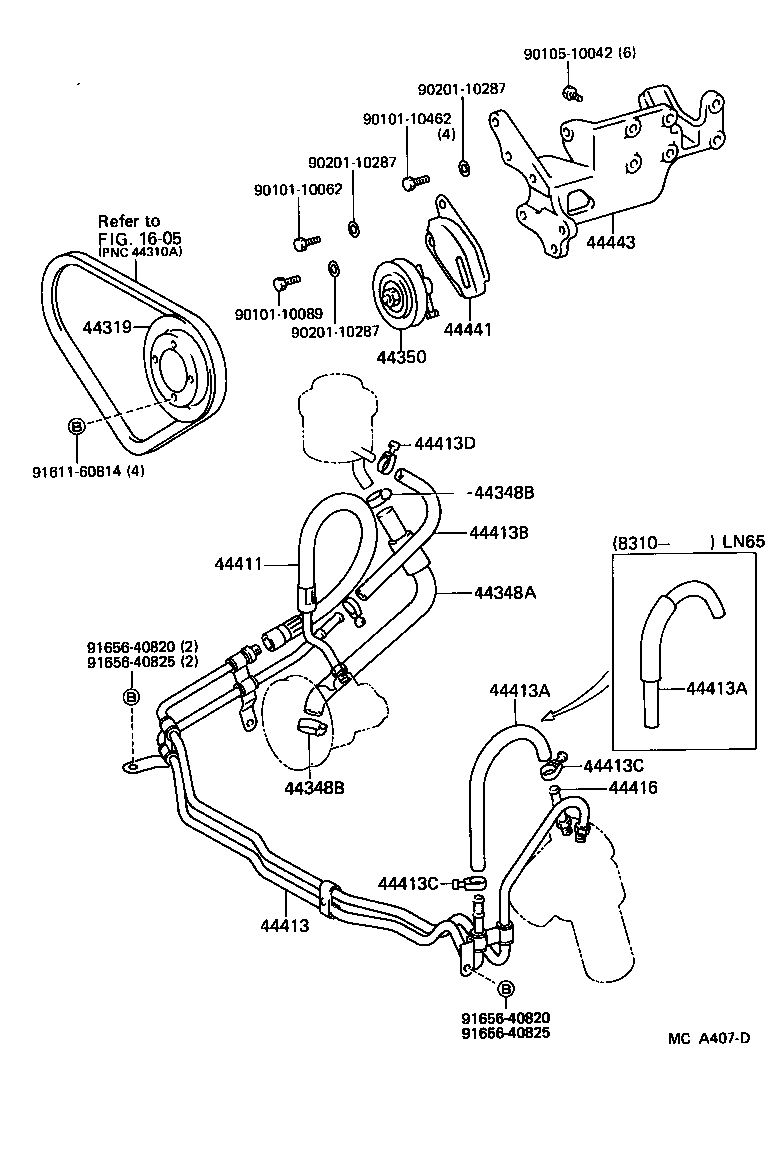

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-35010 |
LN56,6# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-35050 |
LN56,6#..DLX |
1 | ||
| 44348-35040 |
RN5#,6#..(4FC,5F)..(DLX,SR5) |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
RN60;LN56,65,RN5#,65..(DLX,SR5,SRT)..HLF |
2 | ||
| 90460-26001 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
2 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
RN60;LN56,65,RN5#,65..(DLX,SR5,SRT)..HLF |
2 | ||
| 90460-26001 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
2 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-20020 |
RN60..CND;RN60..SR5..IV;LN56,65,RN5#,65..(DLX,SR5)..HLF |
1 | ||
| 44350-20020 |
RN5#,6#..(4FC,5F)..(DLX,SR5) |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-35060 |
LN56,6# |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44410-35040 |
LN56 |
1 | ||
| 44413A - HOSE(FOR RETURN TUBE OUTLET) | ||||
| 90445-18096 |
LN56 |
1 | ||
| 44413A - HOSE(FOR RETURN TUBE OUTLET) | ||||
| 90445-18096 |
LN56 |
1 | ||
| 44413B - HOSE(FOR RESERVOIR TANK INLET) | ||||
| 90445-18100 |
LN56,65 |
1 | ||
| 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) | ||||
| 90460-01001 |
LN56,6# |
2 | ||
| 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) | ||||
| 90460-01001 |
LN56,6# |
2 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
LN56,6# |
2 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35020 |
RN60;LN56,65,RN5#,65..(DLX,SR5,SRT)..HLF |
1 | ||
| 44416-35020 |
LN56,RN5#,6#..(4FC,5F)..(DLX,SR5) |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-20010 |
RN5#,6#..(4FC,5F)..(DLX,SR5) |
1 | ||
| 44441-35011 |
LN56,6# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-20031 |
RN5#,6#..(DLX,SR5)..HLF |
1 | ||
| 44443-35011 |
LN56,6# |
1 | ||
| Common parts | ||||
| 90101-10062 | ||||
| 90101-10089 | ||||
| 90101-10462 | ||||
| 90105-10042 | ||||
| 90201-10287 | ||||
| 91611-60814 | ||||
| 91656-40820 | ||||
| 91656-40825 | ||||
| Linked diagrams | ||||
| 1605 | ||||
