LN56L-MDA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1985
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8708)2L

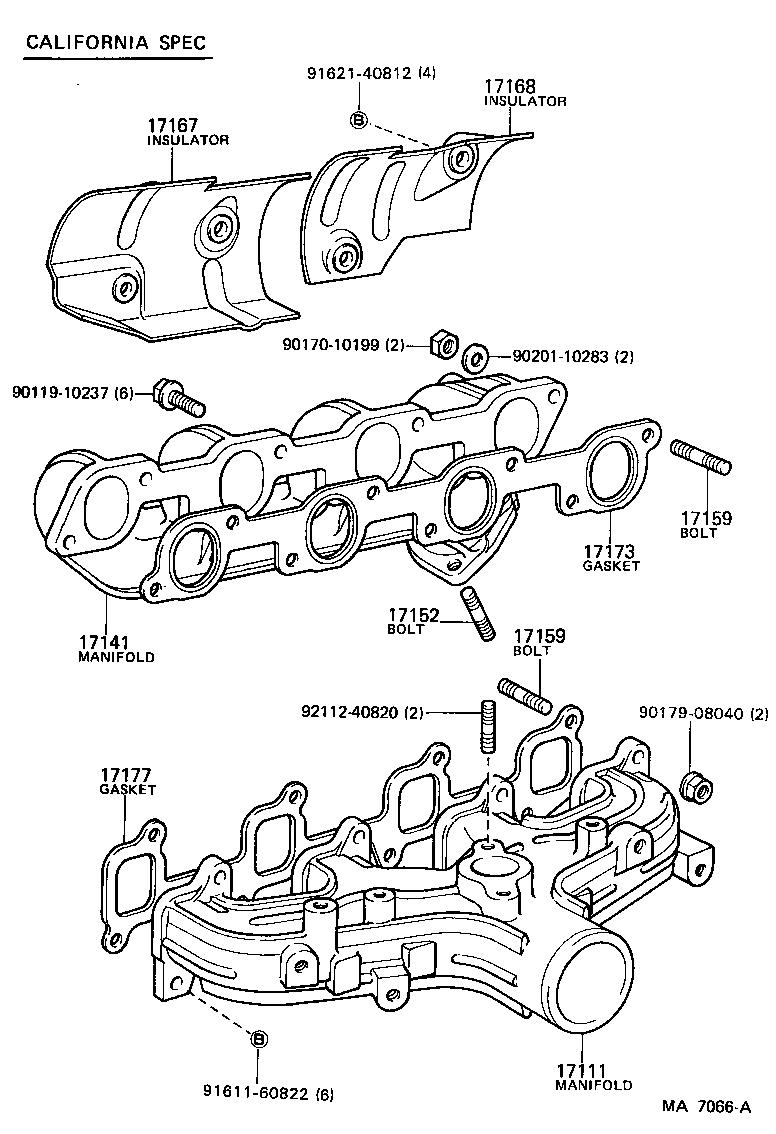

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17168 17173 17177 9011910237 9017010199 9017908040 9020110283 9161160822 9162140812
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-54030

2L..LN5#,65

 1
17111-54060

2L..LN56..IV

CALIFORNIA SPEC

 1
17141 - MANIFOLD, EXHAUST
17141-54030

2L..LN56..IV

CALIFORNIA SPEC

 1
17141-54040

2L..LN5#,65

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10088

2L#..LN5#,6#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10091

2L..LN5#,65

EXHAUST MANIFOLD SIDE

 2
90116-08053

2L#..LN5#,65

INTAKE MANIFOLD SIDE

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10091

2L..LN5#,65

EXHAUST MANIFOLD SIDE

 2
90116-08053

2L#..LN5#,65

INTAKE MANIFOLD SIDE

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-54011

2L..LN5#,65

 1
17167-54040

2L..LN5#,65

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-54011

2L..LN5#,65

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-54011

2L..LN5#,65

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-54011

2L#..LN5#,65

 1
Common parts
90119-10237
90170-10199
90179-08040
90201-10283
91611-60822
91621-40812

(8308-8408)2L..LN56..IV

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17168 17173 17177 9011910237 9017010199 9017908040 9020110283 9161160822 9162140812 9211240820
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-54030

2L..LN5#,65

 1
17111-54060

2L..LN56..IV

CALIFORNIA SPEC

 1
17141 - MANIFOLD, EXHAUST
17141-54030

2L..LN56..IV

CALIFORNIA SPEC

 1
17141-54040

2L..LN5#,65

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10088

2L#..LN5#,6#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10091

2L..LN5#,65

EXHAUST MANIFOLD SIDE

 2
90116-08053

2L#..LN5#,65

INTAKE MANIFOLD SIDE

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10091

2L..LN5#,65

EXHAUST MANIFOLD SIDE

 2
90116-08053

2L#..LN5#,65

INTAKE MANIFOLD SIDE

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-54011

2L..LN5#,65

 1
17167-54040

2L..LN5#,65

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-54011

2L..LN5#,65

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-54011

2L..LN5#,65

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-54011

2L#..LN5#,65

 1
Common parts
90119-10237
90170-10199
90179-08040
90201-10283
91611-60822
91621-40812
92112-40820
