LN56L-MDA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1985
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8708)2L#..LN5#

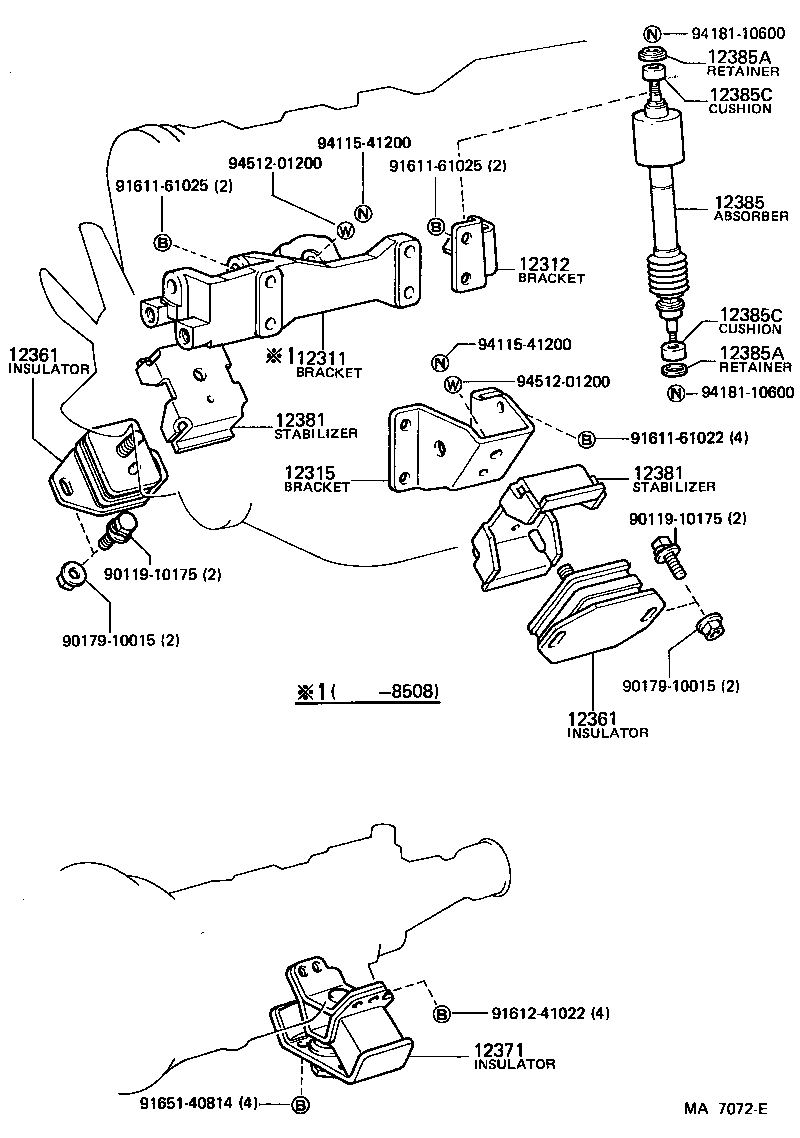

Click highlighted areas on diagram

diagram 12311 12312 12315 12361 12361 12371 12381 12381 12385 12385A 12385A 12385C 12385C 9011910175 9011910175 9017910015 9017910015 9161161022 9161161025 9161161025 9161241022 9165140814 9411541200 9411541200 9418110600 9418110600 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54090

2L#..LN5#,65

 1
12312 - BRACKET, ENGINE MOUNTING, FRONT NO.2
12312-54031

2L..LN5#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-54020

2L#..LN5#,6#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54110

2L#..LN5#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54110

2L#..LN5#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

2L#..LN5#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-54010

2L#..LN5#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54010

2L#..LN5#

 2
12385 - ABSORBER, ENGINE MOUNTING, NO.1
12307-54020

2L#..LN5#

 1
12385A - RETAINER, SHOCK ABSORBER CUSHION
90948-02052

2L#..LN5#

 2
12385A - RETAINER, SHOCK ABSORBER CUSHION
90948-02052

2L#..LN5#

 2
12385C - CUSHION, SHOCK ABSORBER
90948-01010

2L#..LN5#

 2
12385C - CUSHION, SHOCK ABSORBER
90948-01010

2L#..LN5#

 2
Common parts
90119-10175
90179-10015
91611-61022
91611-61025
91612-41022
91651-40814
94115-41200
94181-10600
94512-01200
