LN51L-KRA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN5#,RN6#..MTM

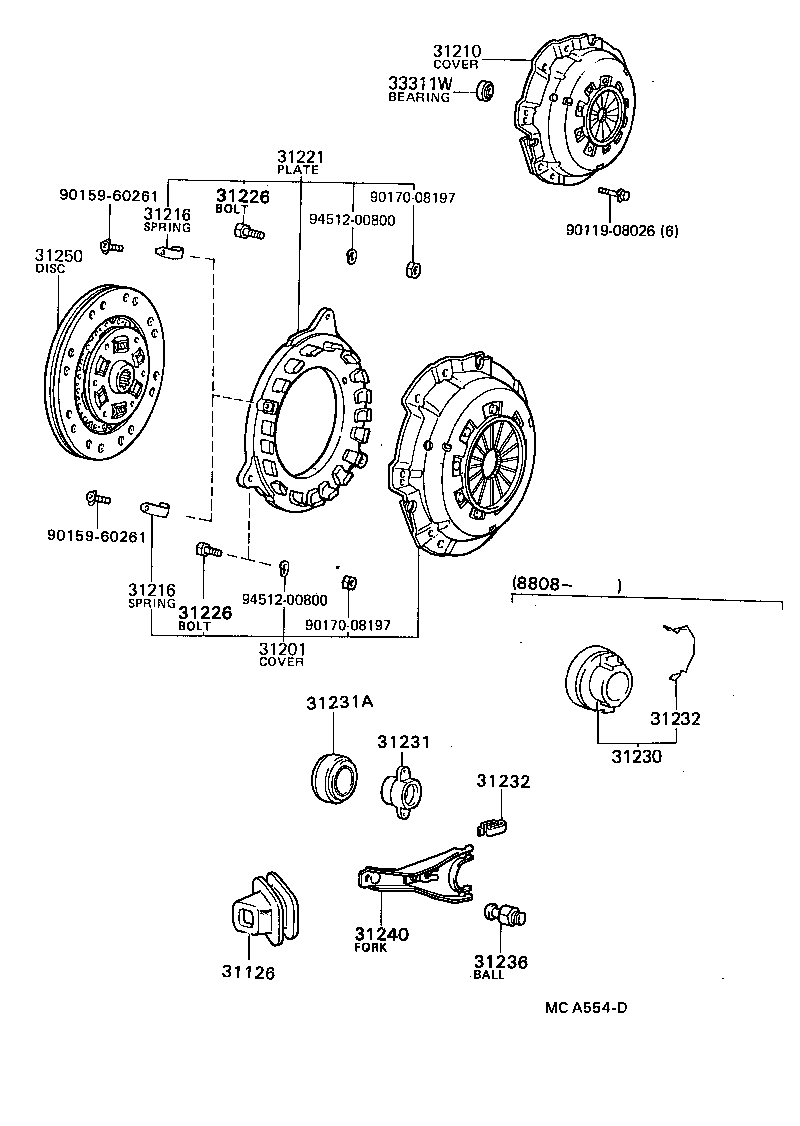

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31226 31226 31230 31231 31231A 31232 31232 31236 31240 31250 33311W 9011908026 9015960261 9015960261 9017008197 9017008197 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

LN5#,6#

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-19095

LN5#,65..DSL

 1
31210 - COVER ASSY, CLUTCH
31210-14130

LN5#,65..DSL

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LN5#,65,RN5#,6#..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LN5#,65,RN5#,6#..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-39056

LN5#,65..DSL

 1
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08022

LN5#,65,RN5#,6#..MTM

 3
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08022

LN5#,65,RN5#,6#..MTM

 3
31231 - HUB, CLUTCH RELEASE BEARING
31231-20090

LN5#,6#,RN5#,6#,7#..MTM..(DLX,SR5,STD)

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

LN5#,6#,RN5#,6#,7#..MTM

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

LN5#,6#,RN5#,6#,7#..MTM..(DLX,SR5,STD)

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

LN5#,6#,RN5#,6#,7#..MTM..(DLX,SR5,STD)

 2
31236 - BALL, RELEASE FORK
31236-30060

LN5#,6#,RN5#,6#,7#..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20090

LN5#,6#

 1
31250 - DISC ASSY, CLUTCH
31250-30350

LN5#

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

LN5#,6#,RN5#,6#,7#,VZN6#..MTM

 1
Common parts
90119-08026
90159-60261
90170-08197
94512-00800
