LN51L-KRA (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1985
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN56,65,RN6#..G ; (8708-8808)G

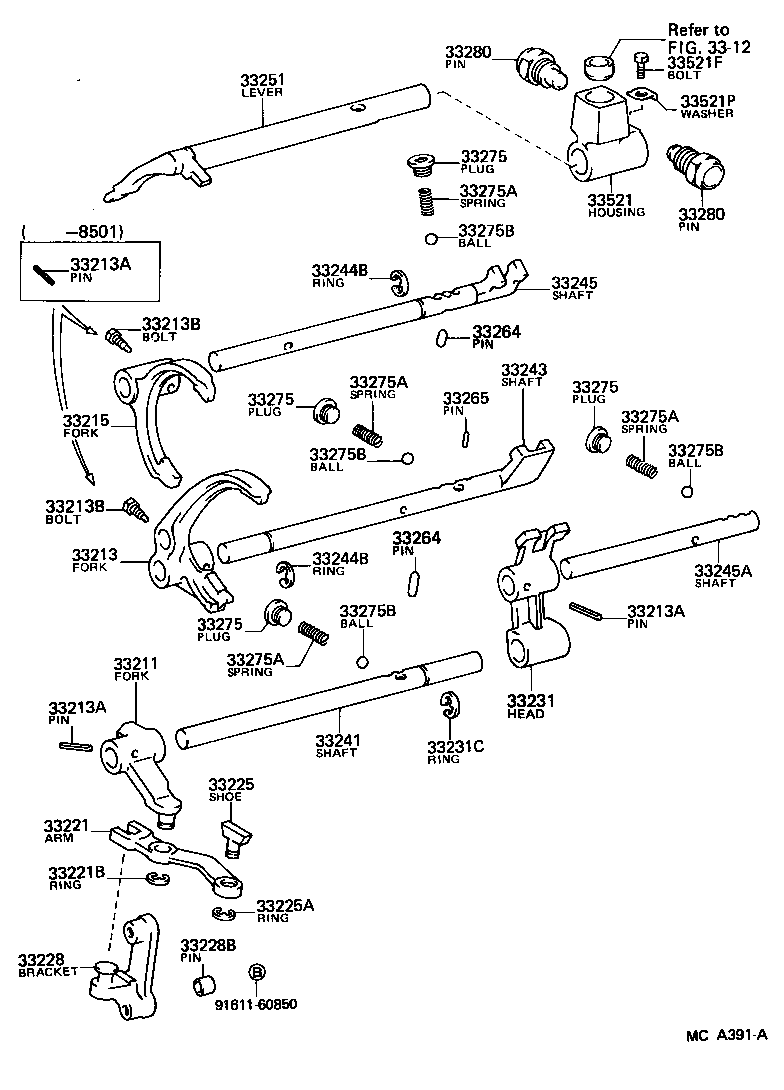

Click highlighted areas on diagram

diagram 3312 33211 33213 33213A 33213A 33213A 33213A 33213B 33213B 33214F 33215 33221 33221B 33225 33225A 33228 33228B 33231 33231B 33231C 33241 33243 33244A 33244B 33244B 33245 33245A 33251 33264 33264 33264 33265 33265 33275 33275 33275 33275 33275 33275A 33275A 33275A 33275A 33275A 33275B 33275B 33275B 33275B 33275B 33280 33280 33283F 33283G 33521 33521 33521F 33521P 9011908597
Part # Description Qty Price
33211 - FORK, REVERSE SHIFT
33211-28010

LN5#,65,RN6#..G

 1
33213 - FORK, 1ST & 2ND SHIFT
33212-35022

LN5#,65,RN6#..G

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN5#,65,RN5#,6#

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN5#,65,RN5#,6#

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN5#,65,RN5#,6#

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN5#,65,RN5#,6#

 5
33215 - FORK, 3RD & 4TH SHIFT
33213-35031

LN5#,65,RN6#..G

 1
33221 - ARM, REVERSE SHIFT
33221-28010

LN5#,65,RN6#..G

 1
33221B - RING, E(FOR REVERSE SHIFT ARM)
96160-01000

LN5#,65,RN6#..G

 1
33225 - SHOE, SHIFT ARM
33225-35020

RN60..IV;RN60..V,WG;LN5#,65,RN65;RN60..(DLX,STD)..HLF..CBU

 1
33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE)
96160-00800

LN5#,65,RN6#..G

 1
33228 - BRACKET, REVERSE SHIFT ARM
33228-28010

LN5#,65,RN6#..G

 1
33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET)
90253-11001

LN5#,65,RN6#..G

 2
33231 - HEAD, REVERSE SHIFT
33231-35050

LN51

 1
33231C - RING(FOR REVERSE SHIFT HEAD)
90523-12001

LN5#,65,RN6#..G

 2
33241 - SHAFT, REVERSE SHIFT FORK
33244-35030

LN51

 1
33243 - SHAFT, 1ST & 2ND SHIFT FORK
33242-35020

LN5#,65,RN6#..G

 1
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90523-12001

LN5#,65,RN6#..G

 2
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90523-12001

LN5#,65,RN6#..G

 2
33245 - SHAFT, 3RD & 4TH SHIFT FORK
33243-35040

LN5#,65,RN6#..G

 1
33243-35041

LN5#,RN6#..G

 1
33245A - SHAFT, 5TH SHIFT ARM
33246-35020

LN5#,65,RN6#..G

 1
33251 - LEVER, SHIFT & SELECT
33251-35060

RN50..CND;LN5#,RN5#,70..G

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90361-10003

LN5#,65,RN6#..G

L=13.6,OD=9.5,PIN,L=13.6

 1
90361-10002

LN5#,65,RN6#..G

L=21.6,PIN,PIN,L=21.6

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90361-10003

LN5#,65,RN6#..G

L=13.6,OD=9.5,PIN,L=13.6

 1
90361-10002

LN5#,65,RN6#..G

L=21.6,PIN,PIN,L=21.6

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90361-10003

LN5#,65,RN6#..G

L=13.6,OD=9.5,PIN,L=13.6

 1
90361-10002

LN5#,65,RN6#..G

L=21.6,PIN,PIN,L=21.6

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
90250-05020

LN5#,65,RN6#..G

L=11.1,OD=4.8

 2
33265 - PIN, SHIFT INTER LOCK, NO.2
90250-05020

LN5#,65,RN6#..G

L=11.1,OD=4.8

 2
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

LN5#,65,RN6#..G

OD=18

 5
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

LN5#,65,RN6#..G

OD=18

 5
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

LN5#,65,RN6#..G

OD=18

 5
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

LN5#,65,RN6#..G

OD=18

 5
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

LN5#,65,RN6#..G

OD=18

 5
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-10061

LN5#,65,RN6#..G

L=22.1,L=22.1

 1
90501-14062

LN5#,65,RN6#..G

L=30.6,L=30.6

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-10061

LN5#,65,RN6#..G

L=22.1,L=22.1

 1
90501-14062

LN5#,65,RN6#..G

L=30.6,L=30.6

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-10061

LN5#,65,RN6#..G

L=22.1,L=22.1

 1
90501-14062

LN5#,65,RN6#..G

L=30.6,L=30.6

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-10061

LN5#,65,RN6#..G

L=22.1,L=22.1

 1
90501-14062

LN5#,65,RN6#..G

L=30.6,L=30.6

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-10061

LN5#,65,RN6#..G

L=22.1,L=22.1

 1
90501-14062

LN5#,65,RN6#..G

L=30.6,L=30.6

 3
33275B - BALL, SHAFT DETENT
90360-10003

LN5#,65,RN6#..G

 5
33275B - BALL, SHAFT DETENT
90360-10003

LN5#,65,RN6#..G

 5
33275B - BALL, SHAFT DETENT
90360-10003

LN5#,65,RN6#..G

 5
33275B - BALL, SHAFT DETENT
90360-10003

LN5#,65,RN6#..G

 5
33275B - BALL, SHAFT DETENT
90360-10003

LN5#,65,RN6#..G

 5
33280 - PIN ASSY, REVERSE RESTRICT
33280-35030

LN5#,65,RN6#

LH

 1
33280-35020

LN5#,65,RN6#

RH

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-35030

LN5#,65,RN6#

LH

 1
33280-35020

LN5#,65,RN6#

RH

 1
33283F - PIN, REVERSE RESTRICT
33280-35040

LN5#,65,RN6#..G

 1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
90254-05001

LN5#,65,RN6#..G

 1
33521 - HOUSING, SHIFT LEVER
33521-35070

RN50..CND;LN5#,RN5#,70..G

 1
33521 - HOUSING, SHIFT LEVER
33521-35070

RN50..CND;LN5#,RN5#,70..G

 1
33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING)
90113-08001

LN5#,65,RN6#..G

 1
33521P - WASHER, LOCK (FOR SHIFT LEVER HOUSING)
90215-09003

LN5#,65,RN6#

 1
Common parts
90119-08597
Linked diagrams
3312

(8308-8508)LN51

Click highlighted areas on diagram

diagram 3312 33211 33213 33213A 33213A 33213A 33213B 33213B 33215 33221 33221B 33225 33225A 33228 33228B 33231 33231C 33241 33243 33244B 33244B 33245 33245A 33251 33264 33264 33265 33275 33275 33275 33275 33275A 33275A 33275A 33275A 33275B 33275B 33275B 33275B 33280 33280 33521 33521F 33521P 9161160850
Part # Description Qty Price
33211 - FORK, REVERSE SHIFT
33211-28010

LN5#,65,RN6#..G

 1
33213 - FORK, 1ST & 2ND SHIFT
33212-35022

LN5#,65,RN6#..G

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN5#,65,RN5#,6#

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN5#,65,RN5#,6#

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

LN5#,65,RN5#,6#

 5
33215 - FORK, 3RD & 4TH SHIFT
33213-35031

LN5#,65,RN6#..G

 1
33221 - ARM, REVERSE SHIFT
33221-28010

LN5#,65,RN6#..G

 1
33221B - RING, E(FOR REVERSE SHIFT ARM)
96160-01000

LN5#,65,RN6#..G

 1
33225 - SHOE, SHIFT ARM
33225-35020

RN60..IV;RN60..V,WG;LN5#,65,RN65;RN60..(DLX,STD)..HLF..CBU

 1
33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE)
96160-00800

LN5#,65,RN6#..G

 1
33228 - BRACKET, REVERSE SHIFT ARM
33228-28010

LN5#,65,RN6#..G

 1
33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET)
90253-11001

LN5#,65,RN6#..G

 2
33231 - HEAD, REVERSE SHIFT
33231-35050

LN51

 1
33231C - RING(FOR REVERSE SHIFT HEAD)
90523-12001

LN5#,65,RN6#..G

 2
33241 - SHAFT, REVERSE SHIFT FORK
33244-35030

LN51

 1
33243 - SHAFT, 1ST & 2ND SHIFT FORK
33242-35020

LN5#,65,RN6#..G

 1
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90523-12001

LN5#,65,RN6#..G

 2
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90523-12001

LN5#,65,RN6#..G

 2
33245 - SHAFT, 3RD & 4TH SHIFT FORK
33243-35040

LN5#,65,RN6#..G

 1
33243-35041

LN5#,RN6#..G

 1
33245A - SHAFT, 5TH SHIFT ARM
33246-35020

LN5#,65,RN6#..G

 1
33251 - LEVER, SHIFT & SELECT
33251-35060

RN50..CND;LN5#,RN5#,70..G

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90361-10003

LN5#,65,RN6#..G

L=13.6,OD=9.5,PIN,L=13.6

 1
90361-10002

LN5#,65,RN6#..G

L=21.6,PIN,PIN,L=21.6

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90361-10003

LN5#,65,RN6#..G

L=13.6,OD=9.5,PIN,L=13.6

 1
90361-10002

LN5#,65,RN6#..G

L=21.6,PIN,PIN,L=21.6

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
90250-05020

LN5#,65,RN6#..G

L=11.1,OD=4.8

 2
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

LN5#,65,RN6#..G

OD=18

 5
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

LN5#,65,RN6#..G

OD=18

 5
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

LN5#,65,RN6#..G

OD=18

 5
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

LN5#,65,RN6#..G

OD=18

 5
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-10061

LN5#,65,RN6#..G

L=22.1,L=22.1

 1
90501-14062

LN5#,65,RN6#..G

L=30.6,L=30.6

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-10061

LN5#,65,RN6#..G

L=22.1,L=22.1

 1
90501-14062

LN5#,65,RN6#..G

L=30.6,L=30.6

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-10061

LN5#,65,RN6#..G

L=22.1,L=22.1

 1
90501-14062

LN5#,65,RN6#..G

L=30.6,L=30.6

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-10061

LN5#,65,RN6#..G

L=22.1,L=22.1

 1
90501-14062

LN5#,65,RN6#..G

L=30.6,L=30.6

 3
33275B - BALL, SHAFT DETENT
90360-10003

LN5#,65,RN6#..G

 5
33275B - BALL, SHAFT DETENT
90360-10003

LN5#,65,RN6#..G

 5
33275B - BALL, SHAFT DETENT
90360-10003

LN5#,65,RN6#..G

 5
33275B - BALL, SHAFT DETENT
90360-10003

LN5#,65,RN6#..G

 5
33280 - PIN ASSY, REVERSE RESTRICT
33280-35030

LN5#,65,RN6#

LH

 1
33280-35020

LN5#,65,RN6#

RH

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-35030

LN5#,65,RN6#

LH

 1
33280-35020

LN5#,65,RN6#

RH

 1
33521 - HOUSING, SHIFT LEVER
33521-35070

RN50..CND;LN5#,RN5#,70..G

 1
33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING)
90113-08001

LN5#,65,RN6#..G

 1
33521P - WASHER, LOCK (FOR SHIFT LEVER HOUSING)
90215-09003

LN5#,65,RN6#

 1
Common parts
91611-60850
Linked diagrams
3312
