MXPA12-AGXXB (2020)
Toyota Yaris Gr

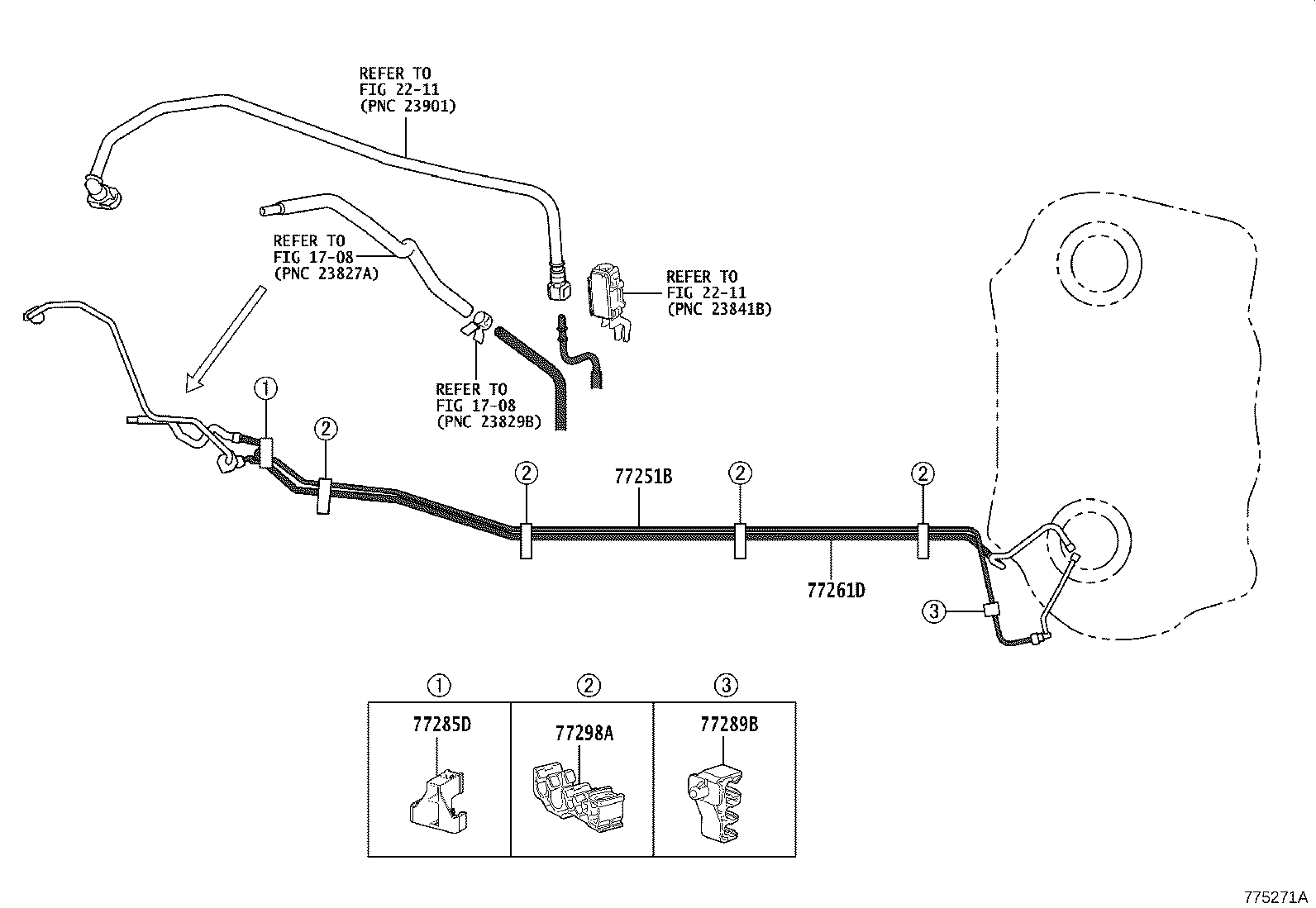

ILLUST NO. 2 OF 3(2009- )MXPA12
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-52530 |
MXPA12 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-52540 |
MXPA12 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-52190 |
MXPA12 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-52170 |
MXPA12 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52110 |
MXPA12 |
4 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

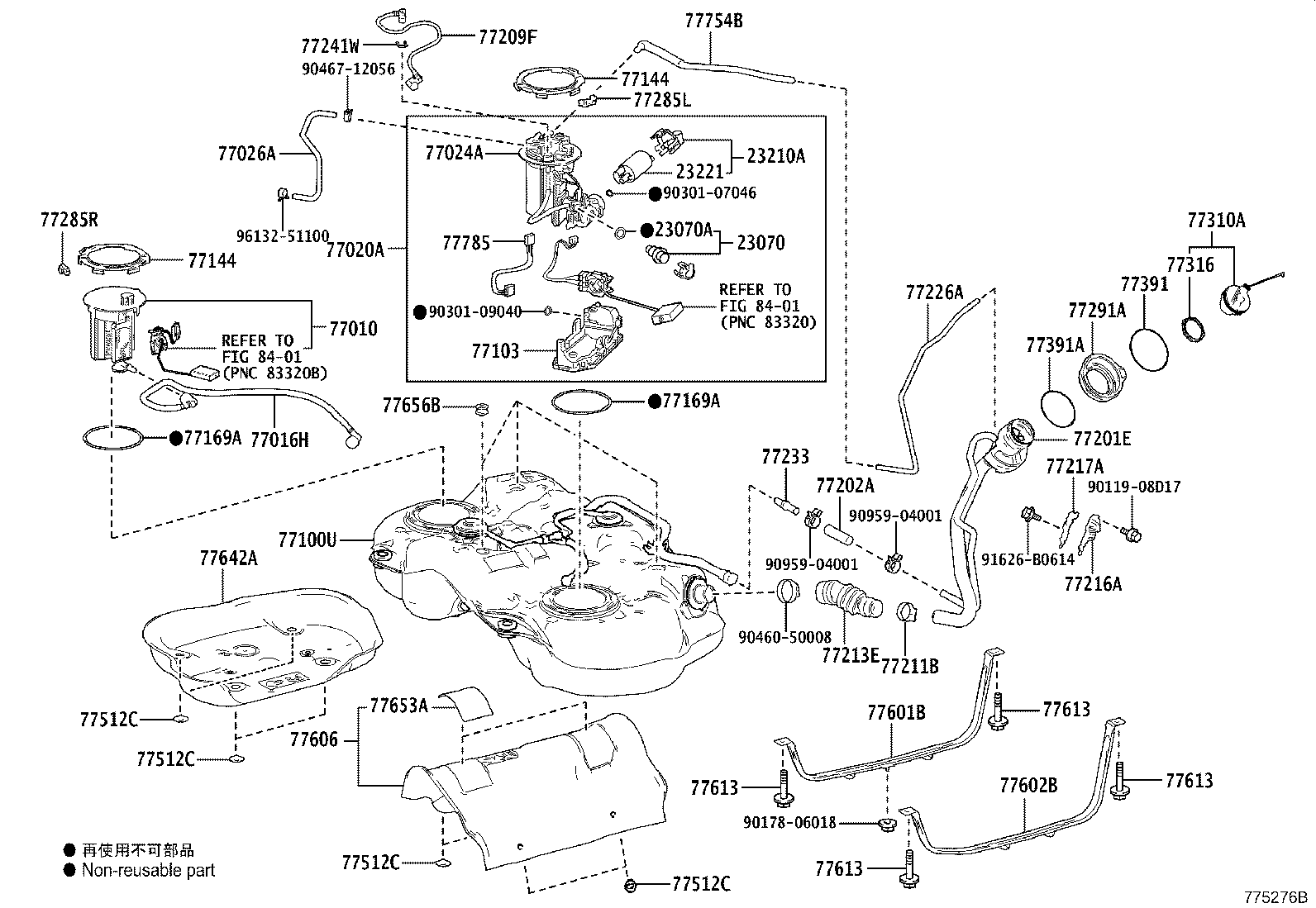

ILLUST NO. 1 OF 3(2009- )MXPA12
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-24010 |
G16EGTS,M15AFKS..GXPA16,MXPA12 |
1 | ||
| 23070A - RING, O, NO.1(FOR FUEL MAIN VALVE) | ||||
| 90301-15024 |
G16EGTS,M15AFKS..GXPA16,MXPA12 |
1 | ||
| 23210A - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-24010 |
G16EGTS,M15AFKS..GXPA16,MXPA12 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-24010 |
G16EGTS,M15AFKS..GXPA16,MXPA12 |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-10180 |
GXPA16,MXPA12 |
1 | ||
| 77016H - TUBE SUB-ASSY, FUEL RETURN VENT | ||||
| 77016-52050 |
GXPA16,MXPA12 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-52570 |
GXPA16,MXPA12 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-52340 |
GXPA16,MXPA12 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-52020 |
MXPA12 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-52640 |
GXPA16,MXPA12 |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-42080 |
GXPA16,MXPA12 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
GXPA16,MXPA12 |
2 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
GXPA16,MXPA12 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47040 |
GXPA16,MXPA12 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47040 |
GXPA16,MXPA12 |
2 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-52570 |
GXPA16,MXPA12 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95312-13007 |
GXPA16,MXPA12 長さ=70 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-52270 |
MXPA12 |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-40007 |
GXPA16,MXPA12 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-52270 |
GXPA16,MXPA12 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-52280 |
GXPA16,MXPA12 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-52160 |
GXPA16,MXPA12 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-52250 |
GXPA16,MXPA12 |
1 | ||
| 77233 - JOINT, FUEL HOSE | ||||
| 77233-60020 |
GXPA16,MXPA12 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GXPA16,MXPA12 |
1 | ||
| 77241-60550 |
GXPA16,MXPA12 |
1 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-12210 |
GXPA16,MXPA12 |
1 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
GXPA16,MXPA12 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-52130 |
GXPA16,MXPA12 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
GXPA16,MXPA12 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
GXPA16,MXPA12 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-75010 |
GXPA16,MXPA12 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GXPA16,MXPA12 |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
GXPA16,MXPA12 |
8 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
GXPA16,MXPA12 |
8 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
GXPA16,MXPA12 |
8 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
GXPA16,MXPA12 |
8 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-52070 |
GXPA16,MXPA12 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-52020 |
GXPA16,MXPA12 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-52130 |
GXPA16,MXPA12 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
GXPA16,MXPA12 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
GXPA16,MXPA12 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
GXPA16,MXPA12 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
GXPA16,MXPA12 |
4 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-52120 |
GXPA16,MXPA12 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-60060 |
GXPA16,MXPA12 |
2 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-30030 |
GXPA16,MXPA12 |
3 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-52100 |
GXPA16,MXPA12 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-76010 |
GXPA16,MXPA12 |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90178-06018 | ||||
| 90301-07046 | ||||
| 90301-09040 | ||||
| 90460-50008 | ||||
| 90467-12056 | ||||
| 90959-04001 | ||||
| 91626-B0614 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
