GXPA16-AGFVZ (2020)

Toyota Yaris Gr

Production Aug 2020 - Sep 9999
Engine G16EGTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

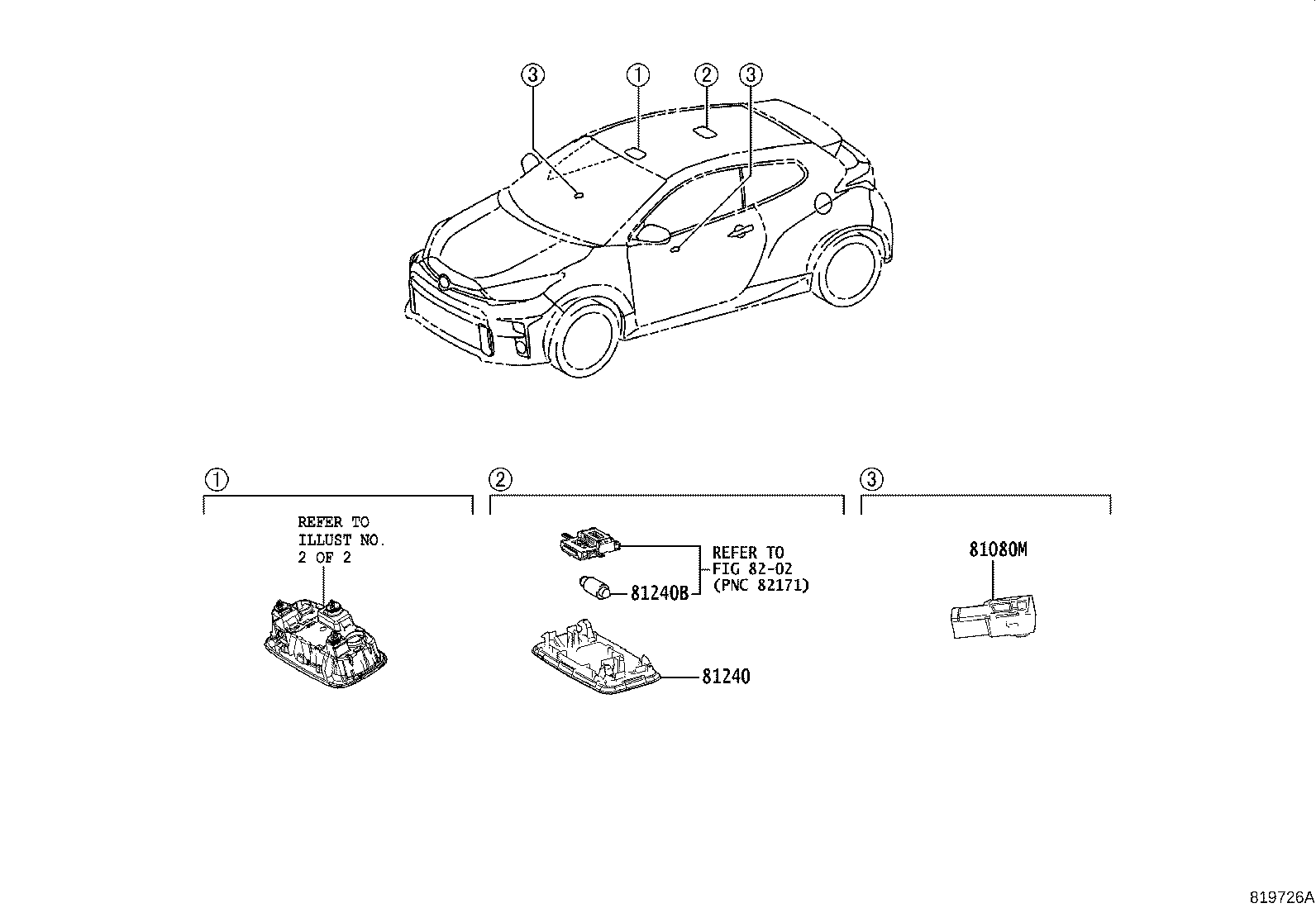

ILLUST NO. 1 OF 2(2008- )

Click highlighted areas on diagram

diagram 81080M 81240 81240B 8202
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-42020C0

GXPA16,MXPA12

BLACK,TRIM2#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

GXPA16,MXPA12

12V 8W

 1
Linked diagrams
8202

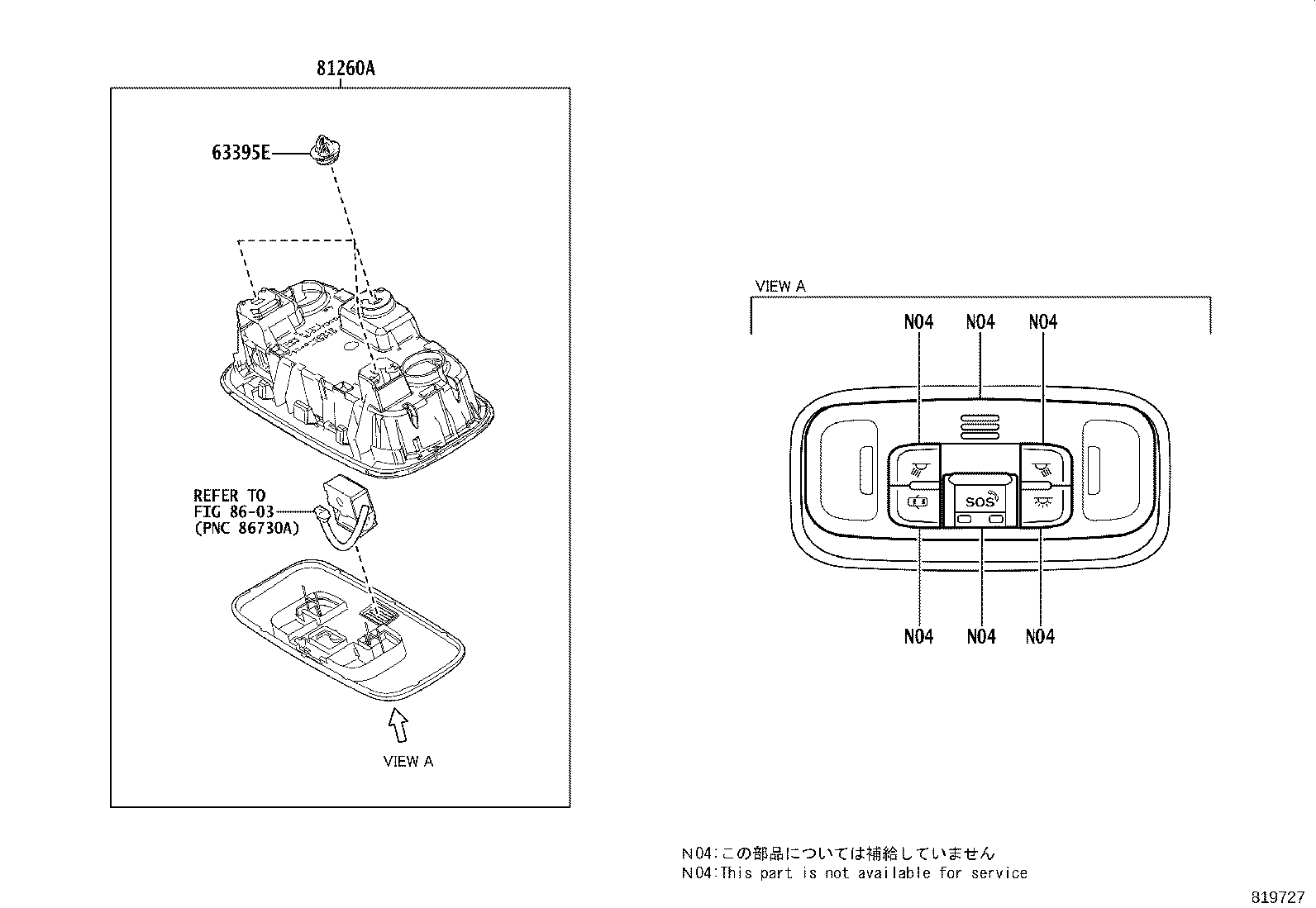

ILLUST NO. 2 OF 2(2008- )

Click highlighted areas on diagram

diagram 63395E 81260A 8603
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-09240

GXPA16,MXPA12

 3
81260A - LAMP ASSY, MAP
81260-K0010C0

GXPA16..RC

BLACK,TRIM2#

 1
Linked diagrams
8603
