GXPA16-AGFGZ (2020)

Toyota Yaris Gr

Production Aug 2020 - Sep 9999
Engine G16EGTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )

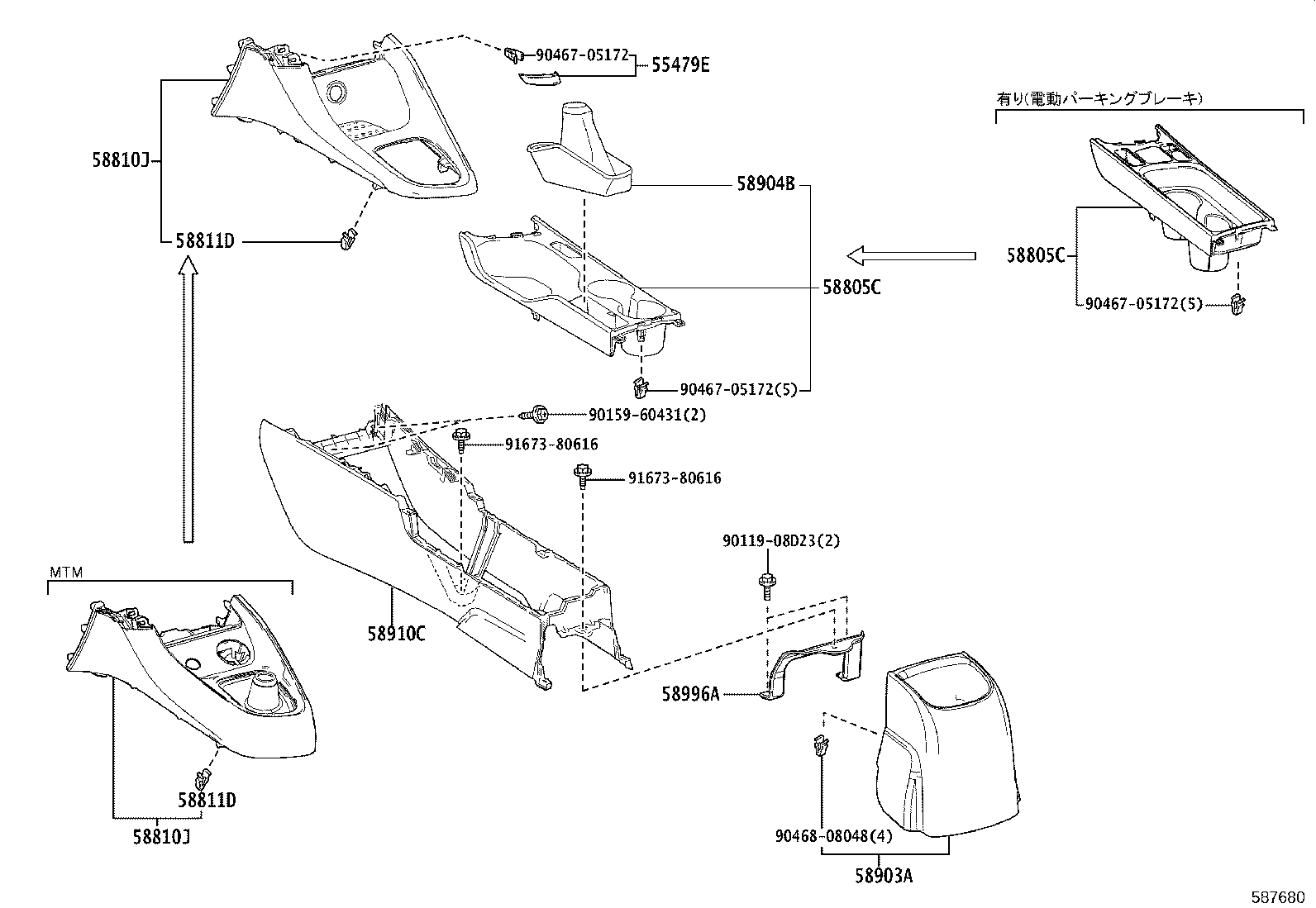

Click highlighted areas on diagram

diagram 55479E 58805C 58805C 58810J 58810J 58811D 58811D 58903A 58904B 58910C 58996A 9011908D23 9015960431 9046705172 9046705172 9046705172 9046808048 9167380616 9167380616
Part # Description Qty Price
55479E - COVER, INSTRUMENT, LOWER CENTER
55479-K0040

GXPA16,MXPA12

 1
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-52060C2

GXPA16..RZ

BLACK/GRAY,TRIM20

 1
58805-52060C1

GXPA16..RZ

BLACK/GR RED,TRIM21

 1
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-52060C2

GXPA16..RZ

BLACK/GRAY,TRIM20

 1
58805-52060C1

GXPA16..RZ

BLACK/GR RED,TRIM21

 1
58810J - BOX ASSY, CONSOLE
58810-52050C4

GXPA16..RZ

BLACK/GRAY,TRIM20

 1
58810-52051C4

GXPA16..RZ

BLACK/GRAY,TRIM20

 1
58810-52051C3

GXPA16..RZ

BLACK/GR RED,TRIM21

 1
58810-52050C3

GXPA16..RZ

BLACK/GR RED,TRIM21

 1
58810J - BOX ASSY, CONSOLE
58810-52050C4

GXPA16..RZ

BLACK/GRAY,TRIM20

 1
58810-52051C4

GXPA16..RZ

BLACK/GRAY,TRIM20

 1
58810-52051C3

GXPA16..RZ

BLACK/GR RED,TRIM21

 1
58810-52050C3

GXPA16..RZ

BLACK/GR RED,TRIM21

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-05172

GXPA16

 13
90467-05172

GXPA16

 11
58811D - CLIP(FOR CONSOLE BOX)
90467-05172

GXPA16

 13
90467-05172

GXPA16

 11
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-K0020C0

GXPA16,MXPA12

BLACK,TRIM2#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-52010C2

GXPA16..RZ

BLACK/GRAY,TRIM20

 1
58904-52010C1

GXPA16..RZ

BLACK/GR RED,TRIM21

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-K0010C0

GXPA16,MXPA12

BLACK,TRIM2#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-K0020

GXPA16,MXPA12

 1
Common parts
90119-08D23
90159-60431
90467-05172
90468-08048
91673-80616
