GXPA16-AGFGZ (2020)

Toyota Yaris Gr

Production Aug 2020 - Sep 9999
Engine G16EGTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )G16EGTS

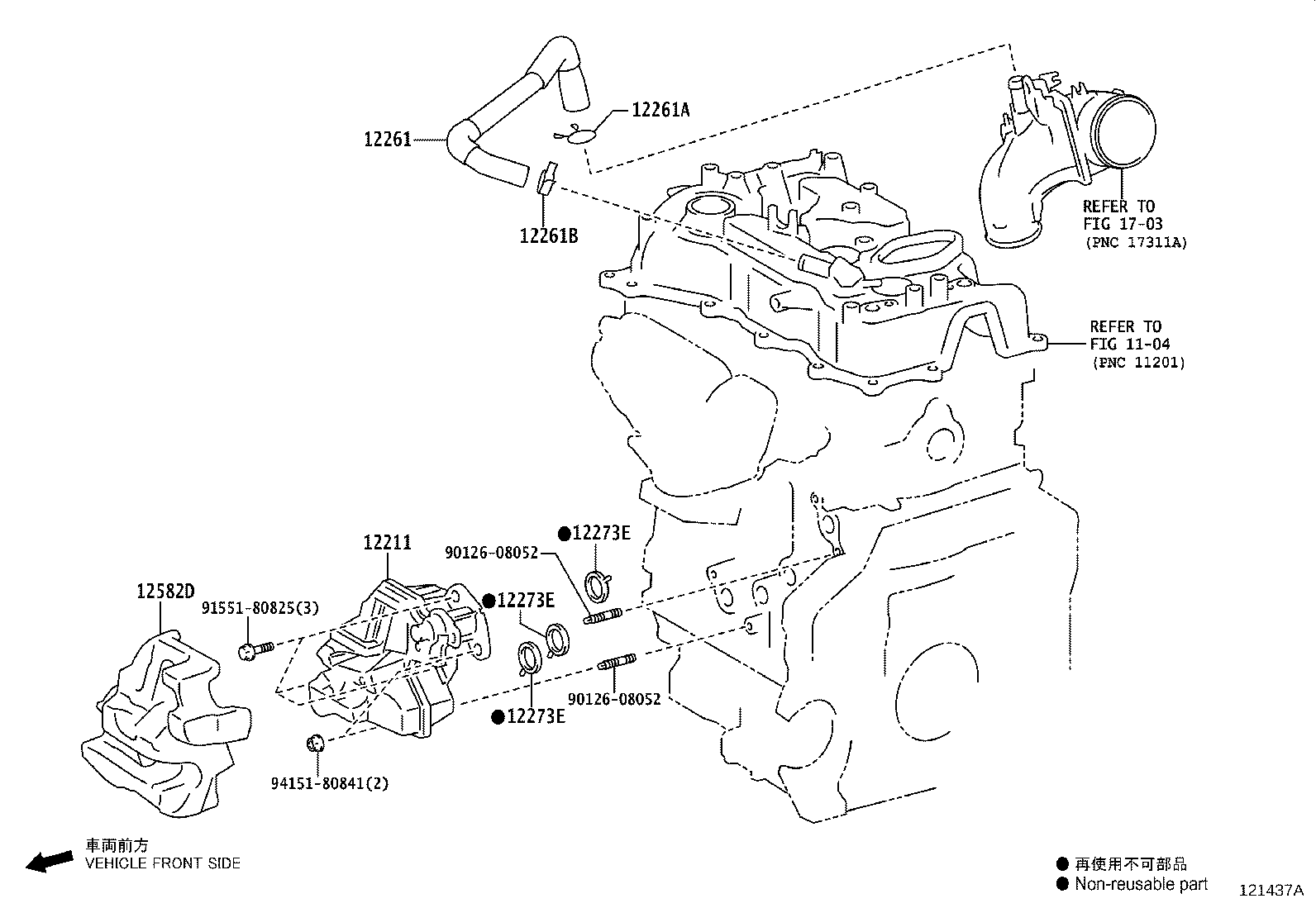

Click highlighted areas on diagram

diagram 1104 12211 12261 12261A 12261B 12273E 12273E 12273E 12582D 1703 9012608052 9012608052 9155180825 9415180841
Part # Description Qty Price
12211 - CASE, VENTILATION, NO.1
12211-18010

G16EGTS..GXPA16

 1
12261 - HOSE, VENTILATION
12261-18010

G16EGTS..GXPA16

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-24038

G16EGTS..GXPA16

 1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
96136-42201

G16EGTS..GXPA16

 1
12273E - GASKET(FOR VENTILATION CASE)
12273-24010

G16EGTS..GXPA16

 3
12273E - GASKET(FOR VENTILATION CASE)
12273-24010

G16EGTS..GXPA16

 3
12273E - GASKET(FOR VENTILATION CASE)
12273-24010

G16EGTS..GXPA16

 3
12582D - INSULATOR, CYLINDER BLOCK, NO.2
12582-18010

G16EGTS..GXPA16

 1
Common parts
90126-08052
91551-80825
94151-80841
Linked diagrams
1104
1703
