MXPJ15-BHXNB (2020)
Toyota Yaris Cross
Production
Aug 2020
-
Sep 9999
Engine
M15AFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

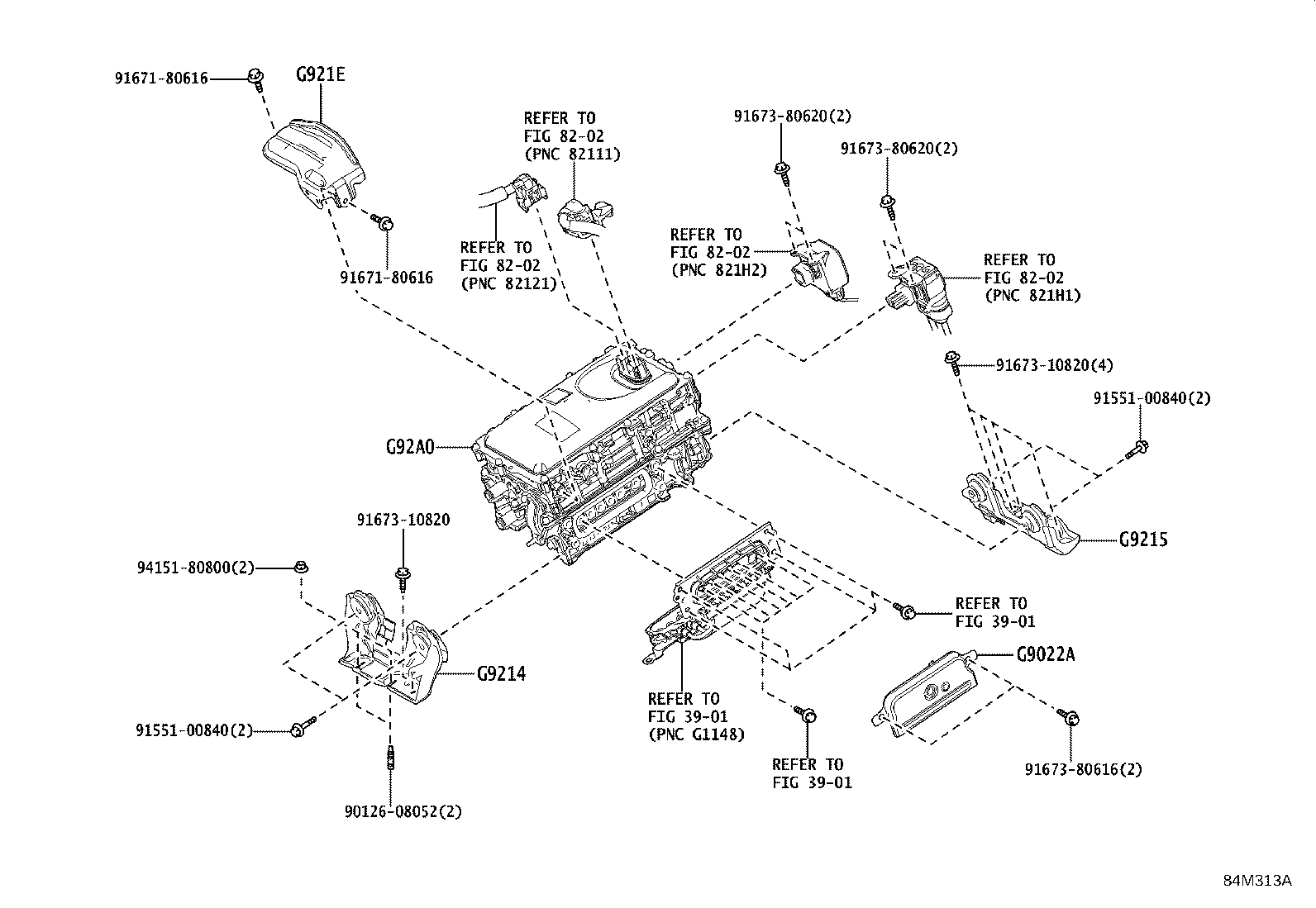

ILLUST NO. 1 OF 2(2008- )MXPJ1#
Click highlighted areas on diagram
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G9022A - COVER SUB-ASSY, INVERTER, UPPER | ||||
| G9022-47050 |
MXPJ1# |
1 | ||
| G9214 - BRACKET, INVERTER, NO.1 | ||||
| G9214-K0010 |
MXPJ1# |
1 | ||
| G9215 - BRACKET, INVERTER, NO.2 | ||||
| G9215-K0010 |
MXPJ1# |
1 | ||
| G921E - PROTECTOR, INVERTER | ||||
| G921E-K0010 |
MXPJ1# |
1 | ||
| G92A0 - INVERTER ASSY, HYBRID MOTOR CONTROL | ||||
| G92A0-K2020 |
MXPJ15 |
1 | ||
| G92A0-K2021 |
MXPJ15 |
1 | ||
| Common parts | ||||
| 90126-08052 | ||||
| 91551-00840 | ||||
| 91671-80616 | ||||
| 91673-10820 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3901 | ||||
| 8202 | ||||

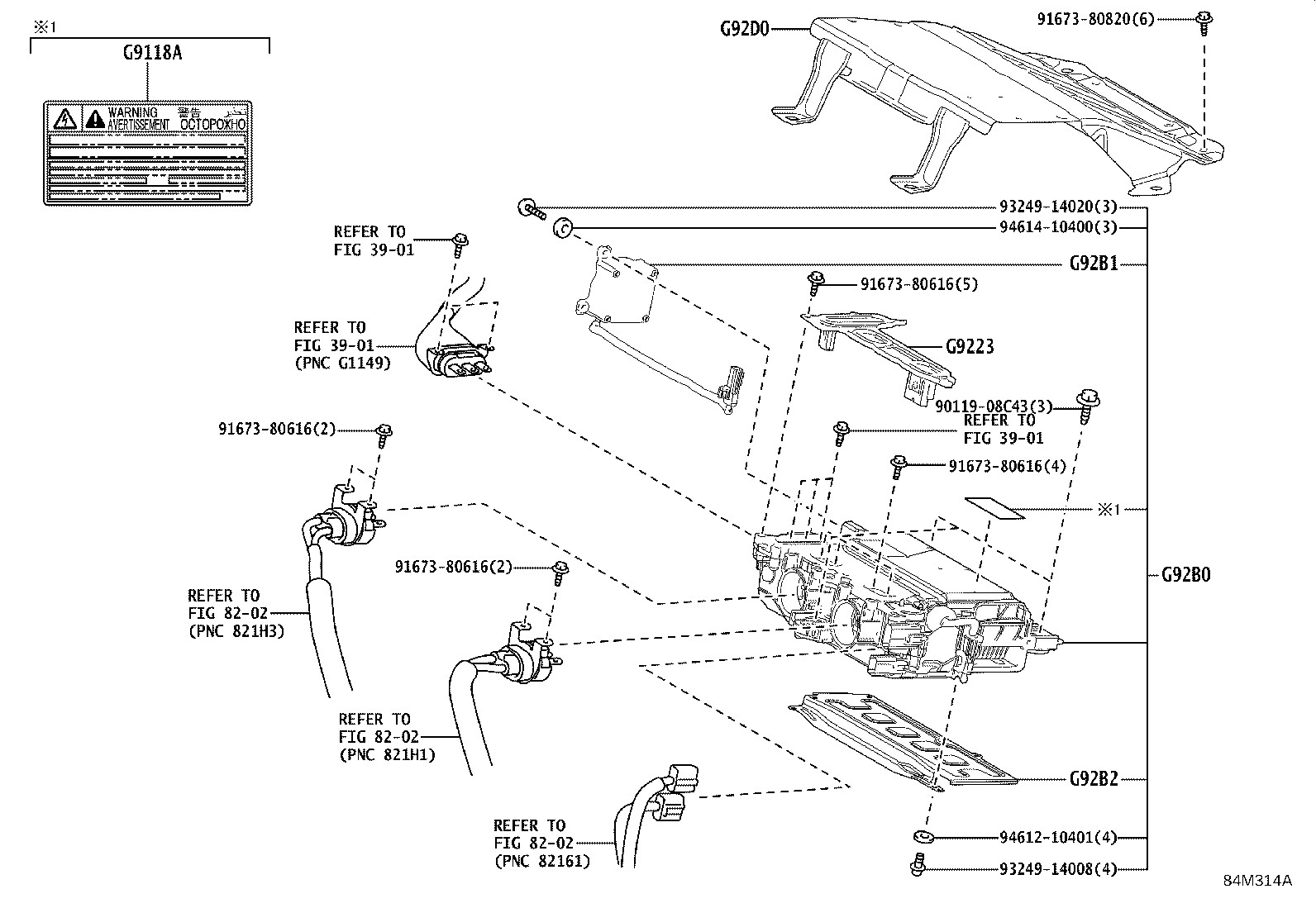

ILLUST NO. 2 OF 2(2008- )MXPJ15
Click highlighted areas on diagram
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G9118A - LABEL, HV MOTOR CONTROL INVERTER CAUTION | ||||
| G9118-76010 |
MXPJ15 |
1 | ||
| G9223 - COVER, INVERTER TERMINAL | ||||
| G9223-47030 |
MXPJ15 |
1 | ||
| G92B0 - INVERTER ASSY, HYBRID MOTOR CONTROL, REAR | ||||
| G92B0-K0010 |
MXPJ15 |
1 | ||
| G92B1 - FAN, HV INVERTER COOLING | ||||
| G92B1-47010 |
MXPJ15 |
1 | ||
| G92B2 - COVER, HV INVERTER COOLING | ||||
| G92B2-47010 |
MXPJ15 |
1 | ||
| G92D0 - PROTECTOR ASSY, HYBRID INVERTER | ||||
| G92D0-K0010 |
MXPJ15 |
1 | ||
| Common parts | ||||
| 90119-08C43 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 93249-14008 | ||||
| 93249-14020 | ||||
| 94612-10401 | ||||
| 94614-10400 | ||||
| Linked diagrams | ||||
| 3901 | ||||
| 8202 | ||||
