MXPJ15-BHXNB (2020)
Toyota Yaris Cross

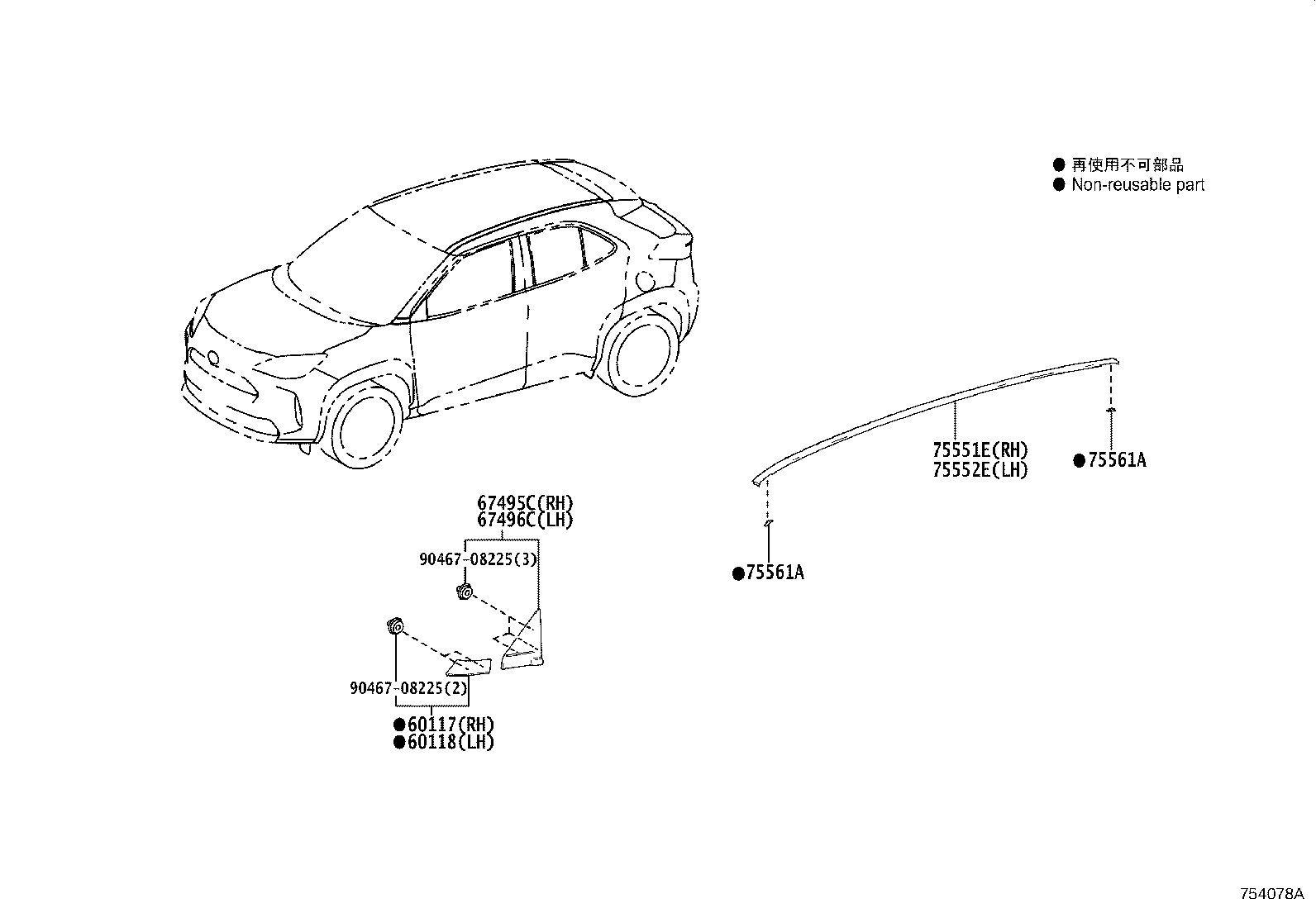

ILLUST NO. 1 OF 3(2008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-52140 |
MXPB1#,MXPJ1# |
1 | ||
| 60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-52130 |
MXPB1#,MXPJ1# |
1 | ||
| 67495C - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-52030 |
MXPB1#,MXPJ1# |
1 | ||
| 67496C - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-52030 |
MXPB1#,MXPJ1# |
1 | ||
| 75551E - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-52290 |
MXPB1#,MXPJ1# |
1 | ||
| 75552E - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-52250 |
MXPB1#,MXPJ1# |
1 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52050 |
MXPB1#,MXPJ1# |
4 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52050 |
MXPB1#,MXPJ1# |
4 | ||
| Common parts | ||||
| 90467-08225 | ||||

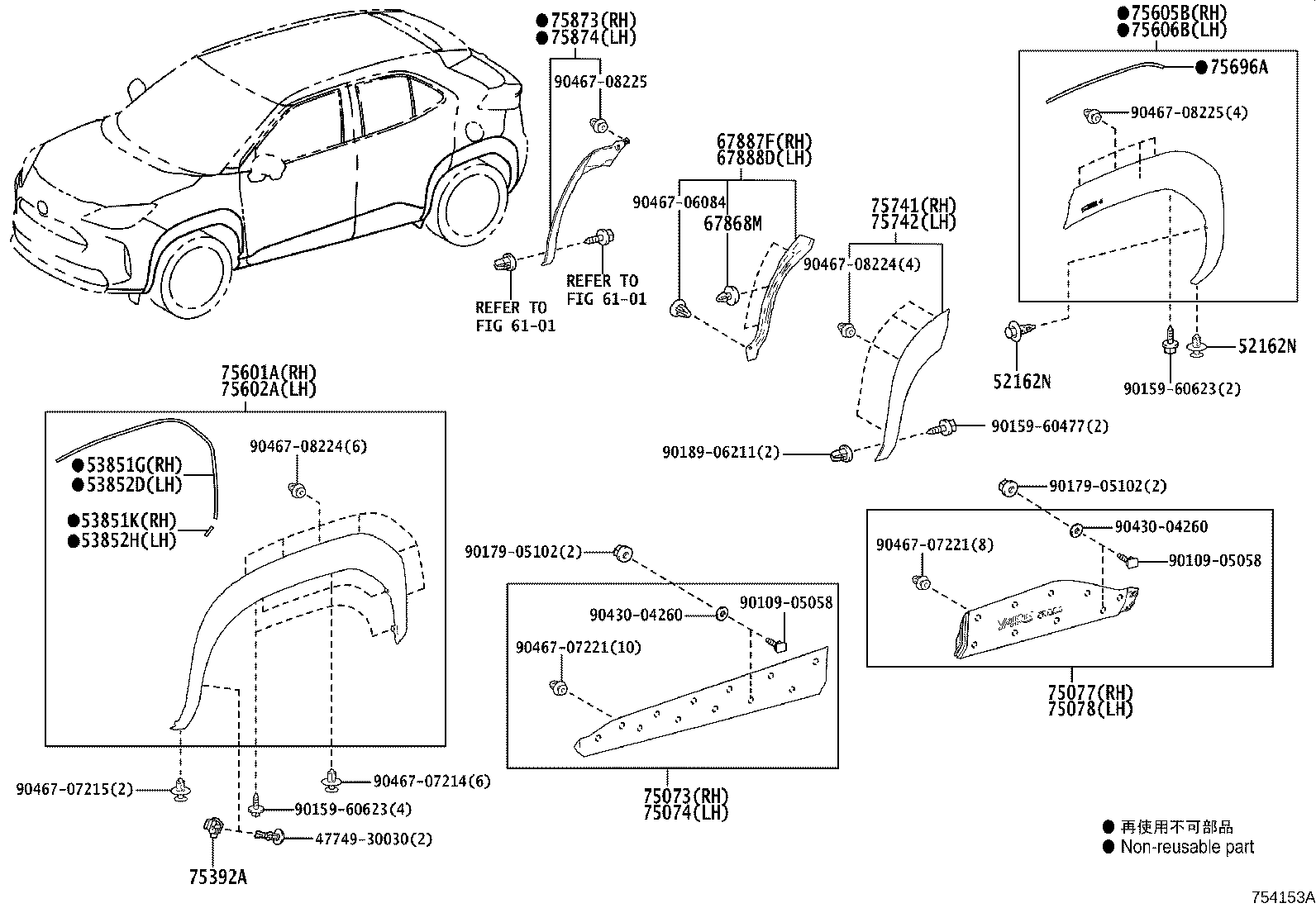

ILLUST NO. 2 OF 3(2008- )G,HBDG,HBDZ,Z
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52162N - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MXPB1#,MXPJ1# |
4 | ||
| 52162N - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MXPB1#,MXPJ1# |
4 | ||
| 53851G - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-52220 |
MXPB1#,MXPJ1# |
1 | ||
| 53851K - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-52260 |
MXPB1#,MXPJ1# |
1 | ||
| 53852D - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53851-52220 |
MXPB1#,MXPJ1# |
1 | ||
| 53852H - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53851-52260 |
MXPB1#,MXPJ1# |
1 | ||
| 67868M - CLIP, DOOR WEATHERSTRIP | ||||
| 67867-12150 |
MXPB1#,MXPJ1# |
6 | ||
| 67887F - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-52030 |
MXPB1#,MXPJ1# |
1 | ||
| 67888D - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-52050 |
MXPB1#,MXPJ1# |
1 | ||
| 75073 - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER RH | ||||
| 75073-52030 |
MXPB1#,MXPJ1# |
1 | ||
| 75074 - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER LH | ||||
| 75074-52030 |
MXPB1#,MXPJ1# |
1 | ||
| 75077 - MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH | ||||
| 75077-52020 |
MXPB1#,MXPJ1#..HBDX,X 塗装不要 |
1 | ||
| 75077-52030 |
MXPB1#,MXPJ1#..G,HBDG,HBDZ,Z 塗装不要 |
1 | ||
| 75078 - MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH | ||||
| 75078-52020 |
MXPB1#,MXPJ1#..HBDX,X 塗装不要 |
1 | ||
| 75078-52030 |
MXPB1#,MXPJ1#..G,HBDG,HBDZ,Z 塗装不要 |
1 | ||
| 75392A - RETAINER, OUTSIDE MOULDING, NO.1 | ||||
| 53879-30060 |
MXPB1#,MXPJ1# |
2 | ||
| 75601A - MOULDING SUB-ASSY, FRONT FENDER, RH | ||||
| 75601-52040 |
MXPB1#,MXPJ1# 塗装不要 |
1 | ||
| 75602A - MOULDING SUB-ASSY, FRONT FENDER, LH | ||||
| 75602-52040 |
MXPB1#,MXPJ1# 塗装不要 |
1 | ||
| 75605B - MOULDING SUB-ASSY, QUARTER OUTSIDE, RH | ||||
| 75605-52090 |
MXPB1#,MXPJ1# 塗装不要 |
1 | ||
| 75606B - MOULDING SUB-ASSY, QUATER OUTSIDE, LH | ||||
| 75606-52090 |
MXPB1#,MXPJ1# 塗装不要 |
1 | ||
| 75696A - PAD, BODY OUTSIDE MOULDING | ||||
| 75696-52010 |
MXPB1#,MXPJ1# |
2 | ||
| 75741 - MOULDING, REAR DOOR, OUTSIDE RH | ||||
| 75087-52010 |
MXPB1#,MXPJ1# 塗装不要 |
1 | ||
| 75742 - MOULDING, REAR DOOR, OUTSIDE LH | ||||
| 75088-52010 |
MXPB1#,MXPJ1# 塗装不要 |
1 | ||
| 75745 - MOULDING, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75745-52090F0 |
MXPB1#,MXPJ1#..G,HBDG,HBDZ,Z BRASS GOLD ME.,2TY ,2UB |
1 | ||
| 75745-52090B1 |
MXPB1#,MXPJ1#..G,HBDG,HBDZ,Z GRAY METALLIC,070 ,1L0 ,209 ,2KR ,2PN ,2SG ,2TU ,2TV ,2TX ,2UR ,3T3 ,4V6 ,5C2 ,8W2 ,8W7 |
1 | ||
| 75746 - MOULDING, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75746-52090F0 |
MXPB1#,MXPJ1#..G,HBDG,HBDZ,Z BRASS GOLD ME.,2TY ,2UB |
1 | ||
| 75746-52090B1 |
MXPB1#,MXPJ1#..G,HBDG,HBDZ,Z GRAY METALLIC,070 ,1L0 ,209 ,2KR ,2PN ,2SG ,2TU ,2TV ,2TX ,2UR ,3T3 ,4V6 ,5C2 ,8W2 ,8W7 |
1 | ||
| 75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH | ||||
| 75873-52010 |
MXPB1#,MXPJ1# |
1 | ||
| 75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH | ||||
| 75874-52010 |
MXPB1#,MXPJ1# |
1 | ||
| Common parts | ||||
| 47749-30030 | ||||
| 90109-05058 | ||||
| 90159-60477 | ||||
| 90159-60623 | ||||
| 90179-05102 | ||||
| 90189-06211 | ||||
| 90430-04260 | ||||
| 90467-06084 | ||||
| 90467-07214 | ||||
| 90467-07215 | ||||
| 90467-07221 | ||||
| 90467-08224 | ||||
| 90467-08225 | ||||
| Linked diagrams | ||||
| 6101 | ||||

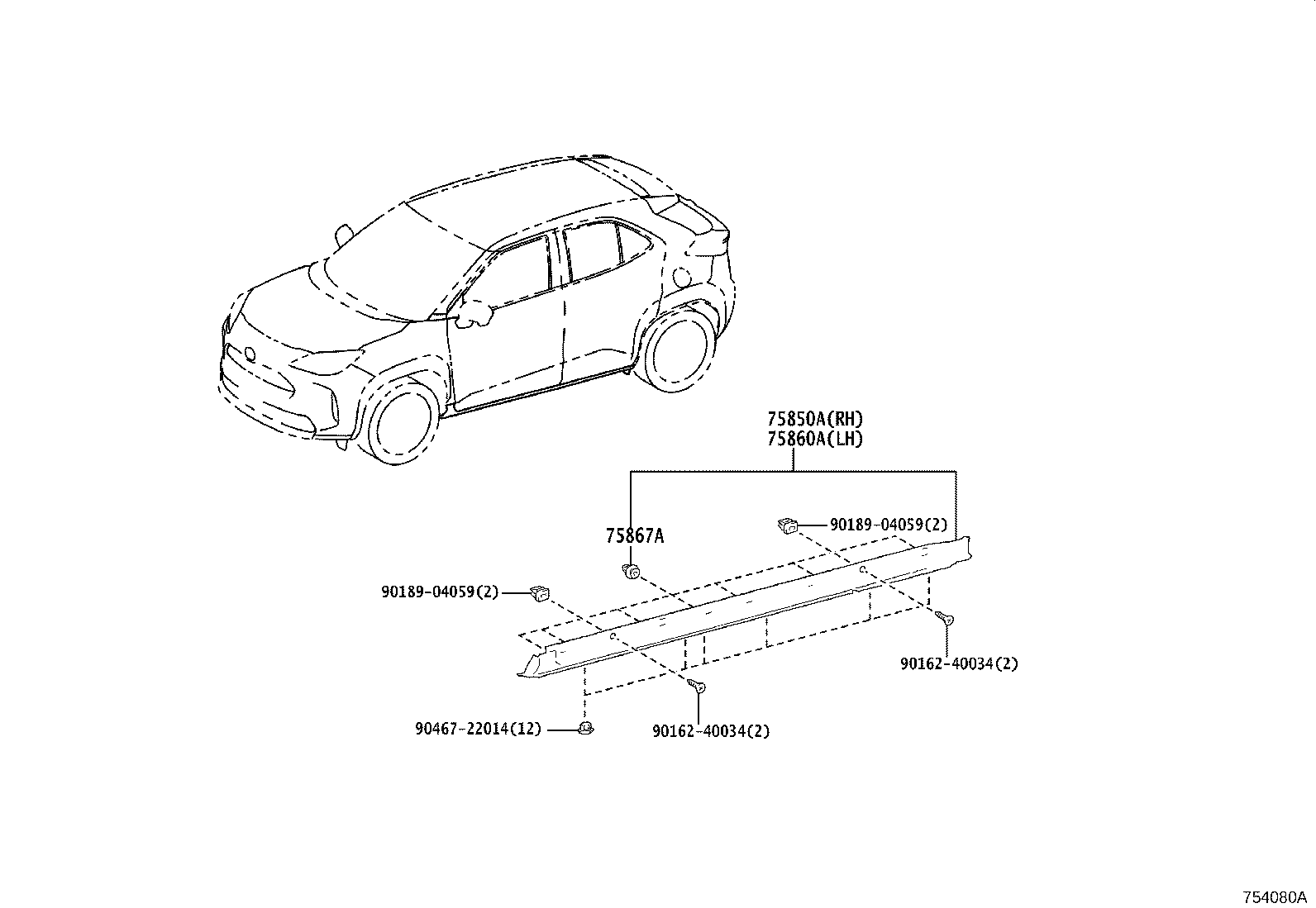

ILLUST NO. 3 OF 3(2008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75850A - MOULDING ASSY, BODY ROCKER PANEL, RH | ||||
| 75850-52090 |
MXPB1#,MXPJ1# |
1 | ||
| 75860A - MOULDING ASSY, BODY ROCKER PANEL, LH | ||||
| 75860-52090 |
MXPB1#,MXPJ1# |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-30130 |
MXPB1#,MXPJ1# |
14 | ||
| Common parts | ||||
| 90162-40034 | ||||
| 90189-04059 | ||||
| 90467-22014 | ||||
ILLUST NO. 2 OF 3(2008- )HBDX,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52162N - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MXPB1#,MXPJ1# |
4 | ||
| 52162N - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MXPB1#,MXPJ1# |
4 | ||
| 53851G - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-52220 |
MXPB1#,MXPJ1# |
1 | ||
| 53851K - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-52260 |
MXPB1#,MXPJ1# |
1 | ||
| 53852D - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53851-52220 |
MXPB1#,MXPJ1# |
1 | ||
| 53852H - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53851-52260 |
MXPB1#,MXPJ1# |
1 | ||
| 67868M - CLIP, DOOR WEATHERSTRIP | ||||
| 67867-12150 |
MXPB1#,MXPJ1# |
6 | ||
| 67887F - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-52030 |
MXPB1#,MXPJ1# |
1 | ||
| 67888D - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-52050 |
MXPB1#,MXPJ1# |
1 | ||
| 75073 - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER RH | ||||
| 75073-52030 |
MXPB1#,MXPJ1# |
1 | ||
| 75074 - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER LH | ||||
| 75074-52030 |
MXPB1#,MXPJ1# |
1 | ||
| 75077 - MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH | ||||
| 75077-52020 |
MXPB1#,MXPJ1#..HBDX,X 塗装不要 |
1 | ||
| 75077-52030 |
MXPB1#,MXPJ1#..G,HBDG,HBDZ,Z 塗装不要 |
1 | ||
| 75078 - MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH | ||||
| 75078-52020 |
MXPB1#,MXPJ1#..HBDX,X 塗装不要 |
1 | ||
| 75078-52030 |
MXPB1#,MXPJ1#..G,HBDG,HBDZ,Z 塗装不要 |
1 | ||
| 75392A - RETAINER, OUTSIDE MOULDING, NO.1 | ||||
| 53879-30060 |
MXPB1#,MXPJ1# |
2 | ||
| 75601A - MOULDING SUB-ASSY, FRONT FENDER, RH | ||||
| 75601-52040 |
MXPB1#,MXPJ1# 塗装不要 |
1 | ||
| 75602A - MOULDING SUB-ASSY, FRONT FENDER, LH | ||||
| 75602-52040 |
MXPB1#,MXPJ1# 塗装不要 |
1 | ||
| 75605B - MOULDING SUB-ASSY, QUARTER OUTSIDE, RH | ||||
| 75605-52090 |
MXPB1#,MXPJ1# 塗装不要 |
1 | ||
| 75606B - MOULDING SUB-ASSY, QUATER OUTSIDE, LH | ||||
| 75606-52090 |
MXPB1#,MXPJ1# 塗装不要 |
1 | ||
| 75696A - PAD, BODY OUTSIDE MOULDING | ||||
| 75696-52010 |
MXPB1#,MXPJ1# |
2 | ||
| 75741 - MOULDING, REAR DOOR, OUTSIDE RH | ||||
| 75087-52010 |
MXPB1#,MXPJ1# 塗装不要 |
1 | ||
| 75742 - MOULDING, REAR DOOR, OUTSIDE LH | ||||
| 75088-52010 |
MXPB1#,MXPJ1# 塗装不要 |
1 | ||
| 75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH | ||||
| 75873-52010 |
MXPB1#,MXPJ1# |
1 | ||
| 75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH | ||||
| 75874-52010 |
MXPB1#,MXPJ1# |
1 | ||
| Common parts | ||||
| 47749-30030 | ||||
| 90109-05058 | ||||
| 90159-60477 | ||||
| 90159-60623 | ||||
| 90179-05102 | ||||
| 90189-06211 | ||||
| 90430-04260 | ||||
| 90467-06084 | ||||
| 90467-07214 | ||||
| 90467-07215 | ||||
| 90467-07221 | ||||
| 90467-08224 | ||||
| 90467-08225 | ||||
| Linked diagrams | ||||
| 6101 | ||||
