MXPJ15-BHXNB (2020)
Toyota Yaris Cross
Production
Aug 2020
-
Sep 9999
Engine
M15AFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2008- )MXPJ1#

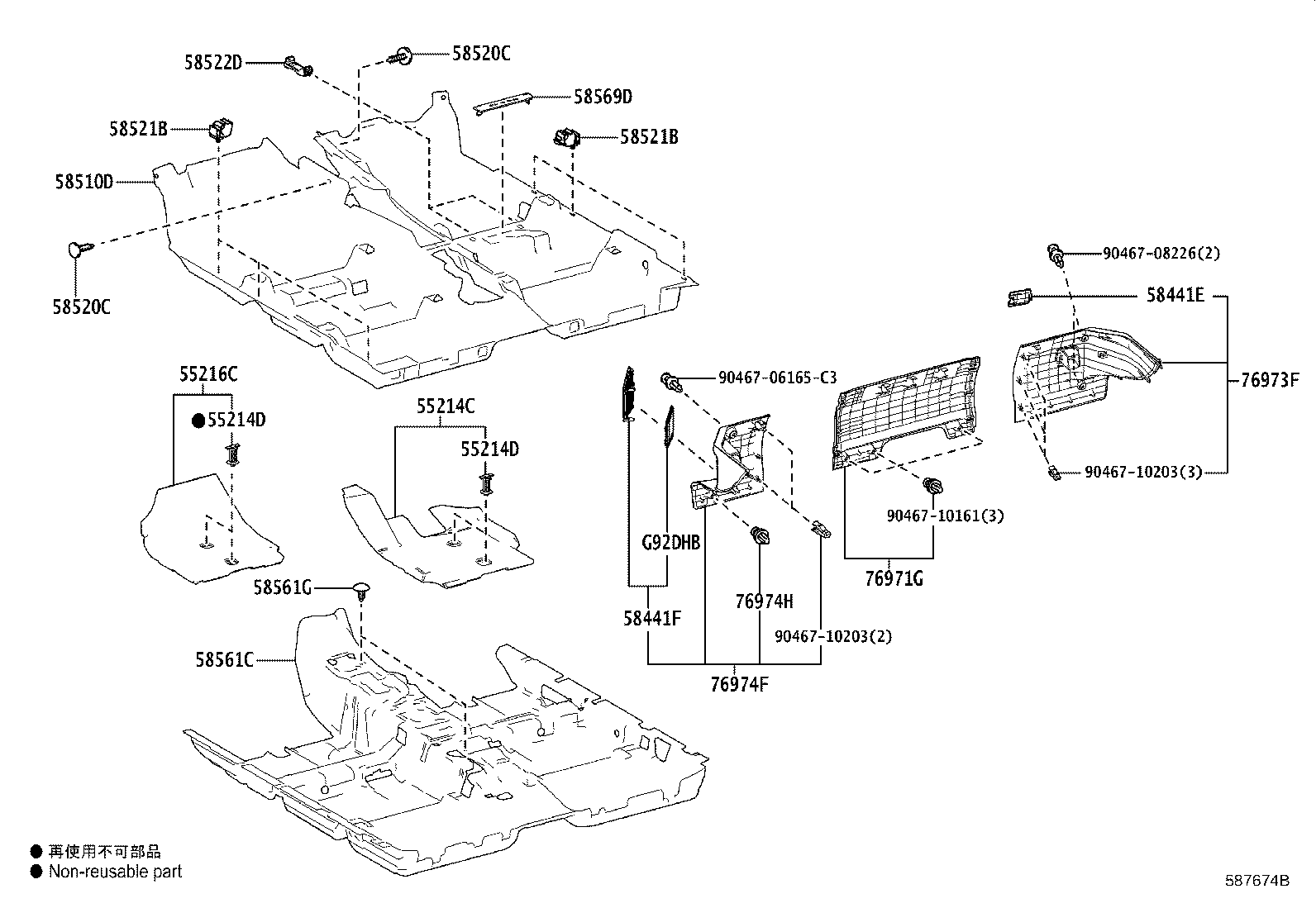

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55214C - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-52220 |
MXPB1#,MXPJ1# 寒冷地仕様 |
1 | ||
| 55214-52210 |
MXPB1#,MXPJ1# |
1 | ||
| 55214D - CLIP(FOR DASH PANEL INSULATOR PAD) | ||||
| 58198-52020 |
MXPB1#,MXPJ1# |
4 | ||
| 58198-52040 |
MXPB1#,MXPJ1# |
4 | ||
| 55214D - CLIP(FOR DASH PANEL INSULATOR PAD) | ||||
| 58198-52020 |
MXPB1#,MXPJ1# |
4 | ||
| 58198-52040 |
MXPB1#,MXPJ1# |
4 | ||
| 55216C - PAD, DASH PANEL INSULATOR, NO.4 | ||||
| 55216-52080 |
MXPB1#,MXPJ1# 寒冷地仕様 |
1 | ||
| 55216-52070 |
MXPB1#,MXPJ1# |
1 | ||
| 58441E - COVER, BATTERY SERVICE HOLE | ||||
| 58441-52020C1 |
MXPJ1#..HBDG BLACK,TRIM4#,6# |
1 | ||
| 58441F - COVER, BATTERY SERVICE HOLE | ||||
| 58441-K0010C0 |
MXPJ1#..HBDG BLACK,TRIM4#,6# |
1 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-K0090C1 |
MXPJ1#..HBDG BLACK,TRIM4#,6# |
1 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-0704923 |
MXPJ1#..HBDG BLACK,TRIM4#,6# |
2 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-0704923 |
MXPJ1#..HBDG BLACK,TRIM4#,6# |
2 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-33060 |
MXPB1#,MXPJ1# |
6 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-33060 |
MXPB1#,MXPJ1# |
6 | ||
| 58522D - HOOK, FLOOR CARPET, NO.2 | ||||
| 58522-52030 |
MXPB1#,MXPJ1# |
2 | ||
| 58561C - SILENCER, FRONT FLOOR, NO.1 | ||||
| 58561-K0060 |
MXPJ1#..HBDG,HBDX |
1 | ||
| 58561G - CLIP(FOR FRONT FLOOR SILENCER) | ||||
| 90467-07042C4 |
MXPB1#,MXPJ1# BLACK |
2 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-47020C1 |
MXPB1#,MXPJ1#..HBDX,X BLACK,TRIM2# |
1 | ||
| 58569-47020C1 |
MXPB1#,MXPJ1#..G,HBDG BLACK,TRIM4#,6# |
1 | ||
| 76971G - COVER, REAR UNDER | ||||
| 76971-K0010C0 |
MXPJ1#..HBDG BLACK,TRIM4#,6# |
1 | ||
| 76973F - COVER, REAR UNDER SIDE, RH | ||||
| 76973-K0010C0 |
MXPJ1#..HBDG BLACK,TRIM4#,6# |
1 | ||
| 76974F - COVER, REAR UNDER SIDE, LH | ||||
| 76974-K0010C0 |
MXPJ1#..HBDG BLACK,TRIM4#,6# |
1 | ||
| 76974H - CLIP, REAR UNDER SIDE COVER, LH | ||||
| 90467-10161 |
MXPJ1# |
1 | ||
| G92DHB - FILTER, HV BATTERY INTAKE, NO.1 | ||||
| G92DH-K0010 |
MXPJ1# |
1 | ||
| Common parts | ||||
| 90467-06165C3 | ||||
| 90467-08226 | ||||
| 90467-10161 | ||||
| 90467-10203 | ||||
