MXPJ15-BHXNB (2020)

Toyota Yaris Cross

Production Aug 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

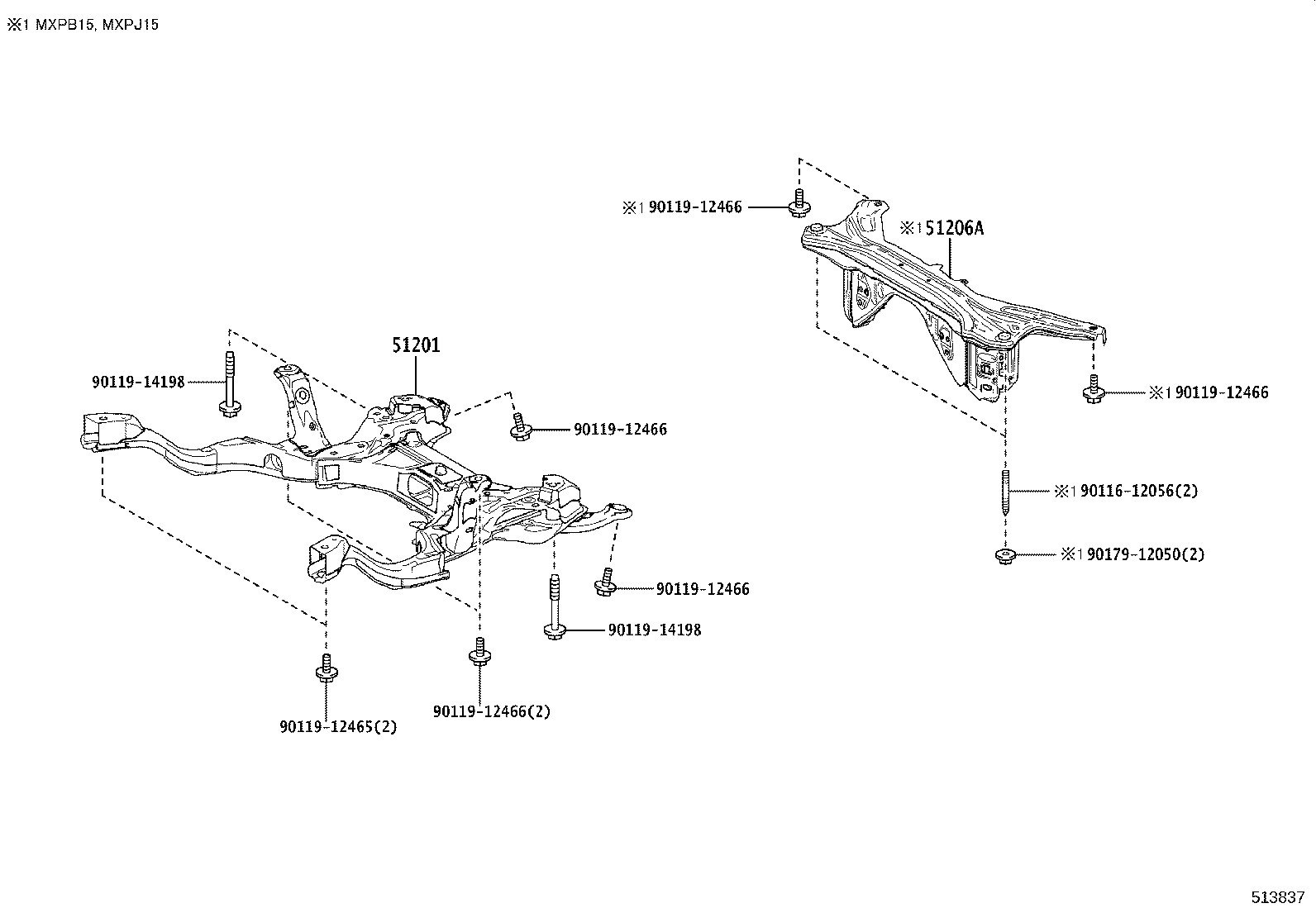

ILLUST NO. 1 OF 3(2008- )

Click highlighted areas on diagram

ｻｽﾍﾟﾝｼｮﾝｸﾛｽﾒﾝﾊﾞ

diagram 51201 51206A 9011612056 9011912465 9011912466 9011912466 9011912466 9011912466 9011912466 9011914198 9011914198 9017912050
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-52180

MXPB1#,MXPJ1#

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-K0020

MXPJ15

 1
Common parts
90116-12056
90119-12465
90119-12466
90119-14198
90179-12050

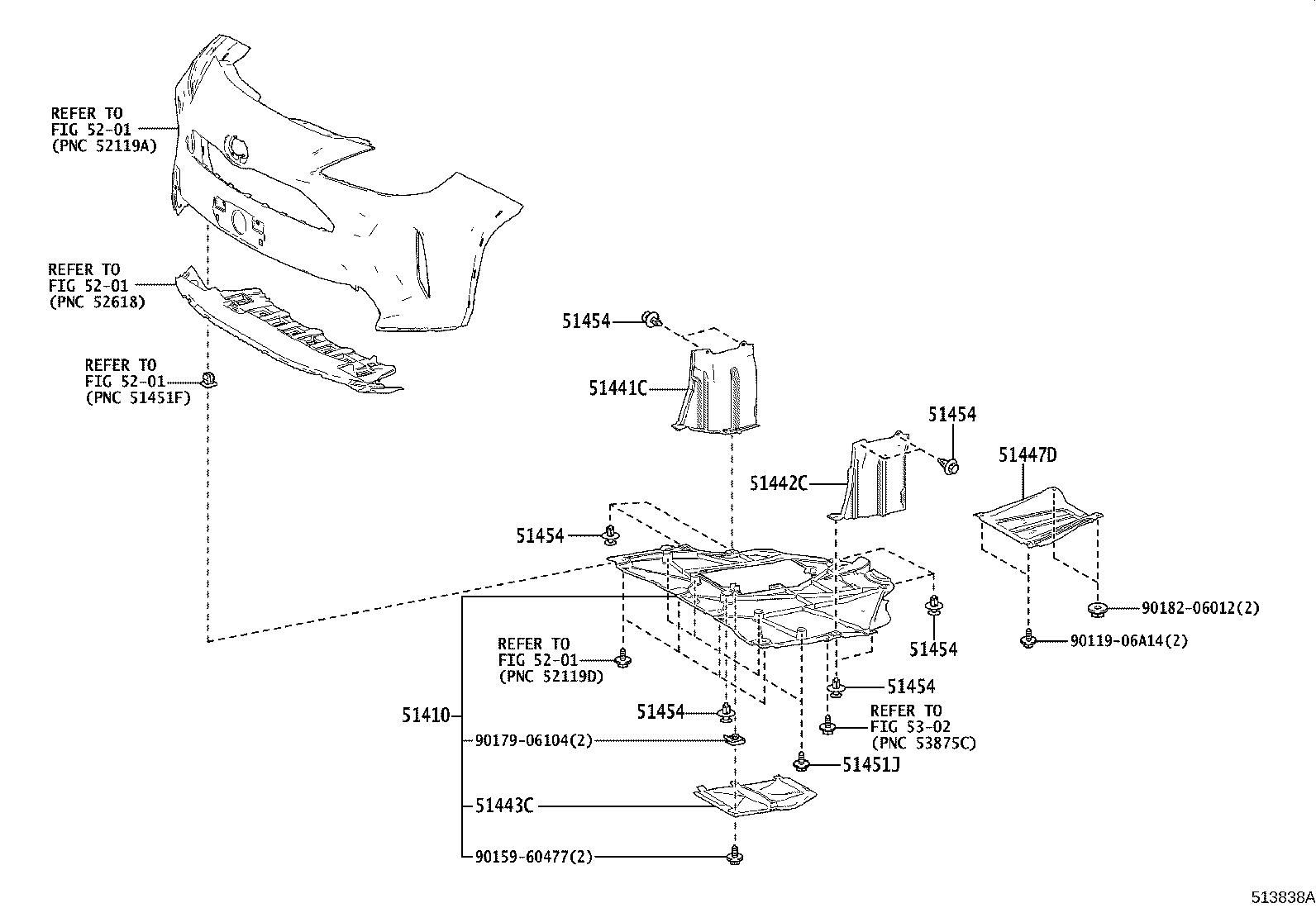

ILLUST NO. 2 OF 3(2008- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝｱﾝﾀﾞｶﾊﾞｰ

diagram 51410 51441C 51442C 51443C 51447D 51451J 51454 51454 51454 51454 51454 51454 5201 5201 5201 5201 5302 9011906A14 9015960477 9017906104 9018206012
Part # Description Qty Price
51410 - COVER ASSY, ENGINE UNDER, NO.1
51410-K0020

MXPB1#,MXPJ1#

 1
51441C - COVER, ENGINE UNDER, RH
51441-K0020

MXPB1#,MXPJ1#

 1
51442C - COVER, ENGINE UNDER, LH
51442-K0020

MXPB1#,MXPJ1#

 1
51443C - COVER, ENGINE UNDER, REAR RH
51443-K0010

MXPB1#,MXPJ1#

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-52060

MXPB1#,MXPJ1#

 1
51451J - BOLT, NO.1
90119-06A13

MXPB1#,MXPJ1#

 4
51454 - CLIP
90467-07220

MXPB1#,MXPJ1#

 11
51454 - CLIP
90467-07220

MXPB1#,MXPJ1#

 11
51454 - CLIP
90467-07220

MXPB1#,MXPJ1#

 11
51454 - CLIP
90467-07220

MXPB1#,MXPJ1#

 11
51454 - CLIP
90467-07220

MXPB1#,MXPJ1#

 11
51454 - CLIP
90467-07220

MXPB1#,MXPJ1#

 11
Common parts
90119-06A14
90159-60477
90179-06104
90182-06012
Linked diagrams
5201
5302

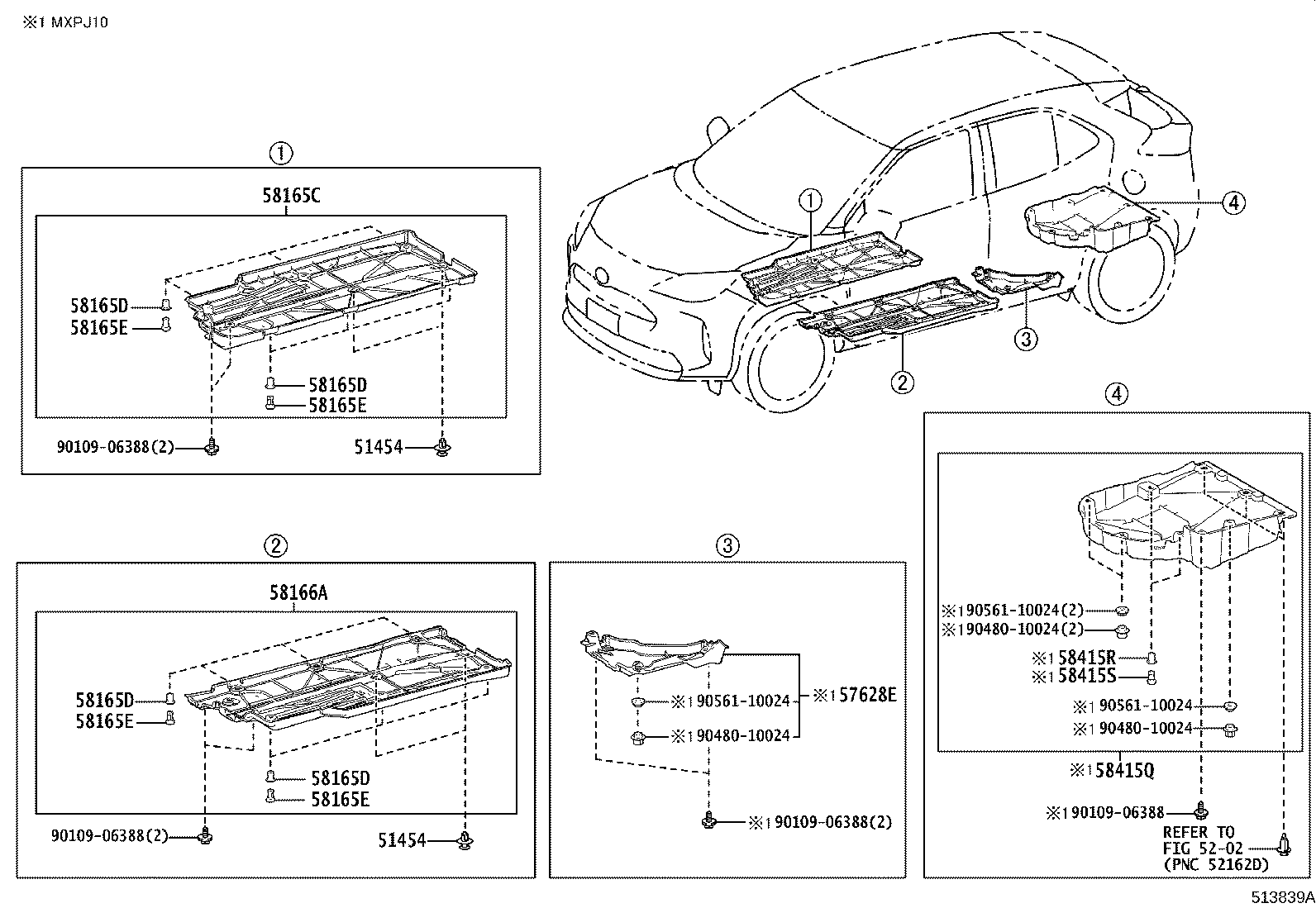

ILLUST NO. 3 OF 3(2008- )MXPJ1#

Click highlighted areas on diagram

ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ

diagram 51454 51454 5202 57628E 58165C 58165D 58165D 58165D 58165D 58165E 58165E 58165E 58165E 58166A 58415Q 58415R 58415S 9010906388 9010906388 9010906388 9010906388 9048010024 9048010024 9048010024 9056110024 9056110024 9056110024
Part # Description Qty Price
51454 - CLIP
90467-07220

MXPB1#,MXPJ1#

 11
51454 - CLIP
90467-07220

MXPB1#,MXPJ1#

 11
58165C - COVER, FRONT FLOOR, RH
58165-K0020

MXPJ1#

 1
58165D - CLIP, FLOOR COVER
90467-17026A0

MXPJ1#

SUPER WHITE 2

 12
58165D - CLIP, FLOOR COVER
90467-17026A0

MXPJ1#

SUPER WHITE 2

 12
58165D - CLIP, FLOOR COVER
90467-17026A0

MXPJ1#

SUPER WHITE 2

 12
58165D - CLIP, FLOOR COVER
90467-17026A0

MXPJ1#

SUPER WHITE 2

 12
58165E - CLIP, FLOOR COVER
90467-17027C0

MXPJ1#

BLACK

 12
58165E - CLIP, FLOOR COVER
90467-17027C0

MXPJ1#

BLACK

 12
58165E - CLIP, FLOOR COVER
90467-17027C0

MXPJ1#

BLACK

 12
58165E - CLIP, FLOOR COVER
90467-17027C0

MXPJ1#

BLACK

 12
58166A - COVER, FRONT FLOOR, LH
58166-K0020

MXPJ1#

 1
Common parts
90109-06388
90480-10024
90561-10024
Linked diagrams
5202
