MXPJ15-BHXNB (2020)

Toyota Yaris Cross

Production Aug 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )M15AFXE

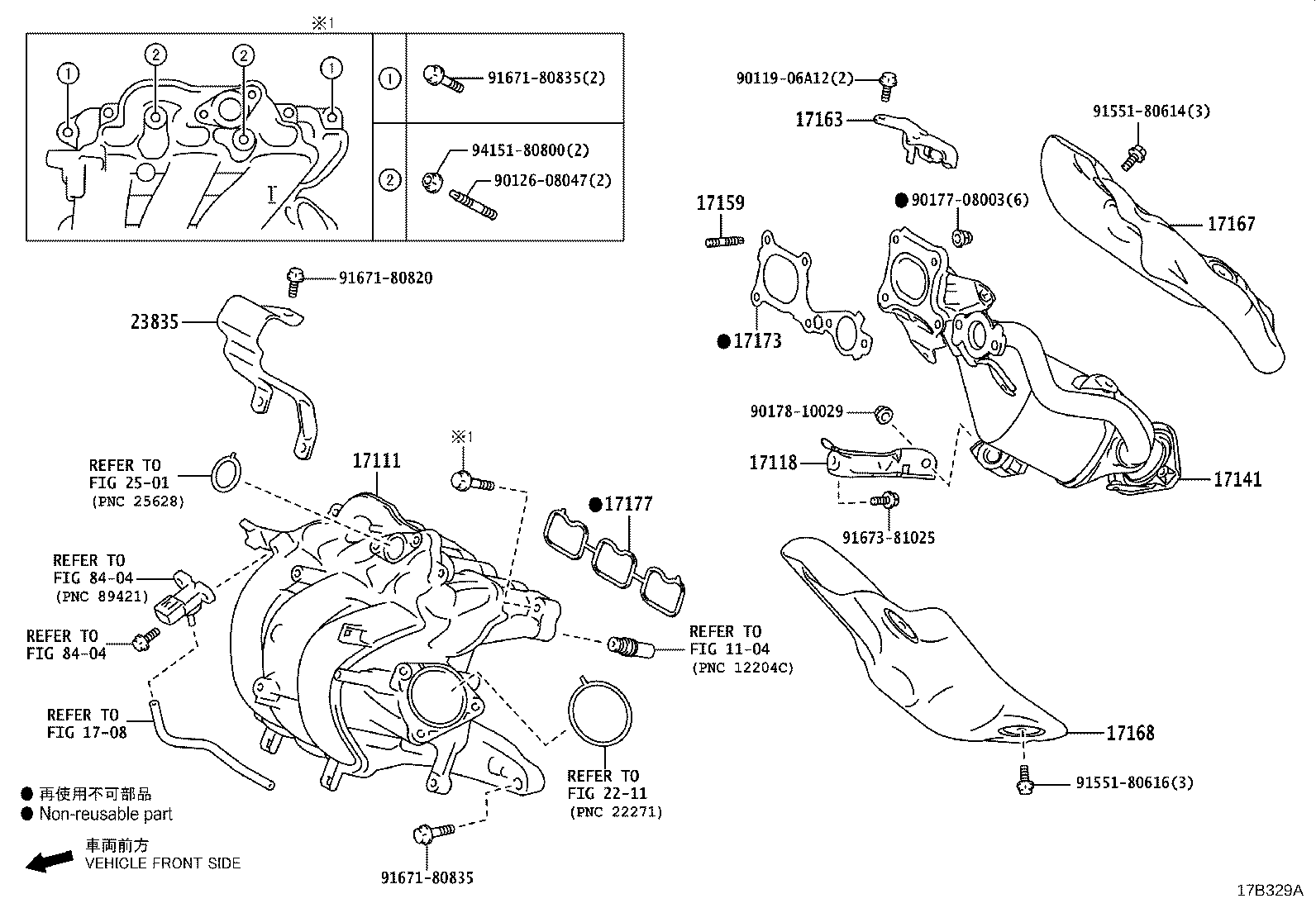

Click highlighted areas on diagram

diagram 1104 1708 17111 17118 17141 17159 17163 17167 17168 17173 17177 2211 23835 2501 8404 8404 9011906A12 9012608047 9017708003 9017810029 9155180614 9155180616 9167180820 9167180835 9167180835 9167381025 9415180800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-15130

M15AFXE..MXPJ1#

 1
17118 - STAY, MANIFOLD
17118-15090

M15#..MXPB1#,MXPJ1#

 1
17141 - MANIFOLD, EXHAUST
17141-15180

M15#..MXPB10,MXPJ1#

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

M15#..MXPB1#,MXPJ1#

 6
17163 - BRACKET, HEAT INSULATOR, NO.1
17163-15010

M15#..MXPB1#,MXPJ1#

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-15100

M15#..MXPB10,MXPJ1#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-15040

M15#..MXPB10,MXPJ1#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15050

M15#..MXPB1#,MXPJ1#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-15040

M15#..MXPB1#,MXPJ1#

 1
23835 - GUARD, FUEL DELIVERY, NO.2
23835-15010

M15AFXE..MXPJ1#

 1
Common parts
90119-06A12
90126-08047
90177-08003
90178-10029
91551-80614
91551-80616
91671-80820
91671-80835
91673-81025
94151-80800
