MXPJ10-BHXNB (2020)
Toyota Yaris Cross
Production
Aug 2020
-
Sep 9999
Engine
M15AFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2008- )MXPJ10

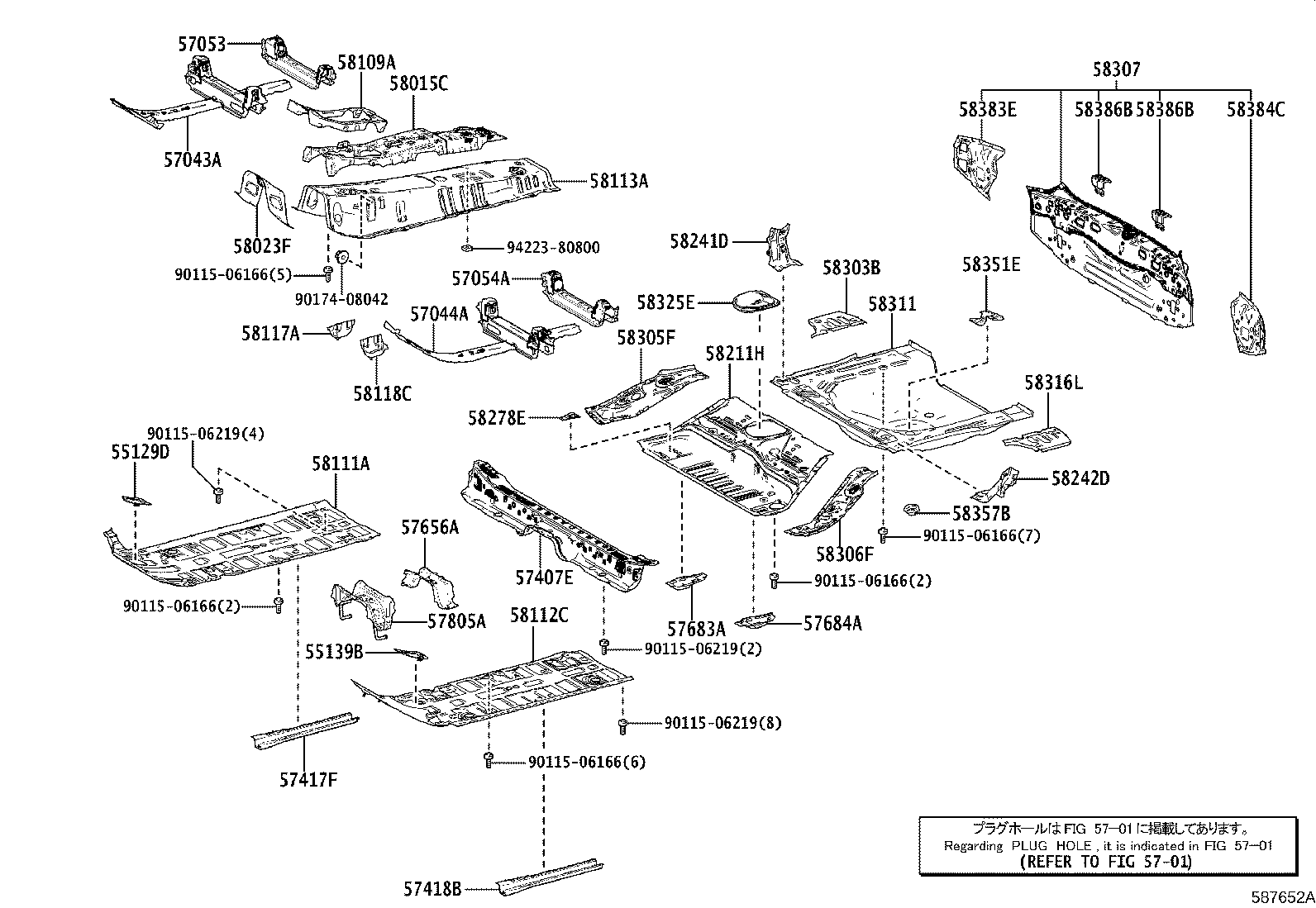

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55129D - COVER, DASH PANEL HOLE, RH | ||||
| 55129-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 55139B - COVER, DASH PANEL HOLE, LH | ||||
| 55139-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-52070 |
MXPB1#,MXPJ1# |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-52080 |
MXPB1#,MXPJ1# |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57407E - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-K0020 |
MXPJ1# |
1 | ||
| 57417F - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1 | ||||
| 57656-K0030 |
MXPB10,MXPJ1# |
1 | ||
| 57683A - BRACKET, FUEL TANK MOUNTING, NO.1 | ||||
| 57683-K0020 |
MXPJ1# |
1 | ||
| 57684A - BRACKET, FUEL TANK MOUNTING, NO.2 | ||||
| 57684-K0020 |
MXPJ1# |
1 | ||
| 57805A - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1 | ||||
| 57805-K0030 |
MXPB10,MXPJ1# |
1 | ||
| 58015C - PANEL SUB-ASSY, FRONT FLOOR HOUSING | ||||
| 58015-K0010 |
MXPB10,MXPJ1# |
1 | ||
| 58023F - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 58023-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 58109A - RETAINER SUB-ASSY, PARKING BRAKE | ||||
| 58109-52020 |
MXPB1#,MXPJ1# |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-52300 |
MXPB10,MXPJ1# |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-52090 |
MXPB1#,MXPJ1# |
1 | ||
| 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58118-52040 |
MXPB1#,MXPJ1# |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-K0020 |
MXPJ1# |
1 | ||
| 58241D - GUSSET, WHEELHOUSE INNER, FRONT RH | ||||
| 58241-52050 |
MXPB10,MXPJ10 |
1 | ||
| 58242D - GUSSET, WHEELHOUSE INNER, FRONT LH | ||||
| 58242-52040 |
MXPB10,MXPJ10 |
1 | ||
| 58278E - REINFORCEMENT, SIDE FLOOR, NO.2 | ||||
| 58278-K0010 |
MXPJ1# |
1 | ||
| 58303B - STEP SUB-ASSY, REAR FLOOR, RH | ||||
| 58303-52050 |
MXPB1#,MXPJ1# |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-K0020 |
MXPJ1# |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58306-K0020 |
MXPJ1# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-52710 |
MXPB1#,MXPJ10 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52310 |
MXPB10,MXPJ10 |
1 | ||
| 58316L - EXTENSION, REAR FLOOR SIDE PANEL, REAR | ||||
| 58316-52230 |
MXPB1#,MXPJ1# |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-K0020 |
MXPJ1# |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-12060 |
MXPB1#,MXPJ10 |
1 | ||
| 58357B - BRACKET, ACTUATOR COVER, NO.3 RH | ||||
| 58357-52090 |
MXPB10,MXPJ10 |
1 | ||
| 58383E - REINFORCEMENT, BODY LOWER BACK, NO.2 RH | ||||
| 58383-52090 |
MXPB1#,MXPJ10 |
1 | ||
| 58384C - REINFORCEMENT, BODY LOWER BACK, NO.2 LH | ||||
| 58384-52200 |
MXPB1#,MXPJ10 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
MXPB1#,MXPJ1# |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
MXPB1#,MXPJ1# |
2 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90174-08042 | ||||
| 94223-80800 | ||||
| Linked diagrams | ||||
| 5701 | ||||
