MXPB15-BHXRB (2020)
Toyota Yaris Cross
Production
Aug 2020
-
Sep 9999
Engine
M15AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2008- )MXPB15

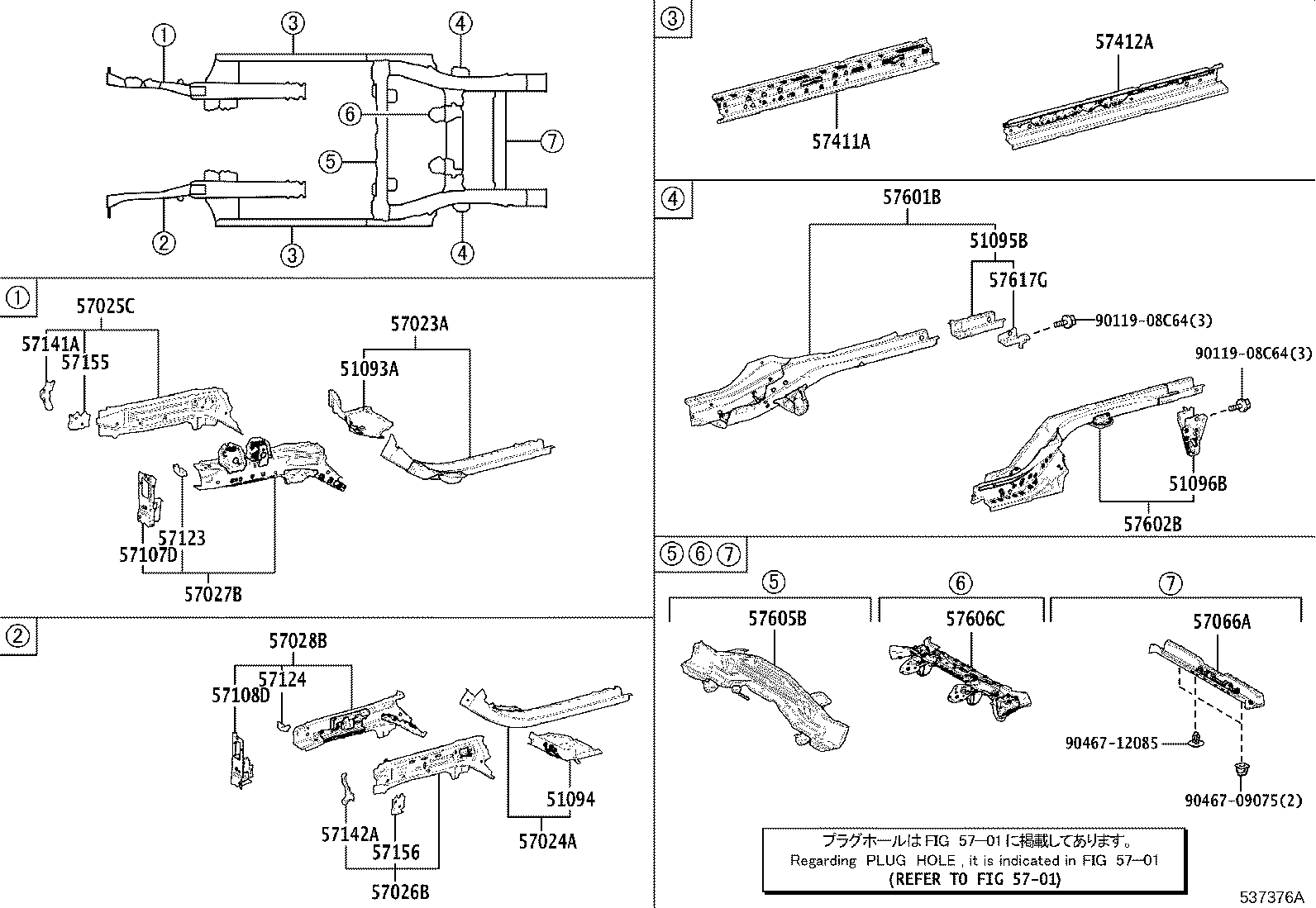

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51093A - HOOK SUB-ASSY, TRANSPORT, FRONT RH | ||||
| 51093-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 51094 - HOOK SUB-ASSY, TRANSPORT, FRONT LH | ||||
| 51094-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH | ||||
| 51095-52060 |
MXPB1#,MXPJ1# |
1 | ||
| 51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH | ||||
| 51096-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57023A - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57024A - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-52020 |
MXPB1#,MXPJ1# |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57066A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-K0010 |
MXPB15,MXPJ15 |
1 | ||
| 57107D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH | ||||
| 57107-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57108D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH | ||||
| 57108-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57123 - SUPPORT, FRONT SIDE MEMBER, RH | ||||
| 57123-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57124 - SUPPORT, FRONT SIDE MEMBER, LH | ||||
| 57124-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57142A - SUPPORT, FRONT BUMPER ARM, LH | ||||
| 57142-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-52260 |
MXPB1#,MXPJ1# |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-52310 |
MXPB1#,MXPJ1# |
1 | ||
| 57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH | ||||
| 57601-52450 |
MXPB15,MXPJ15 |
1 | ||
| 57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH | ||||
| 57602-52540 |
MXPB15,MXPJ15 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-K0050 |
MXPB15 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-K0030 |
MXPB15,MXPJ15 |
1 | ||
| 57617G - RETAINER, REAR BUMPER ARM | ||||
| 57617-K0010 |
MXPB1#,MXPJ1# |
1 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90467-09075 | ||||
| 90467-12085 | ||||
| Linked diagrams | ||||
| 5701 | ||||
