MXPB10-BHXRB (2020)

Toyota Yaris Cross

Production Aug 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )MXPB1#

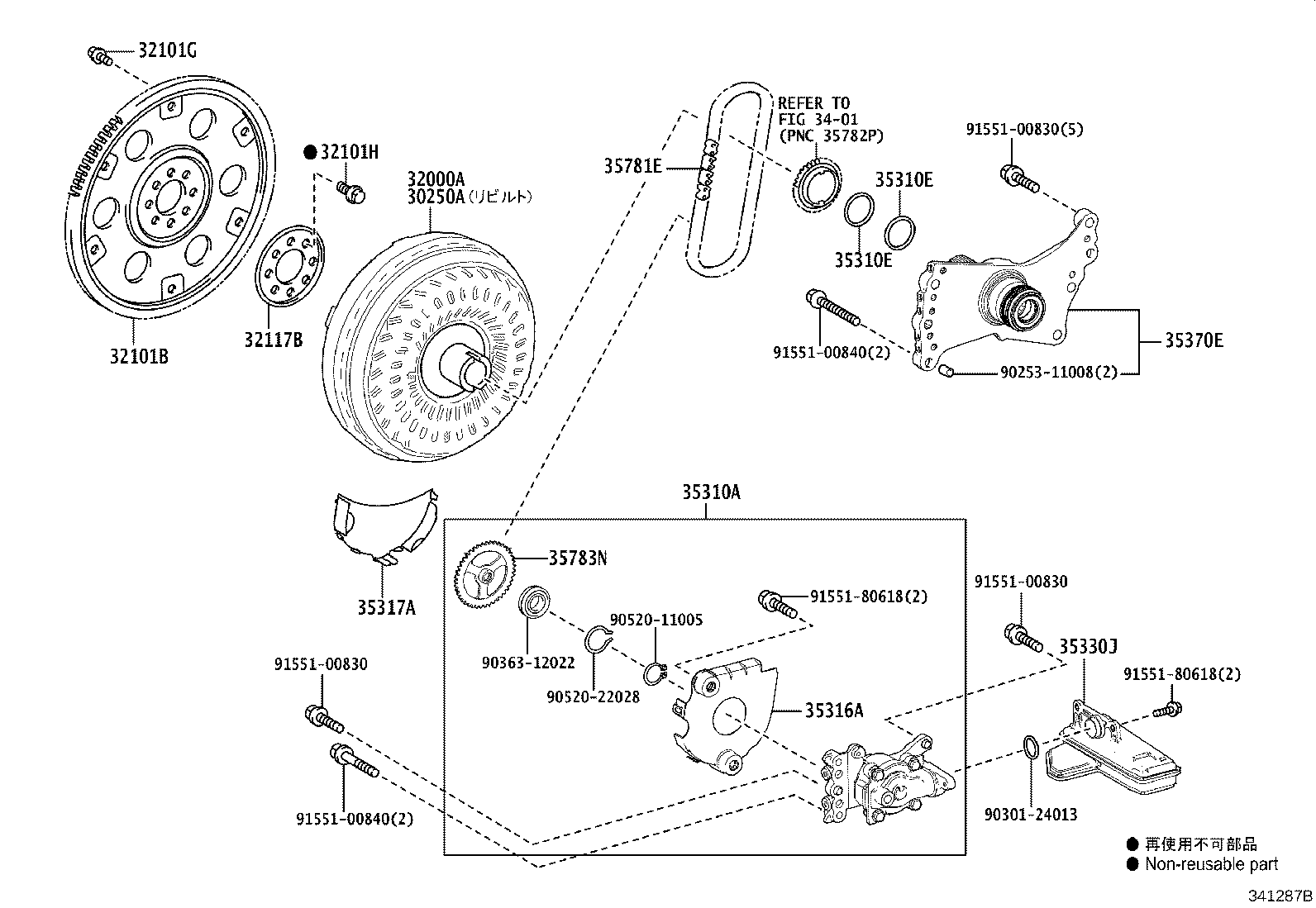

Click highlighted areas on diagram

K320,K320F

diagram 30250A 32000A 32101B 32101G 32101H 32117B 3401 35310A 35310E 35310E 35316A 35317A 35330J 35370E 35781E 35783N 9025311008 9030124013 9036312022 9052011005 9052022028 9155100830 9155100830 9155100830 9155100840 9155100840 9155180618 9155180618
Part # Description Qty Price
30250A - CONVERTER ASSY, TORQUE, REBUILT
30250-52260

MXPB1#

 1
32000A - CONVERTER ASSY, TORQUE
32000-52260

MXPB1#

 1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-52100

MXPB1#

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08498

MXPB1#

*8−1.25PX12−8,ｼﾙﾊﾞ− ﾎﾜｲﾄ

 5
90109-08113

MXPB1#

*8−1.25PX12−8.4,ﾌﾞﾗｯｸ

 1
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-12404

MXPB1#

 8
32117B - SPACER, DRIVE PLATE, REAR
32117-33010

MXPB1#

 1
35310A - PUMP ASSY, FRONT OIL
35300-12020

MXPB1#

 1
35300-52050

MXPB1#

 1
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-K0010

MXPB1#

 2
35617-12080

MXPB1#

 2
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-K0010

MXPB1#

 2
35617-12080

MXPB1#

 2
35316A - PLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1
35316-12020

MXPB1#

 1
35317A - PLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2
35317-12020

MXPB1#

 1
35330J - STRAINER ASSY, OIL
35330-K0020

MXPB1#

 1
35330-12070

MXPB1#

 1
35370E - SHAFT ASSY, STATOR (CVT)
35370-K0010

MXPB1#

 1
35781E - CHAIN, TRANSMISSION DRIVE
35781-12010

MXPB1#

 1
35783N - SPROCKET, DRIVEN
35783-12060

MXPB1#

 1
Common parts
90253-11008
90301-24013
90363-12022
90520-11005
90520-22028
91551-00830
91551-00840
91551-80618
Linked diagrams
3401
