MXPB10-BHXRB (2020)

Toyota Yaris Cross

Production Aug 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )MXPB1#

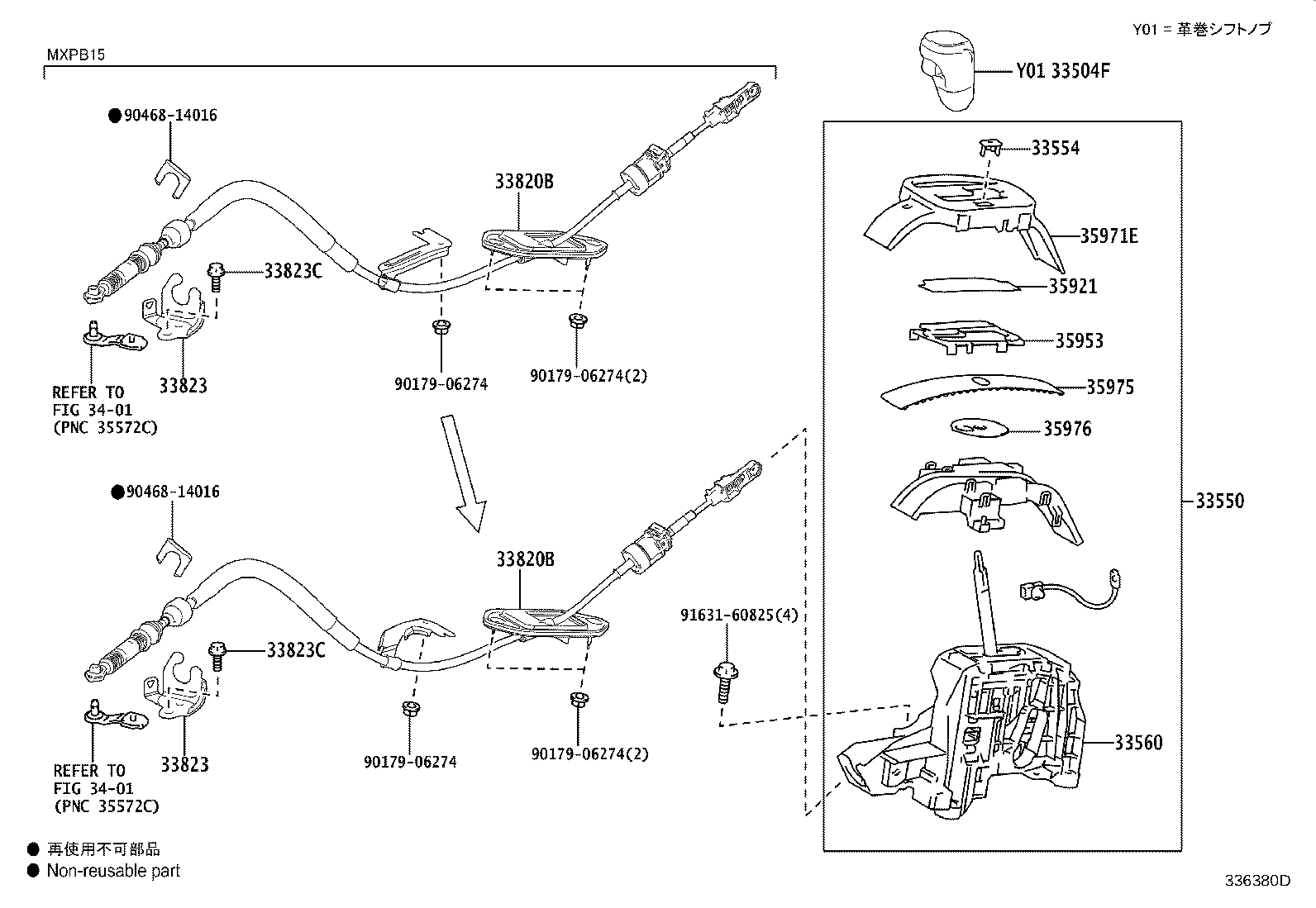

Click highlighted areas on diagram

diagram 33504F 33550 33554 33560 33820B 33820B 33823 33823 33823C 33823C 3401 3401 35921 35953 35971E 35975 35976 9017906274 9017906274 9017906274 9017906274 9046814016 9046814016 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-K0030C0

MXPB1#,MXPJ1#..HBDX,X

BLACK,TRIM2#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-K0090

MXPB1#

 1
33554 - CAP, SHIFT LEVER
33554-K0030

MXPB1#,MXPJ1#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-K0050

MXPB1#

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-K0070

MXPB10

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-K0070

MXPB10

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-K0040

MXPB1#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-K0040

MXPB1#

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91671-80820

MXPB1#,MXPJ1#

 2
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91671-80820

MXPB1#,MXPJ1#

 2
35921 - PLATE, CONTROL POSITION INDICATOR
35921-K0060

MXPB1#

 1
35953 - GUIDE, POSITION INDICATOR LIGHT
35953-K0020

MXPB1#

 1
35971E - HOUSING, POSITION INDICATOR
35971-K0040

MXPB1#

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-K0040

MXPB1#

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-K0020

MXPB1#

 1
Common parts
90179-06274
90468-14016
91631-60825
Linked diagrams
3401
