MXPB10-BHXRB (2020)

Toyota Yaris Cross

Production Aug 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )M15AFKS

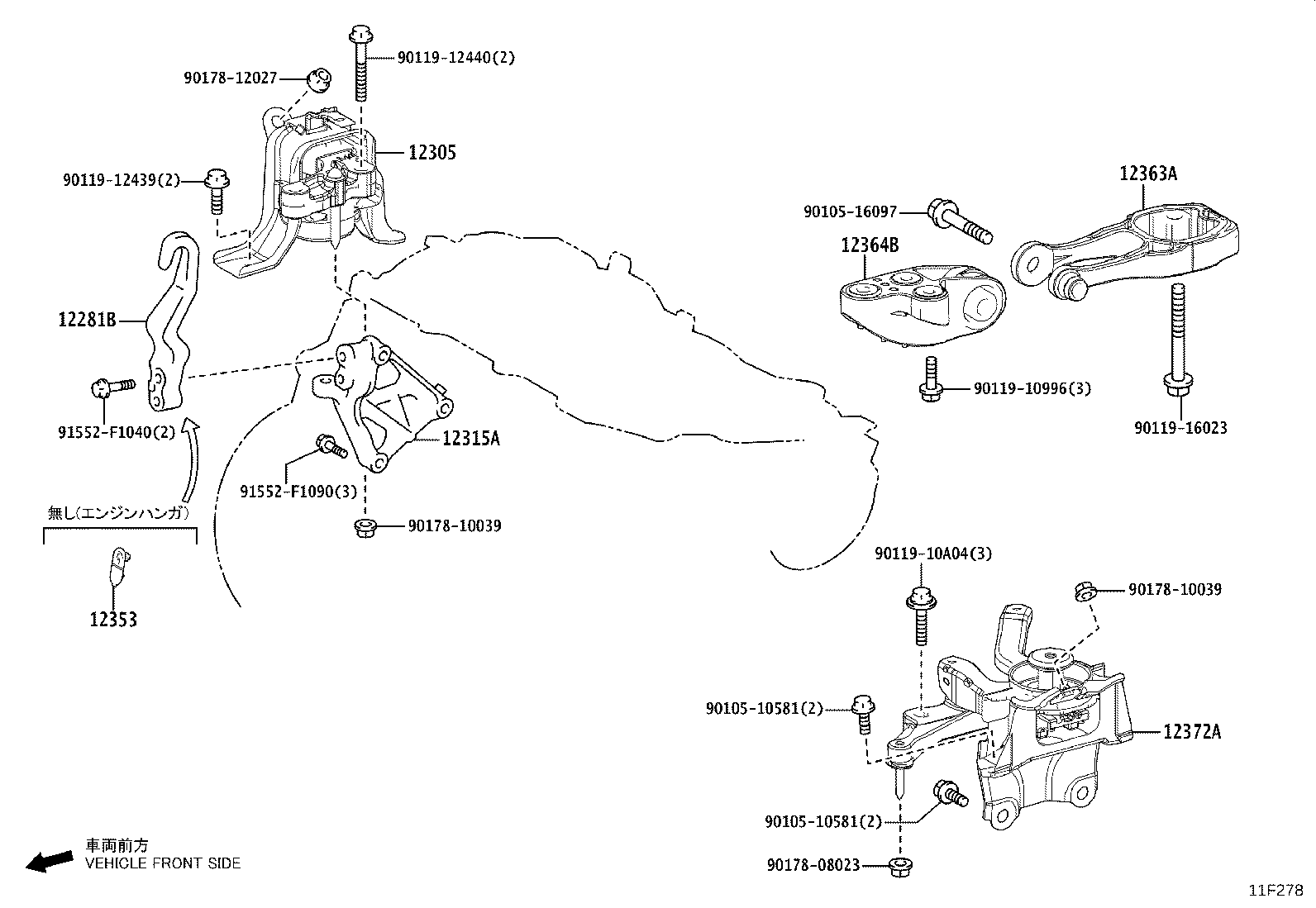

Click highlighted areas on diagram

diagram 12281B 12305 12315A 12353 12363A 12364B 12372A 9010510581 9010510581 9010516097 9011910996 9011910A04 9011912439 9011912440 9011916023 9017808023 9017810039 9017810039 9017812027 91552F1040 91552F1090
Part # Description Qty Price
12281B - HANGER, ENGINE, NO.1
12281-25030

M15#..MXPB1#,MXPJ1#

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-15100

M15AFKS..MXPB10

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15090

M15AFKS..MXPB1#

 1
12353 - CAP, ENGINE MOUNTING BRACKET
12353-15010

M15#..MXPB1#,MXPJ1#

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-15050

M15#..MXPB10,MXPJ1#

 1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-15060

M15AFKS..MXPB1#

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15281

M15AFKS..MXPB10

 1
Common parts
90105-10581
90105-16097
90119-10996
90119-10A04
90119-12439
90119-12440
90119-16023
90178-08023
90178-10039
90178-12027
91552-F1040
91552-F1090
