MXPH15-AHXNB (2020)
Toyota Yaris
(2002- )

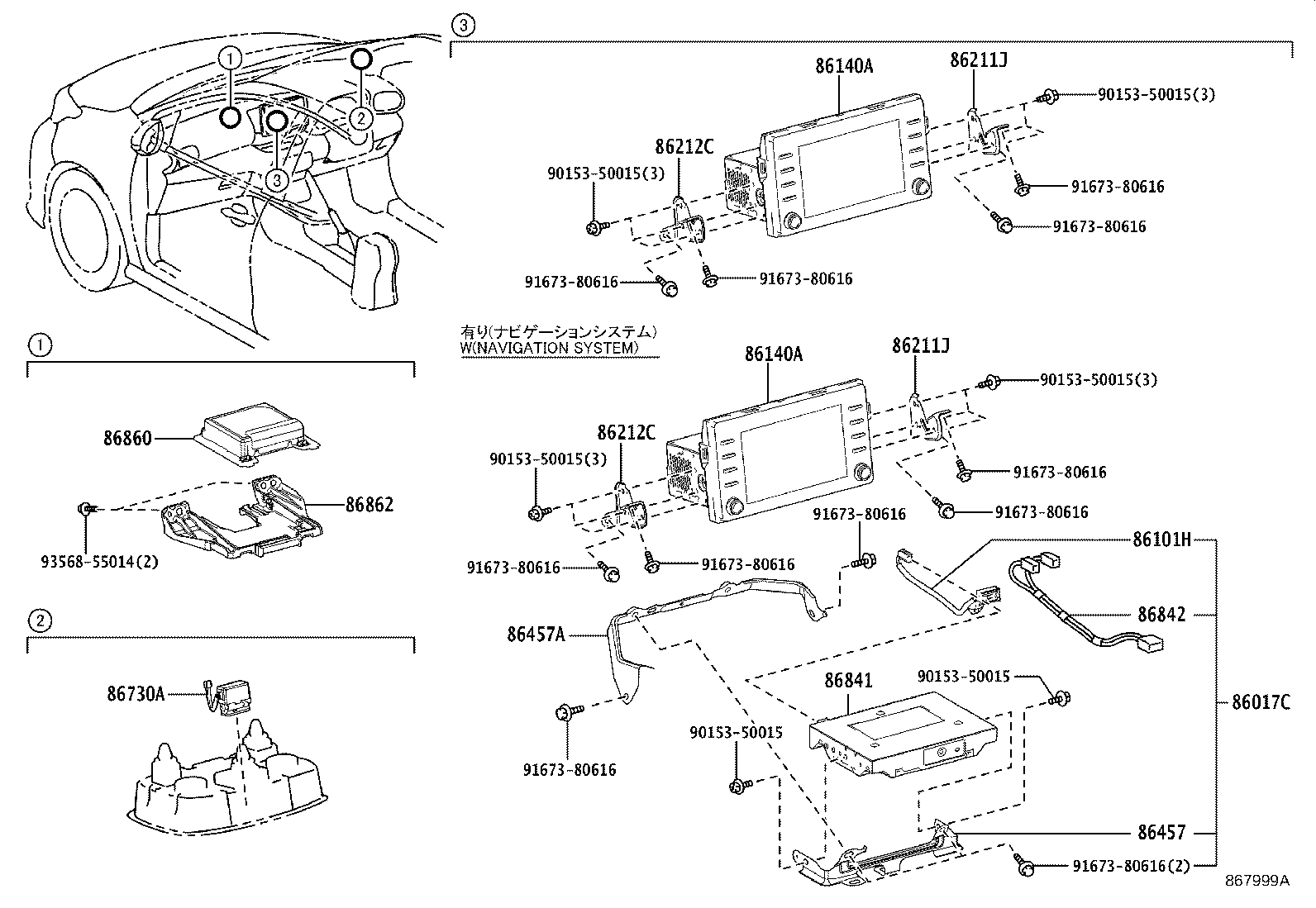

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86017C - FITTING SET, NAVIGATION SETTING | ||||
| 86017-52010 |
KSP210,MXPA10,MXPH1# ***,EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾛｰｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86017-52010 |
KSP210,MXPA10,MXPH1# ***,EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾊｲｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86101H - CORD SUB-ASSY, ANTENNA | ||||
| 86101-52J50 |
KSP210,MXPA1#,MXPH1# EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾊｲｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86101-52J50 |
KSP210,MXPA1#,MXPH1# EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾛｰｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-52610 |
KSP210,MXPA15,MXPH1#..HBDX,X DENSO TEN,ｵｰﾃﾞｨｵ−*DA無し |
1 | ||
| 86140-K0010 |
KSP210,MXPA15,MXPH1#..HBDX,X DENSO TEN,ｵｰﾃﾞｨｵ−*DA無し |
1 | ||
| 86140-K0010 |
KSP210,MXPA1#,MXPH1#..HBDX,X DENSO TEN |
1 | ||
| 86140-K0010 |
KSP210,MXPA15,MXPH1#..HBDX,X DENSO TEN,ﾃﾞｨｽﾌﾟﾚｲｵｰﾃﾞｨｵ無しﾊﾟｯｹｰｼﾞ |
1 | ||
| 86140-K0020 |
KSP210,MXPA1#,MXPH1#..HBDX,X DENSO TEN,ｵｰﾃﾞｨｵ−8ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 86140-52610 |
KSP210,MXPA15,MXPH1#..HBDX,X DENSO TEN,ﾃﾞｨｽﾌﾟﾚｲｵｰﾃﾞｨｵ無しﾊﾟｯｹｰｼﾞ |
1 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-52610 |
KSP210,MXPA15,MXPH1#..HBDX,X DENSO TEN,ｵｰﾃﾞｨｵ−*DA無し |
1 | ||
| 86140-K0010 |
KSP210,MXPA15,MXPH1#..HBDX,X DENSO TEN,ｵｰﾃﾞｨｵ−*DA無し |
1 | ||
| 86140-K0010 |
KSP210,MXPA1#,MXPH1#..HBDX,X DENSO TEN |
1 | ||
| 86140-K0010 |
KSP210,MXPA15,MXPH1#..HBDX,X DENSO TEN,ﾃﾞｨｽﾌﾟﾚｲｵｰﾃﾞｨｵ無しﾊﾟｯｹｰｼﾞ |
1 | ||
| 86140-K0020 |
KSP210,MXPA1#,MXPH1#..HBDX,X DENSO TEN,ｵｰﾃﾞｨｵ−8ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 86140-52610 |
KSP210,MXPA15,MXPH1#..HBDX,X DENSO TEN,ﾃﾞｨｽﾌﾟﾚｲｵｰﾃﾞｨｵ無しﾊﾟｯｹｰｼﾞ |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-K0010 |
KSP210,MXPA15,MXPH1#..HBDX,X ｵｰﾃﾞｨｵ−*DA無し |
1 | ||
| 86211-K0010 |
KSP210,MXPA15,MXPH1#..HBDX,X ﾃﾞｨｽﾌﾟﾚｲｵｰﾃﾞｨｵ無しﾊﾟｯｹｰｼﾞ |
1 | ||
| 86211-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-K0010 |
KSP210,MXPA15,MXPH1#..HBDX,X ｵｰﾃﾞｨｵ−*DA無し |
1 | ||
| 86211-K0010 |
KSP210,MXPA15,MXPH1#..HBDX,X ﾃﾞｨｽﾌﾟﾚｲｵｰﾃﾞｨｵ無しﾊﾟｯｹｰｼﾞ |
1 | ||
| 86211-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-K0010 |
KSP210,MXPA15,MXPH1#..HBDX,X ｵｰﾃﾞｨｵ−*DA無し |
1 | ||
| 86212-K0010 |
KSP210,MXPA15,MXPH1#..HBDX,X ﾃﾞｨｽﾌﾟﾚｲｵｰﾃﾞｨｵ無しﾊﾟｯｹｰｼﾞ |
1 | ||
| 86212-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-K0010 |
KSP210,MXPA15,MXPH1#..HBDX,X ｵｰﾃﾞｨｵ−*DA無し |
1 | ||
| 86212-K0010 |
KSP210,MXPA15,MXPH1#..HBDX,X ﾃﾞｨｽﾌﾟﾚｲｵｰﾃﾞｨｵ無しﾊﾟｯｹｰｼﾞ |
1 | ||
| 86212-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 86457 - BRACKET, MULTI-MEDIA MODULE NO.1 | ||||
| 86457-K0010 |
KSP210,MXPA1#,MXPH1# EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾛｰｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86457-K0010 |
KSP210,MXPA1#,MXPH1# EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾊｲｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86457A - BRACKET, MULTI-MEDIA MODULE NO.2 | ||||
| 86457-K0110 |
KSP210,MXPA15,MXPH1#..HBDX,X ﾃﾞｨｽﾌﾟﾚｲｵｰﾃﾞｨｵ無しﾊﾟｯｹｰｼﾞ |
1 | ||
| 86457-K0110 |
KSP210,MXPA15,MXPH1#..HBDX,X ｵｰﾃﾞｨｵ−*DA無し |
1 | ||
| 86457-K0110 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-75010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86007-52060 |
KSP210,MXPA10,MXPH1# EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾊｲｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86007-52051 |
KSP210,MXPA1#,MXPH1# EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾛｰｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86007-52050 |
KSP210,MXPA10,MXPH1# EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾛｰｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86007-52053 |
KSP210,MXPA1#,MXPH1# EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾛｰｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86007-52052 |
KSP210,MXPA1#,MXPH1# EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾛｰｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86007-52063 |
KSP210,MXPA1#,MXPH1# EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾊｲｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86007-52061 |
KSP210,MXPA1#,MXPH1# EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾊｲｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86007-52062 |
KSP210,MXPA1#,MXPH1# EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾊｲｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-K0010 |
KSP210,MXPA10,MXPH1# EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾛｰｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86842-K0010 |
KSP210,MXPA10,MXPH1# EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(ﾊｲｸﾞﾚｰﾄﾞﾅﾋﾞ)DOP |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86880-52010 |
KSP210,MXPA15,MXPH1#..HBDX,X ﾃﾞｨｽﾌﾟﾚｲｵｰﾃﾞｨｵ無しﾊﾟｯｹｰｼﾞ&DCM(ﾃﾞｰﾀｺﾐｭﾆｹｰｼｮﾝﾓｼﾞｭｰﾙ)−無し |
1 | ||
| 86880-52010 |
KSP210,MXPA15,MXPH1#..HBDX,X ﾃﾞｨｽﾌﾟﾚｲｵｰﾃﾞｨｵ無しﾊﾟｯｹｰｼﾞ |
1 | ||
| 86880-52010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 86862 - BRACKET, NAVIGATION ANTENNA | ||||
| 86862-K0010 |
KSP210,MXPA15,MXPH1#..HBDX,X ﾃﾞｨｽﾌﾟﾚｲｵｰﾃﾞｨｵ無しﾊﾟｯｹｰｼﾞ&DCM(ﾃﾞｰﾀｺﾐｭﾆｹｰｼｮﾝﾓｼﾞｭｰﾙ)−無し |
1 | ||
| 86862-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 86862-K0010 |
KSP210,MXPA15,MXPH1#..HBDX,X ﾃﾞｨｽﾌﾟﾚｲｵｰﾃﾞｨｵ無しﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90153-50015 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
