MXPH15-AHXGB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

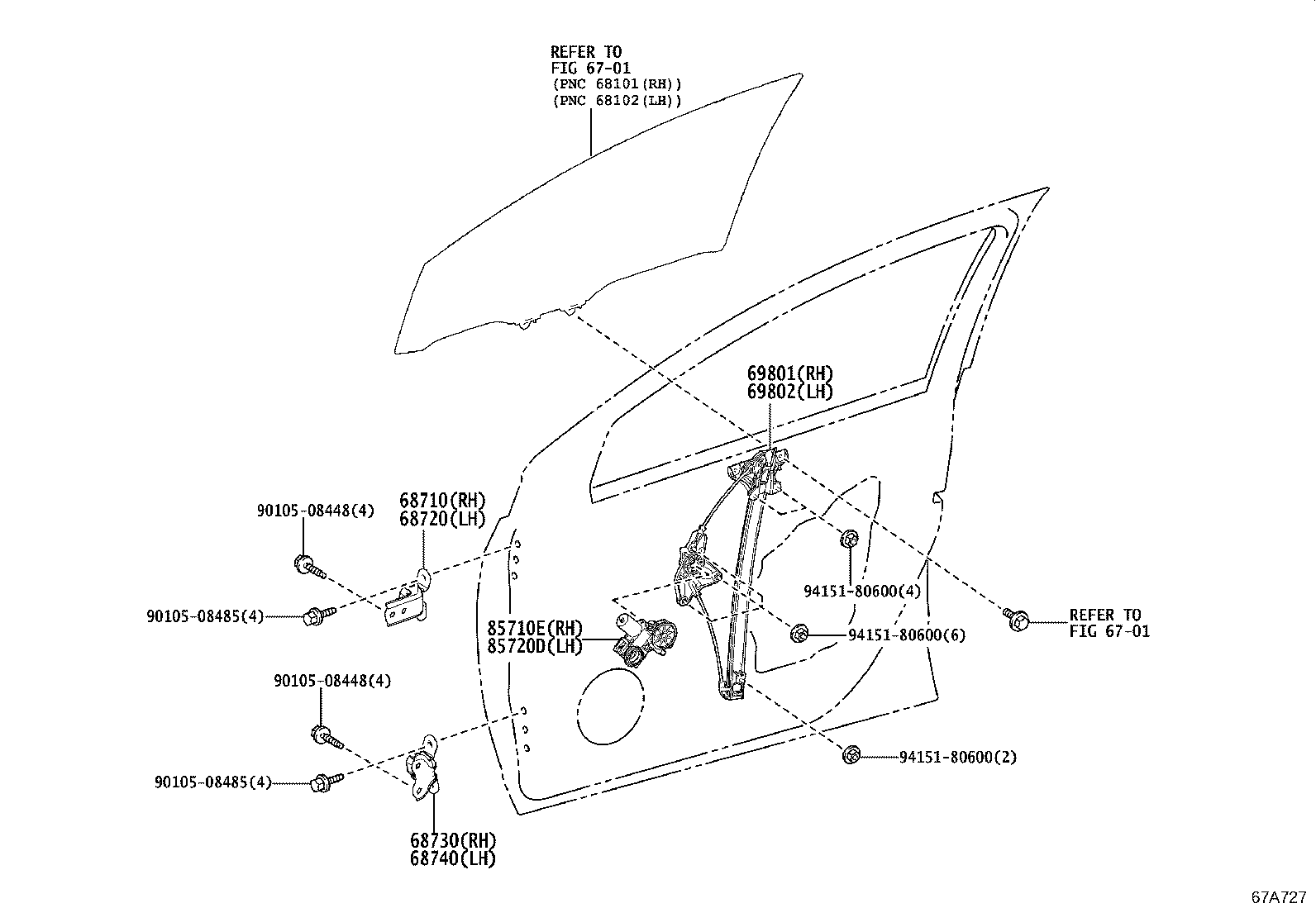

Click highlighted areas on diagram

diagram 6701 6701 68710 68720 68730 68740 69801 69802 85710E 85720D 9010508448 9010508448 9010508485 9010508485 9415180600 9415180600 9415180600
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12151

KSP210,MXPA1#,MXPH1#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12151

KSP210,MXPA1#,MXPH1#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-12120

KSP210,MXPA1#,MXPH1#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-12120

KSP210,MXPA1#,MXPH1#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-K0040

KSP210,MXPA1#,MXPH1#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-K0040

KSP210,MXPA1#,MXPH1#

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-K0070

KSP210,MXPA1#,MXPH1#

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-K0070

KSP210,MXPA1#,MXPH1#

 1
Common parts
90105-08448
90105-08485
94151-80600
Linked diagrams
6701
