MXPH15-AHXEB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )MXPA15,MXPH15

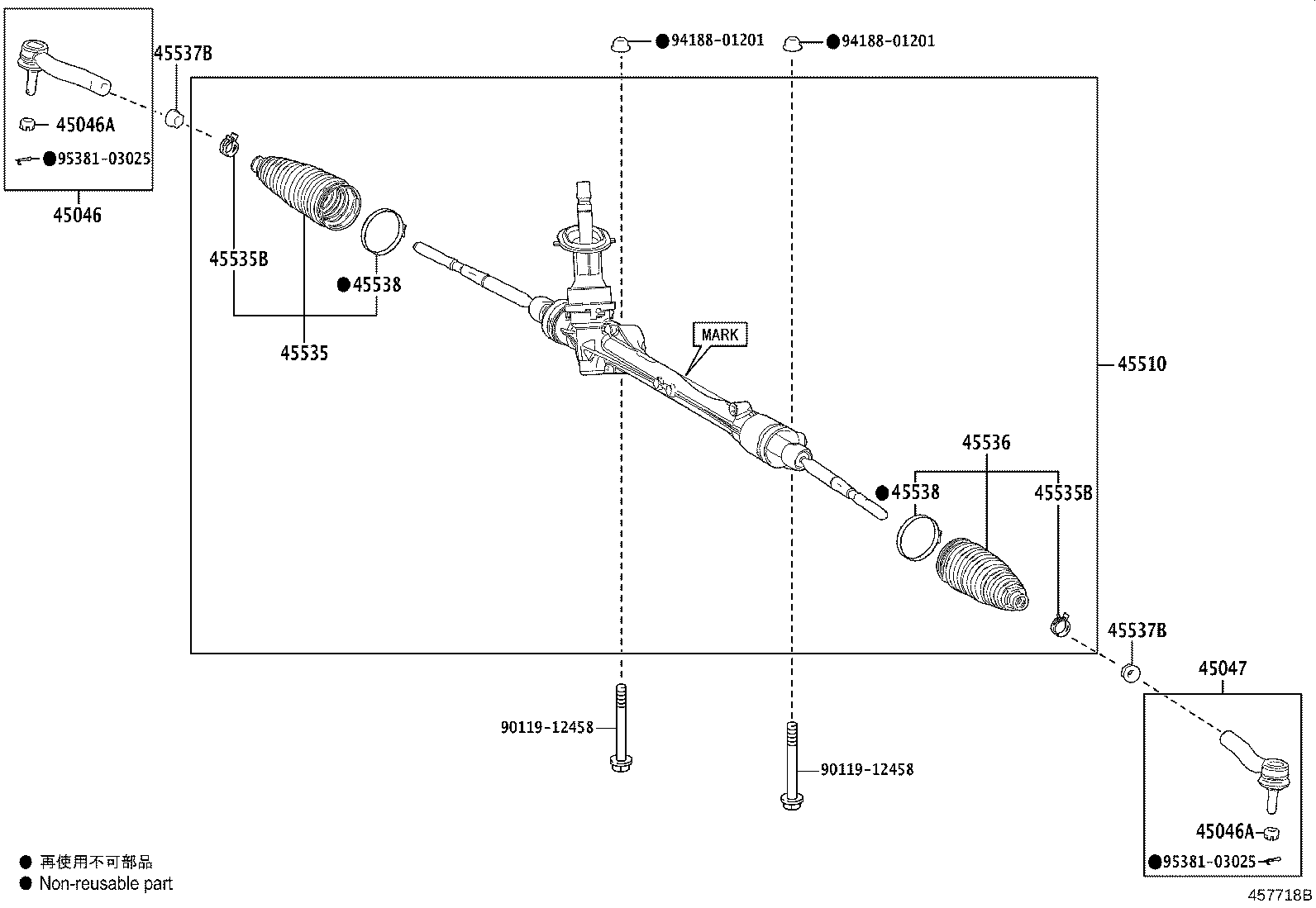

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45510 45535 45535B 45535B 45536 45537B 45537B 45538 45538 9011912458 9011912458 9418801201 9418801201 9538103025 9538103025
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-K9015

KSP210,MXPA1#,MXPH1#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

KSP210,MXPA1#,MXPH1#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

KSP210,MXPA1#,MXPH1#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-K9015

KSP210,MXPA1#,MXPH1#

 1
45510 - GEAR ASSY, STEERING
45510-K0020

MXPH15;MXPA10,MXPH10..HBDZ,Z

ﾏｰｸ=98

 1
45535 - BOOT, STEERING RACK, NO.1
45535-59075

KSP210,MXPA1#,MXPH1#

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

KSP210,MXPA1#,MXPH1#

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

KSP210,MXPA1#,MXPH1#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-59075

KSP210,MXPA1#,MXPH1#

 1
45537B - NUT, RACK END LOCK
90179-14019

KSP210,MXPA1#,MXPH1#

 2
45537B - NUT, RACK END LOCK
90179-14019

KSP210,MXPA1#,MXPH1#

 2
45538 - RETAINER, STEERING RACK BOOT
45538-48020

KSP210,MXPA1#,MXPH1#

 1
45538 - RETAINER, STEERING RACK BOOT
45538-48020

KSP210,MXPA1#,MXPH1#

 1
Common parts
90119-12458
94188-01201
95381-03025
