MXPH10-AHXGB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )

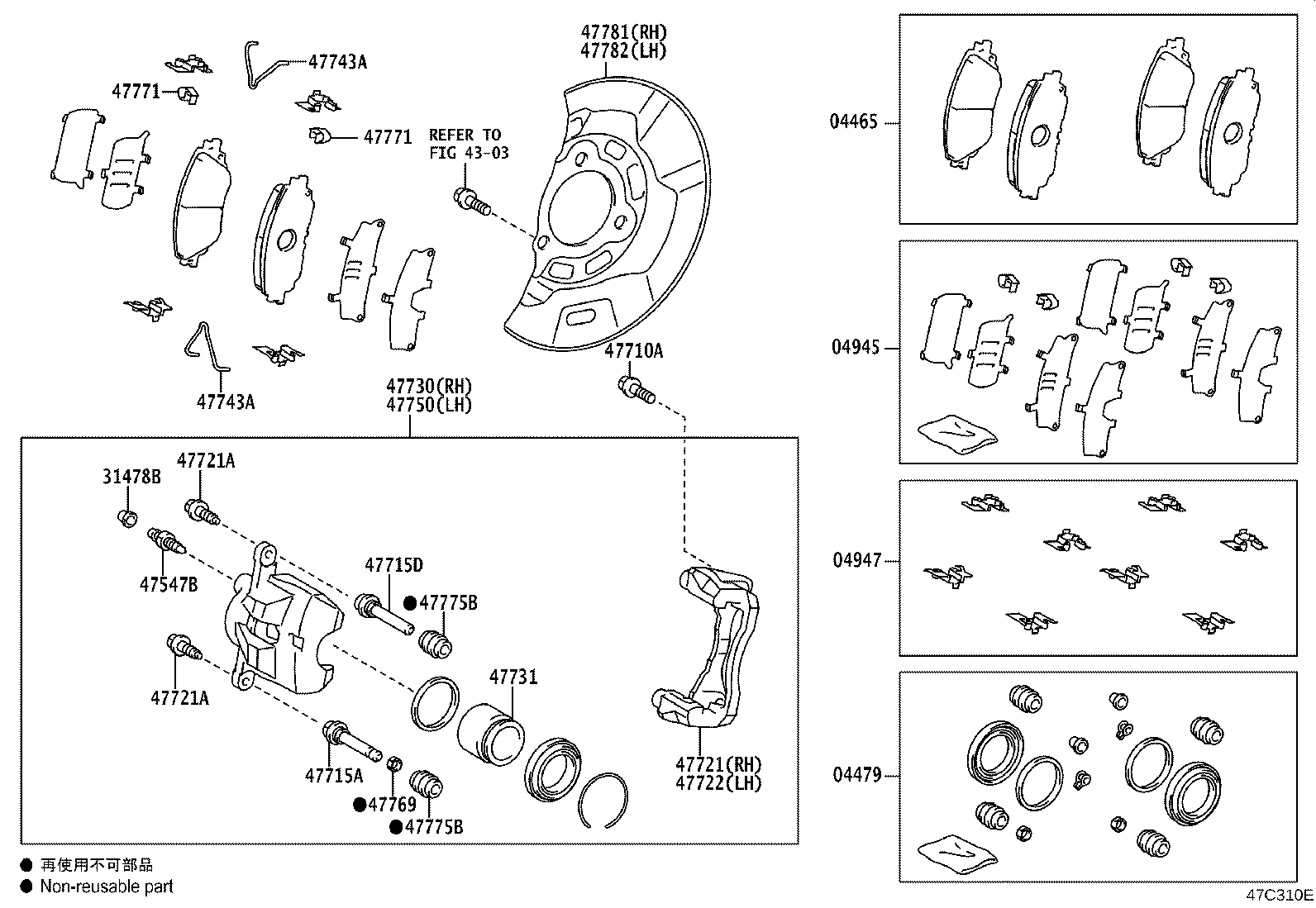

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 4303 47547B 47710A 47715A 47715D 47721 47721A 47721A 47722 47730 47731 47743A 47743A 47750 47769 47771 47771 47775B 47775B 47781 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-K0020

KSP210,MXPA1#,MXPH10

ﾏｰｸ AK NS435H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-12120

KSP210,MXPA1#,MXPH1#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-K0000

KSP210,MXPA1#,MXPH10

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-K0000

KSP210,MXPA1#,MXPH10

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

KSP210,MXPA1#,MXPH1#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

KSP210,MXPA1#,MXPH1#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

KSP210,MXPA1#,MXPH1#

*12−1.25PX29.5−23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-52190

KSP210,MXPA1#,MXPH1#

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-12A10

KSP210,MXPA1#,MXPH1#

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-K0010

KSP210,MXPA1#,MXPH10

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

KSP210,MXPA1#,MXPH1#

*8−1.00PX23−15

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

KSP210,MXPA1#,MXPH1#

*8−1.00PX23−15

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-K0010

KSP210,MXPA1#,MXPH10

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-K0010

KSP210,MXPA1#,MXPH10

 1
47731 - PISTON, FRONT DISC BRAKE
47731-52190

KSP210,MXPA1#,MXPH1#

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-12090

KSP210,MXPA1#,MXPH10

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-12090

KSP210,MXPA1#,MXPH10

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-K0010

KSP210,MXPA1#,MXPH10

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

KSP210,MXPA1#,MXPH1#

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-33380

KSP210,MXPA1#,MXPH1#

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-33380

KSP210,MXPA1#,MXPH1#

 4
47775B - BOOT, BUSH DUST, NO.1
47775-52190

KSP210,MXPA1#,MXPH1#

 4
47775B - BOOT, BUSH DUST, NO.1
47775-52190

KSP210,MXPA1#,MXPH1#

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-K0010

KSP210,MXPA1#,MXPH1#

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-K0010

KSP210,MXPA1#,MXPH1#

 1
Linked diagrams
4303
