MXPH10-AHXGB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )M15AFXE

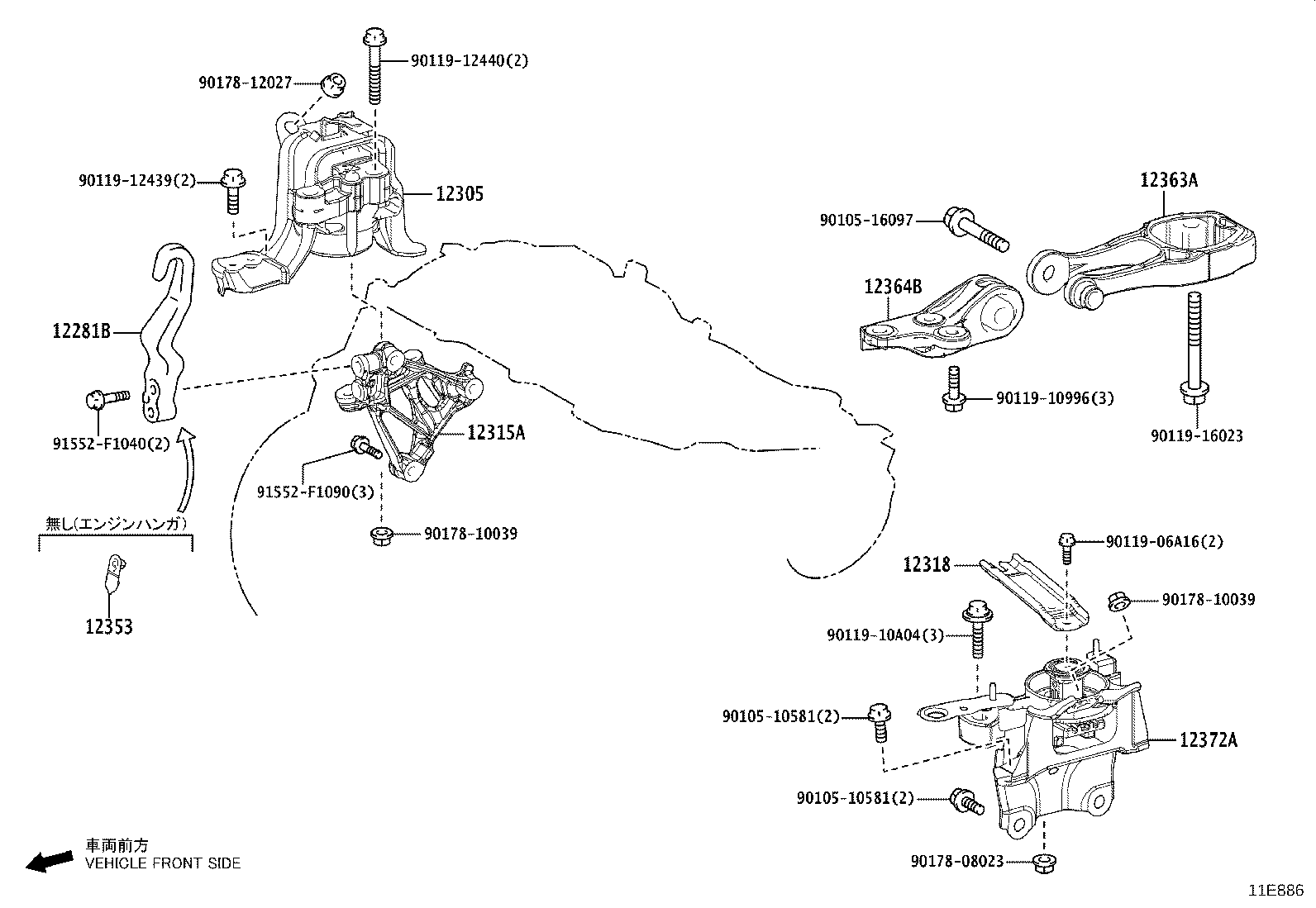

Click highlighted areas on diagram

diagram 12281B 12305 12315A 12318 12353 12363A 12364B 12372A 9010510581 9010510581 9010516097 9011906A16 9011910996 9011910A04 9011912439 9011912440 9011916023 9017808023 9017810039 9017810039 9017812027 91552F1040 91552F1090
Part # Description Qty Price
12281B - HANGER, ENGINE, NO.1
12281-25030

M15#..MXPA1#,MXPH1#

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-15090

M15AFXE..MXPH1#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15100

M15AFXE..MXPH1#

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-15070

M15AFXE..MXPH1#

 1
12353 - CAP, ENGINE MOUNTING BRACKET
12353-15010

M15#..MXPA1#,MXPH1#

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-15030

M15#..MXPA1#,MXPH1#..CVT

 1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-15030

M15AFXE..MXPH1#

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15270

M15AFXE..MXPH1#

 1
Common parts
90105-10581
90105-16097
90119-06A16
90119-10996
90119-10A04
90119-12439
90119-12440
90119-16023
90178-08023
90178-10039
90178-12027
91552-F1040
91552-F1090
