MXPH10-AHXEB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )MXPH10

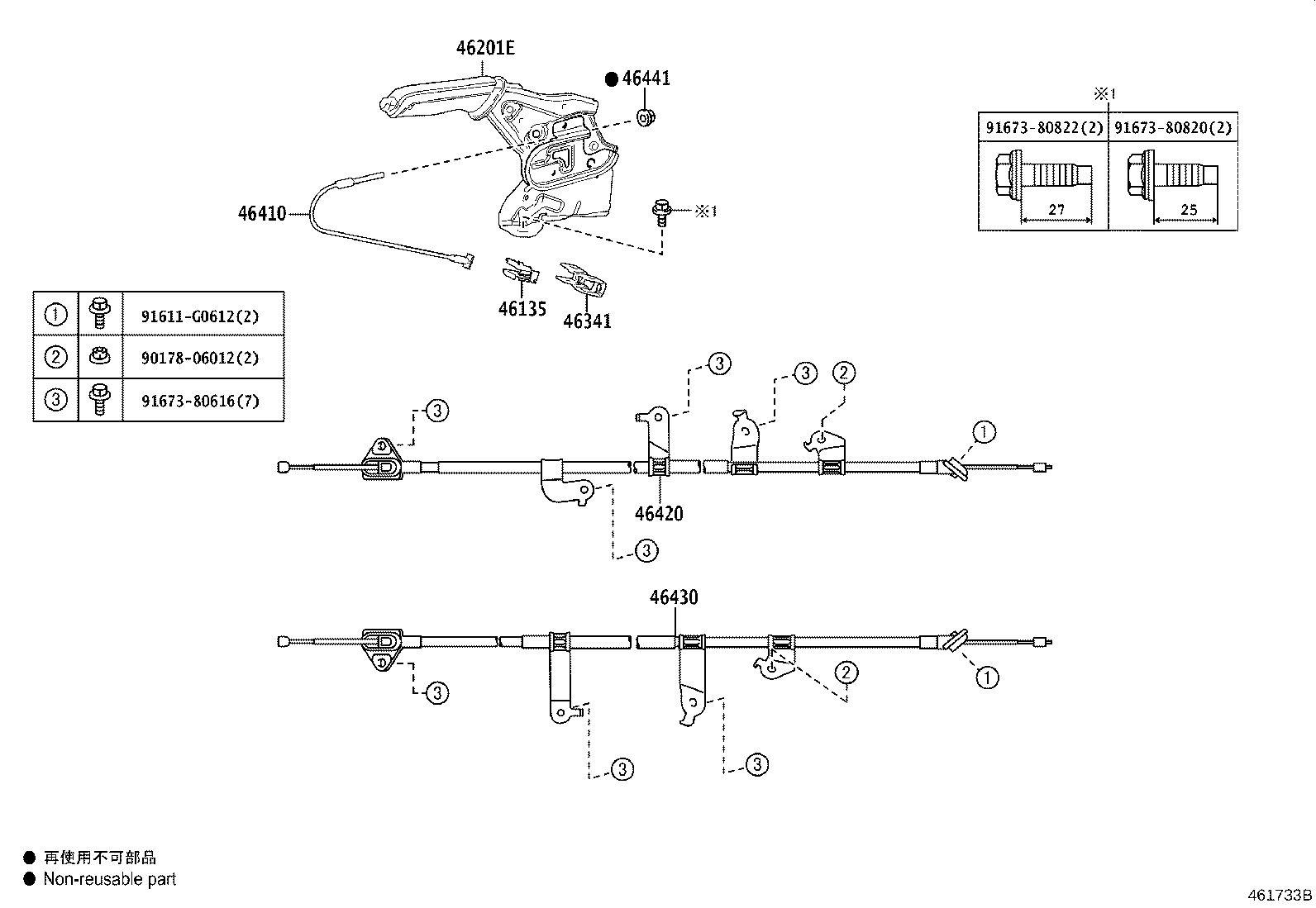

Click highlighted areas on diagram

diagram 46135 46201E 46341 46410 46420 46430 46441 9017806012 91611G0612 9167380616 9167380820 9167380822
Part # Description Qty Price
46135 - STOPPER, PARKING BRAKE CABLE END
46135-K0010

KSP210,MXPA1#,MXPH1#

 1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-K0010C0

MXPA1#,MXPH1#..HBDZ,Z

BLACK,TRIM1#,2#

 1
46201-K0010C0

MXPA1#..X;KSP210,MXPH1#..G,HBDX,X

BLACK,TRIM2#,4#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-K0010

KSP210,MXPA1#,MXPH1#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-K0010

KSP210,MXPA1#,MXPH1#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-K0020

MXPH10

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-K0010

KSP210,MXPA10,MXPH10

 1
46441 - NUT, WIRE ADJUSTING, NO.1
90177-06003

KSP210,MXPA1#,MXPH1#

 1
Common parts
90178-06012
91611-G0612
91673-80616
91673-80820
91673-80822
