MXPH10-AHXEB (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )M15AFXE

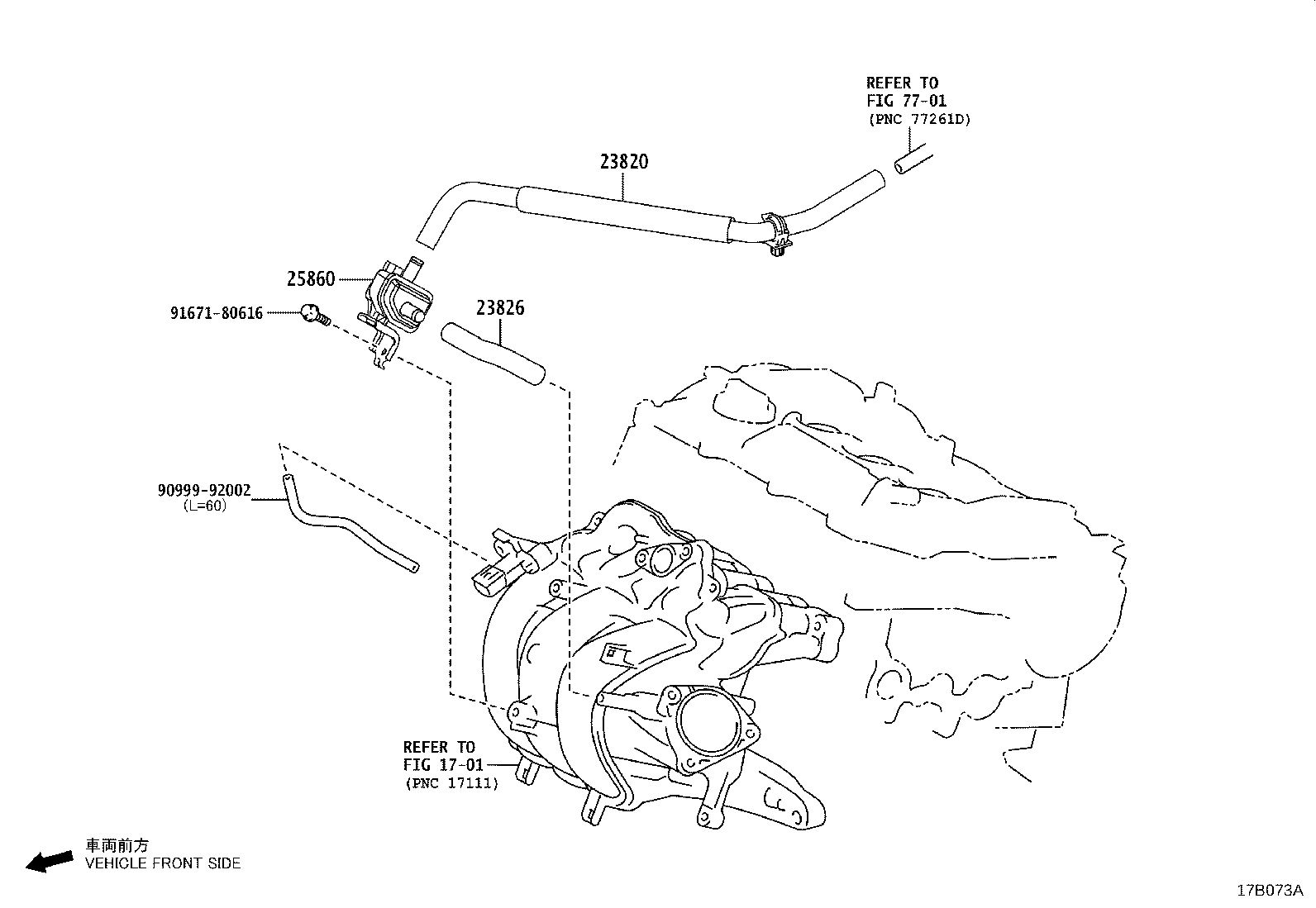

Click highlighted areas on diagram

diagram 1701 23820 23826 25860 7701 9099992002 9167180616
Part # Description Qty Price
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-15020

M15AFXE..MXPH1#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-15020

M15AFXE..MXPH1#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-15050

M15AFXE..MXPH1#

 1
Common parts
90999-92002
91671-80616
Linked diagrams
1701
7701
