MXPA15-AHXNB (2020)

Toyota Yaris

Production Mar 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2003- )M15AFKS..MXPA15

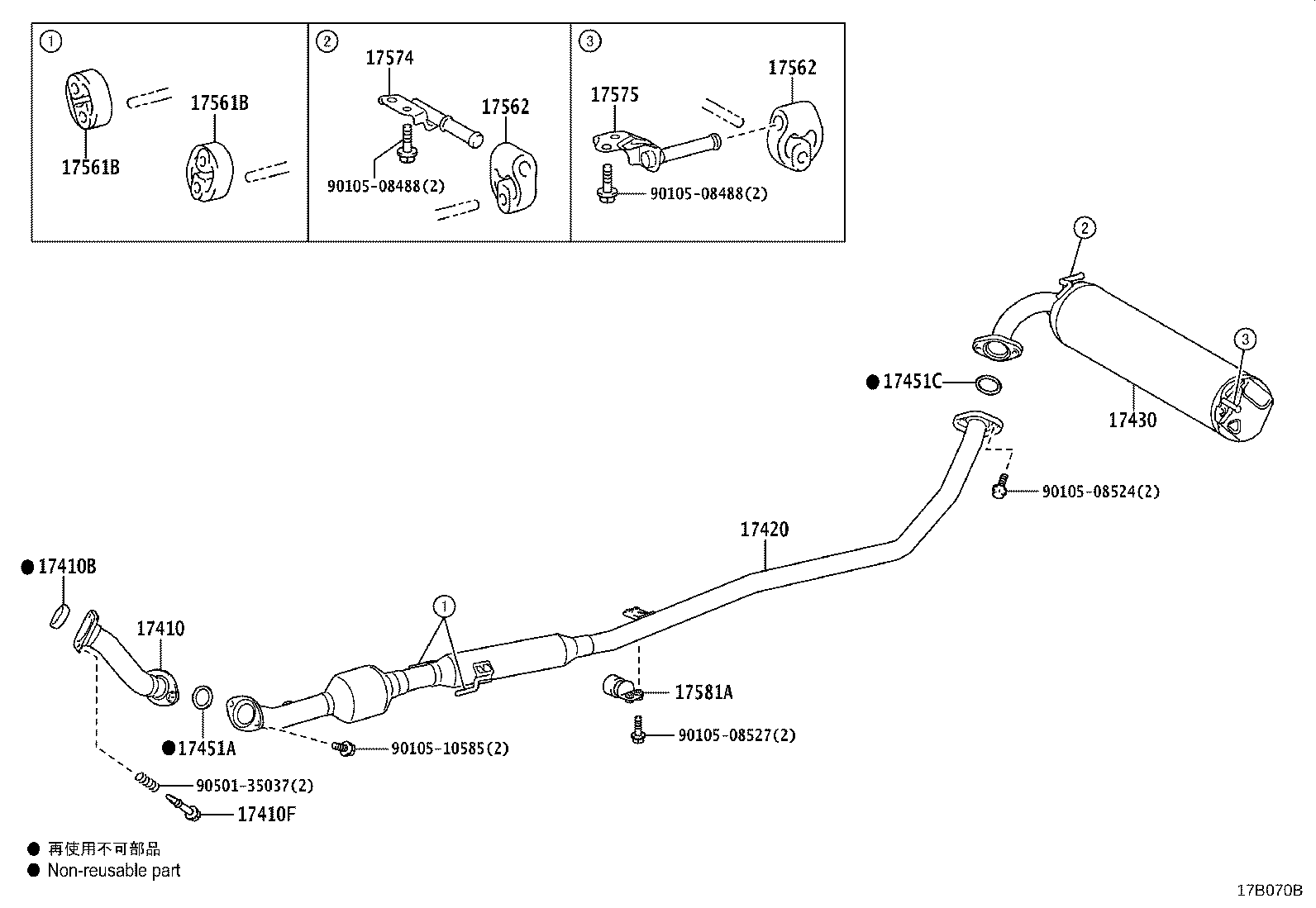

Click highlighted areas on diagram

diagram 17410 17410B 17410F 17420 17430 17451A 17451C 17561B 17561B 17562 17562 17574 17575 17581A 9010508488 9010508488 9010508524 9010508527 9010510585 9050135037
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-15310

M15AFKS..MXPA15

 1
17410B - GASKET, EXHAUST PIPE
17451-21070

M15#..MXPA1#,MXPH1#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90901-05020

M15#,1KRFE..KSP210,MXPA1#,MXPH1#

 2
90109-10182

M15#,1KRFE..KSP210,MXPA1#,MXPH1#

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-15180

M15AFKS..MXPA15

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-15730

M15AFKS..MXPA15

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-06048

M15AFKS..MXPA15

 1
17451C - GASKET, EXHAUST PIPE, NO.3
90917-06048

M15AFKS..MXPA15

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-47010

M15AFKS..MXPA15

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-47010

M15AFKS..MXPA15

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-28020

M15#..MXPA15,MXPH15

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-28020

M15#..MXPA15,MXPH15

 2
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-15070

M15#..MXPA15,MXPH15

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-15050

M15#..MXPA15,MXPH15

 1
17581A - DAMPER, EXHAUST PIPE
17581-67010

M15AFKS..MXPA15

 1
Common parts
90105-08488
90105-08524
90105-08527
90105-10585
90501-35037
