MXPA10-AHXNB (2020)
Toyota Yaris

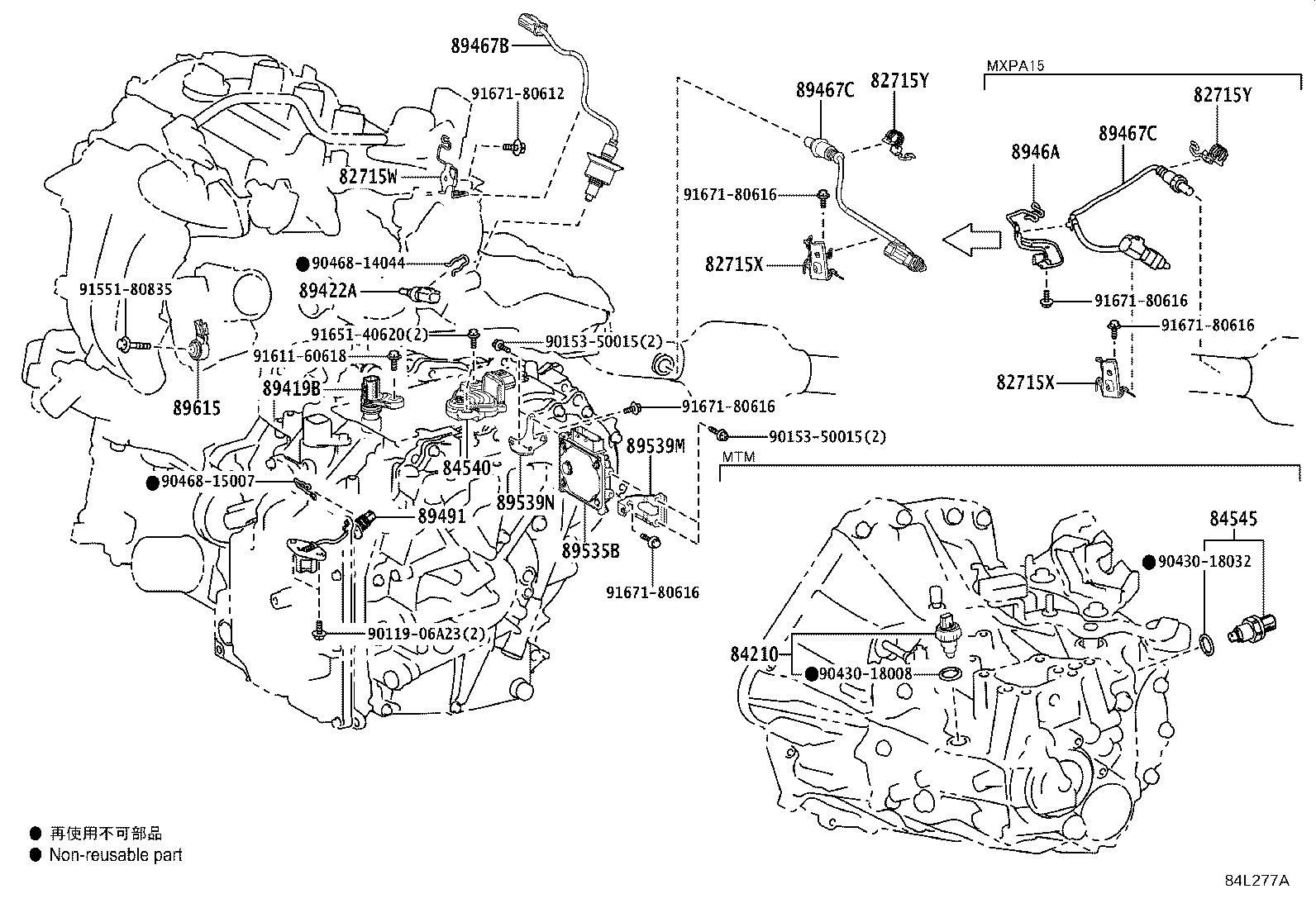

ILLUST NO. 1 OF 9(2002- )MXPA1#
ｴﾝｼﾞﾝ&ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-K0030 |
MXPA1#,MXPH1# |
1 | ||
| 82715X - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 82715-K0040 |
MXPA10,MXPH1# |
1 | ||
| 82715X - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 82715-K0040 |
MXPA10,MXPH1# |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82715-72040 |
MXPA1#,MXPH1# |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82715-72040 |
MXPA1#,MXPH1# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-K0010 |
MXPA1#..CVT |
1 | ||
| 89419B - SENSOR, SHIFT STROKE | ||||
| 89419-K2010 |
MXPA1#..CVT |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33040 |
MXPA1#,MXPH1# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-K0020 |
MXPA1#,MXPH1# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-K0030 |
MXPA10,MXPH1# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-K0030 |
MXPA10,MXPH1# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-50081 |
MXPA1#,MXPH1# |
1 | ||
| 89535B - COMPUTER, TRANSMISSION CONTROL | ||||
| 89535-K0051 |
MXPA10..CVT *614 |
1 | ||
| 89535-K0050 |
MXPA10..CVT *614 |
1 | ||
| 89539M - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1 | ||||
| 89539-K0010 |
MXPA1#..CVT |
1 | ||
| 89539N - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.2 | ||||
| 89539-K0020 |
MXPA1#..CVT |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
MXPA1#,MXPH1# |
1 | ||
| Common parts | ||||
| 90119-06A23 | ||||
| 90153-50015 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 90468-14044 | ||||
| 90468-15007 | ||||
| 91551-80835 | ||||
| 91611-60618 | ||||
| 91651-40620 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
ILLUST NO. 2 OF 9(2002- )MXPA1#

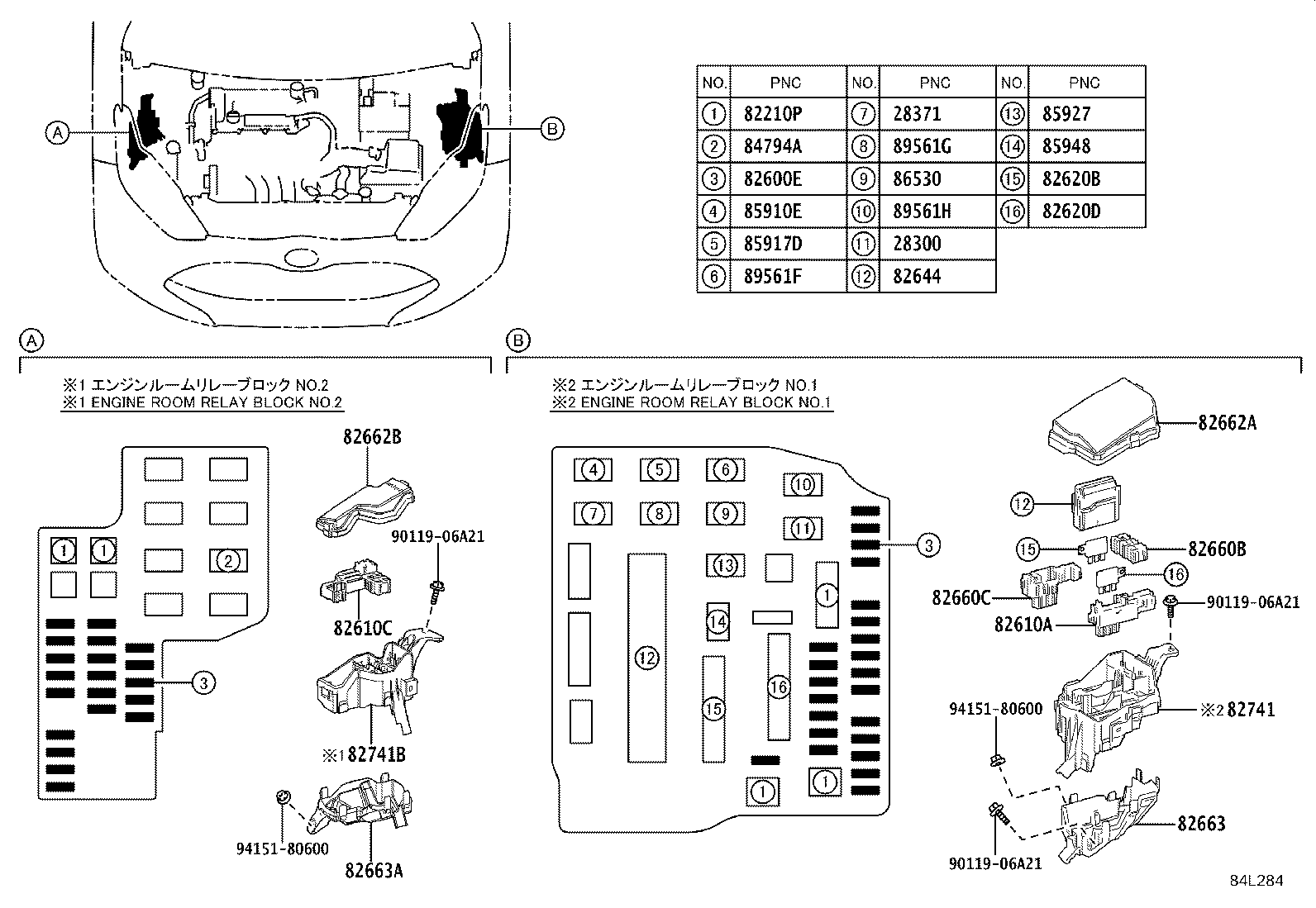

ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-K0030 |
KSP210,MXPA1# |
1 | ||

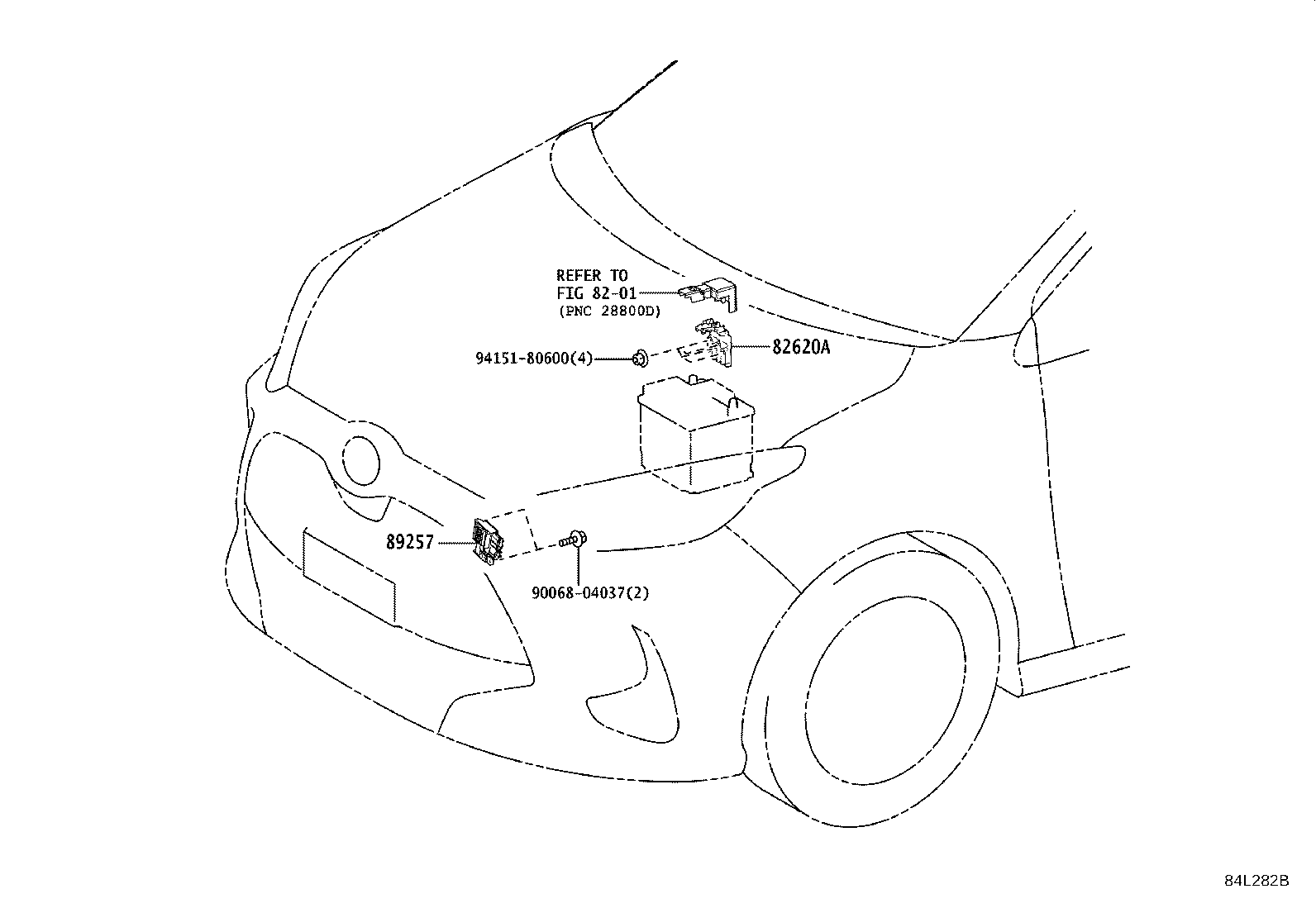

| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-K0010 |
MXPA1# |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 3 OF 9(2002- )MXPA1#
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
M15AFKS,1KRFE..KSP210,MXPA1# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
M15#,1KRFE..KSP210,MXPA1#,MXPH1# |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
KSP210,MXPA1#,MXPH1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08301 |
KSP210,MXPA1#,MXPH1# 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08303 |
KSP210,MXPA1#,MXPH1# 50A−50A−50A,ﾒｽ端子,赤茶 |
1 | ||
| 90982-08294 |
KSP210,MXPA1#,MXPH1# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08308 |
KSP210,MXPA1#,MXPH1# 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08299 |
KSP210,MXPA1#,MXPH1# 40A−40A−40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08304 |
KSP210,MXPA1#,MXPH1# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08302 |
KSP210,MXPA1#,MXPH1# 50A−30A−50A,ﾒｽ端子,黒 |
1 | ||
| 90982-08300 |
KSP210,MXPA1#,MXPH1# 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08305 |
KSP210,MXPA1#,MXPH1# 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08296 |
KSP210,MXPA1#,MXPH1# 50A,ﾒｽ端子,赤,ﾏｰｸ 58V |
1 | ||
| 90982-08307 |
KSP210,MXPA1#,MXPH1# 50A,ﾒｽ端子,赤,ﾏｰｸ 32V |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
KSP210,MXPA1#,MXPH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
KSP210,MXPA1#,MXPH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09019 |
KSP210,MXPA1#,MXPH1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09024 |
KSP210,MXPA1#,MXPH1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
KSP210,MXPA1#,MXPH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
KSP210,MXPA1#,MXPH1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
KSP210,MXPA1#,MXPH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-K0010 |
KSP210,MXPA1# |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-K0030 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82610-K0030 |
KSP210,MXPA1#,MXPH1# 寒冷地仕様 |
1 | ||
| 82610-K0030 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82610-K0030 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82610-K0030 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82610-K0030 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82610-K0030 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82610-K0030 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82610-K0030 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82610-K0030 |
MXPH15..HBDG,HBDX;MXPA1#,MXPH10..CVT..(G,HBDX,X) 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82610-K0030 |
MXPA1#,MXPH1#..CVT..(HBDX,X) 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82610-K0030 |
MXPA1#,MXPH1#..CVT..(HBDX,X) 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82610-K0030 |
KSP210,MXPA1#,MXPH1#..CVT..(HBDX,X) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82610-K0030 |
KSP210,MXPH10..HBDX,X;MXPA1#,MXPH15..CVT..(G,HBDG,HBDX,X) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82610-K0030 |
KSP210,MXPA1#,MXPH1#..CVT..(HBDX,X) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82610-K0030 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-K0050 |
KSP210,MXPA1# |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-K0060 |
KSP210,MXPA1# |
1 | ||
| 82644 - COMPUTER, SEMICONDUCTOR POWER INTEGRATION | ||||
| 82644-K0050 |
MXPA1#,MXPH1#..G,HBDG,HBDX,X ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82644-K0080 |
MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-K0030 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-K0020 |
KSP210,MXPA1# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52C20 |
MXPA1# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52B90 |
KSP210,MXPA1# 寒冷地仕様 |
1 | ||
| 82662-52B90 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82662-52B90 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82662-52B90 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82662-52B90 |
KSP210..G;MXPA1#..G,X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82662-52B90 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82662-52B90 |
KSP210,MXPA1#..CVT..X 寒冷地仕様&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82662-52B90 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82662-52B90 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82662-52B90 |
MXPA1#..CVT..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82662-52B90 |
KSP210,MXPA1#..CVT..X 寒冷地仕様&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82662-52B90 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82662-52B90 |
KSP210..X;MXPA1#..CVT..(G,X) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82662-52B90 |
MXPA1#..CVT..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82662-52B90 |
MXPA1#..CVT..(G,X) 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82662-52B90 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-K0060 |
KSP210,MXPA1# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-K0070 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82663-K0070 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82663-K0070 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82663-K0070 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82663-K0070 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82663-K0070 |
KSP210,MXPA1#,MXPH1# 寒冷地仕様 |
1 | ||
| 82663-K0070 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82663-K0070 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82663-K0070 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82663-K0070 |
MXPA1#,MXPH1#..CVT..(HBDX,X) 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82663-K0070 |
MXPH15..HBDG,HBDX;MXPA1#,MXPH10..CVT..(G,HBDX,X) 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82663-K0070 |
MXPA1#,MXPH1#..CVT..(HBDX,X) 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82663-K0070 |
KSP210,MXPA1#,MXPH1#..CVT..(HBDX,X) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82663-K0070 |
KSP210,MXPH10..HBDX,X;MXPA1#,MXPH15..CVT..(G,HBDG,HBDX,X) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82663-K0070 |
KSP210,MXPA1#,MXPH1#..CVT..(HBDX,X) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82663-K0070 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-K0050 |
KSP210,MXPA1# |
1 | ||
| 82741B - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-K0060 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82741-K0060 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82741-K0060 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82741-K0060 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82741-K0060 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82741-K0060 |
KSP210,MXPA1#,MXPH1# 寒冷地仕様 |
1 | ||
| 82741-K0060 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82741-K0060 |
KSP210,MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82741-K0060 |
MXPA1#..G,X;KSP210,MXPH1#..G,HBDG,HBDX 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82741-K0060 |
MXPH15..HBDG,HBDX;MXPA1#,MXPH10..CVT..(G,HBDX,X) 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82741-K0060 |
MXPA1#,MXPH1#..CVT..(HBDX,X) 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82741-K0060 |
KSP210,MXPH10..HBDX,X;MXPA1#,MXPH15..CVT..(G,HBDG,HBDX,X) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 82741-K0060 |
KSP210,MXPA1#,MXPH1#..CVT..(HBDX,X) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82741-K0060 |
MXPA1#,MXPH1#..CVT..(HBDX,X) 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 82741-K0060 |
KSP210,MXPA1#,MXPH1#..CVT..(HBDX,X) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 82741-K0060 |
MXPA10..CVT..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ) |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
KSP210,MXPA10,MXPH1# 寒冷地仕様 |
1 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90987-02027 |
MXPA1# |
1 | ||
| 85917D - RELAY, HEATER(FOR AIR FUEL RATIO SENSOR) | ||||
| 90987-02027 |
MXPA1#,MXPH1# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 85948 - RELAY, WINDSHIELD WIPER | ||||
| 90987-02027 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-02027 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 89561G - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | ||||
| 90987-02027 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 89561H - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | ||||
| 90987-02033 |
MXPA1#,MXPH1# |
1 | ||
| Common parts | ||||
| 90119-06A21 | ||||
| 94151-80600 | ||||
ILLUST NO. 4 OF 9(2002- )

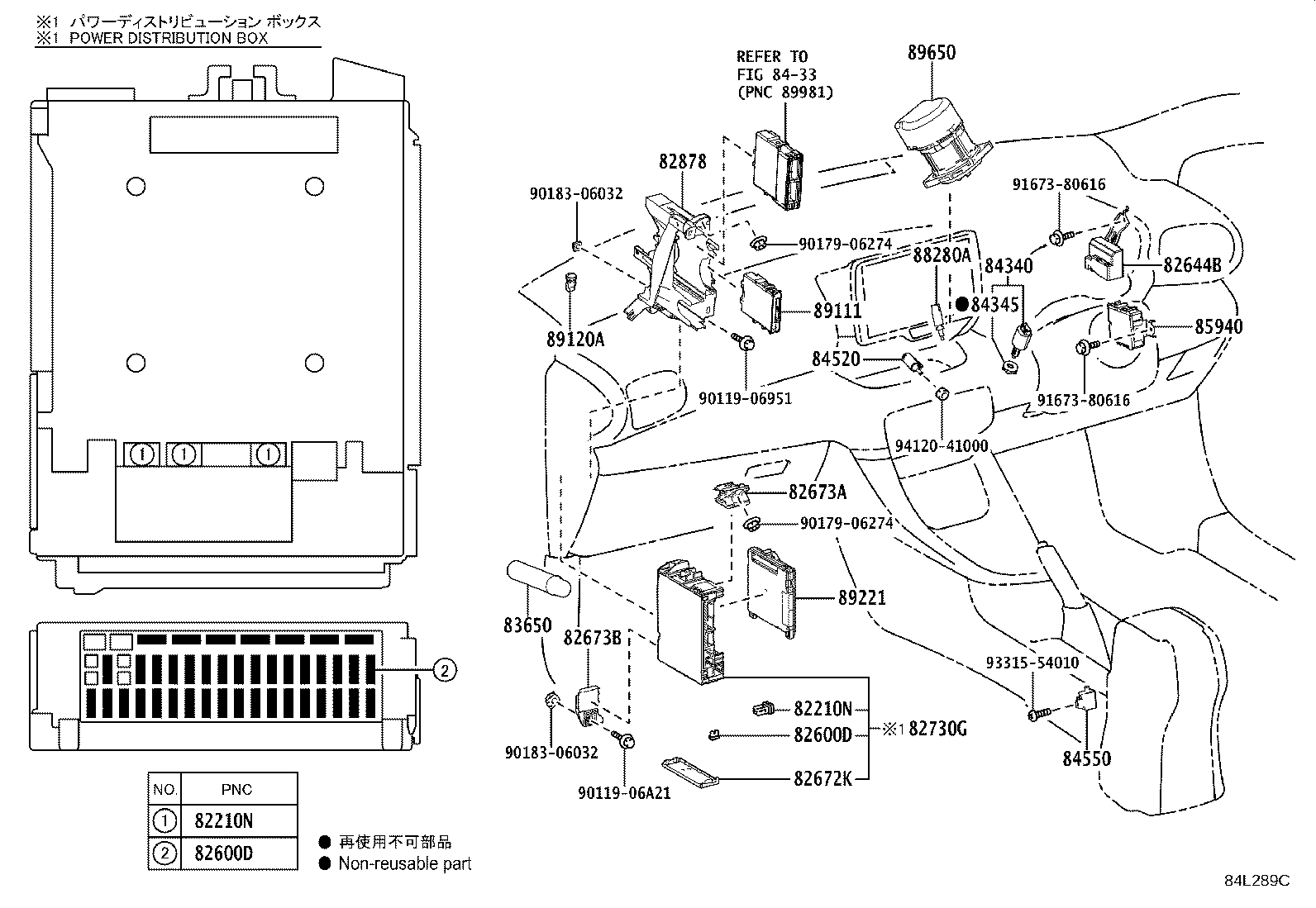

ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
KSP210,MXPA1#,MXPH1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08311 |
KSP210,MXPA1#,MXPH1# 40A,ﾒｽ端子,緑 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
KSP210,MXPA1#,MXPH1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08311 |
KSP210,MXPA1#,MXPH1# 40A,ﾒｽ端子,緑 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
KSP210,MXPA1#,MXPH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09019 |
KSP210,MXPA1#,MXPH1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09024 |
KSP210,MXPA1#,MXPH1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
KSP210,MXPA1#,MXPH1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
KSP210,MXPA1#,MXPH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
KSP210,MXPA1#,MXPH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09021 |
KSP210,MXPA1#,MXPH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
KSP210,MXPA1#,MXPH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09019 |
KSP210,MXPA1#,MXPH1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09024 |
KSP210,MXPA1#,MXPH1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
KSP210,MXPA1#,MXPH1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
KSP210,MXPA1#,MXPH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
KSP210,MXPA1#,MXPH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09021 |
KSP210,MXPA1#,MXPH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82644B - COMPUTER, SEMICONDUCTOR POWER INTEGRATION, NO.2 | ||||
| 82644-K0060 |
KSP210,MXPA10,MXPH1# 寒冷地仕様 |
1 | ||
| 82672K - COVER, POWER DISTRIBUTION BOX | ||||
| 82672-K0010 |
KSP210,MXPA10,MXPH10..HBDX,X |
1 | ||
| 82672-K0020 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-K0020 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 82730G - BOX ASSY, POWER DISTRIBUTION | ||||
| 82730-K0010 |
KSP210,MXPA10..X |
1 | ||
| 82730-K0030 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-52010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
KSP210,MXPA10,MXPH1# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49105 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-K0010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-52040 |
KSP210,MXPA1#,MXPH1# *614 |
1 | ||
| 89111-60140 |
KSP210,MXPA1#,MXPH1# *614 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-52D90 |
KSP210..G;MXPA1#..CVT..(G,X) ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 89220-52D70 |
KSP210,MXPA1#..CVT..(G,X) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52G90 |
KSP210,MXPA1#,MXPH1# JTEKT/DENSO,*614 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A21 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91673-80616 | ||||
| 93315-54010 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8433 | ||||
ILLUST NO. 5 OF 9(2002- )

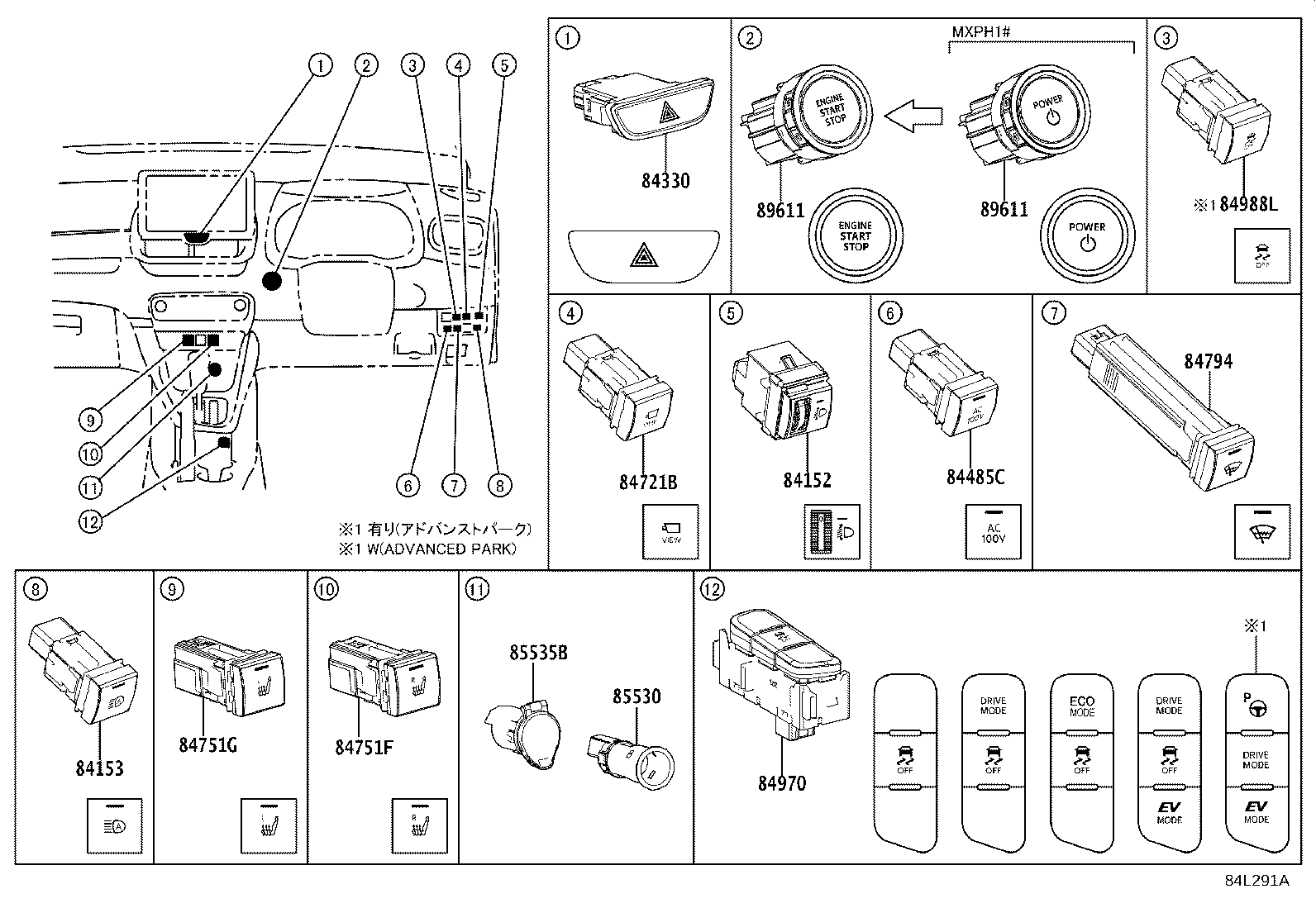

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-12100 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-33040 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-52170 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 84332-52200 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 84721B - SWITCH, PANORAMIC VIEW MONITOR | ||||
| 84721-K0010 |
KSP210,MXPA10,MXPH1# ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-33050 |
KSP210,MXPA10,MXPH1# 寒冷地仕様 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-K0030 |
MXPA1#..CVT |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-30020 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-12010 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-12010 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
ILLUST NO. 6 OF 9(2002- )

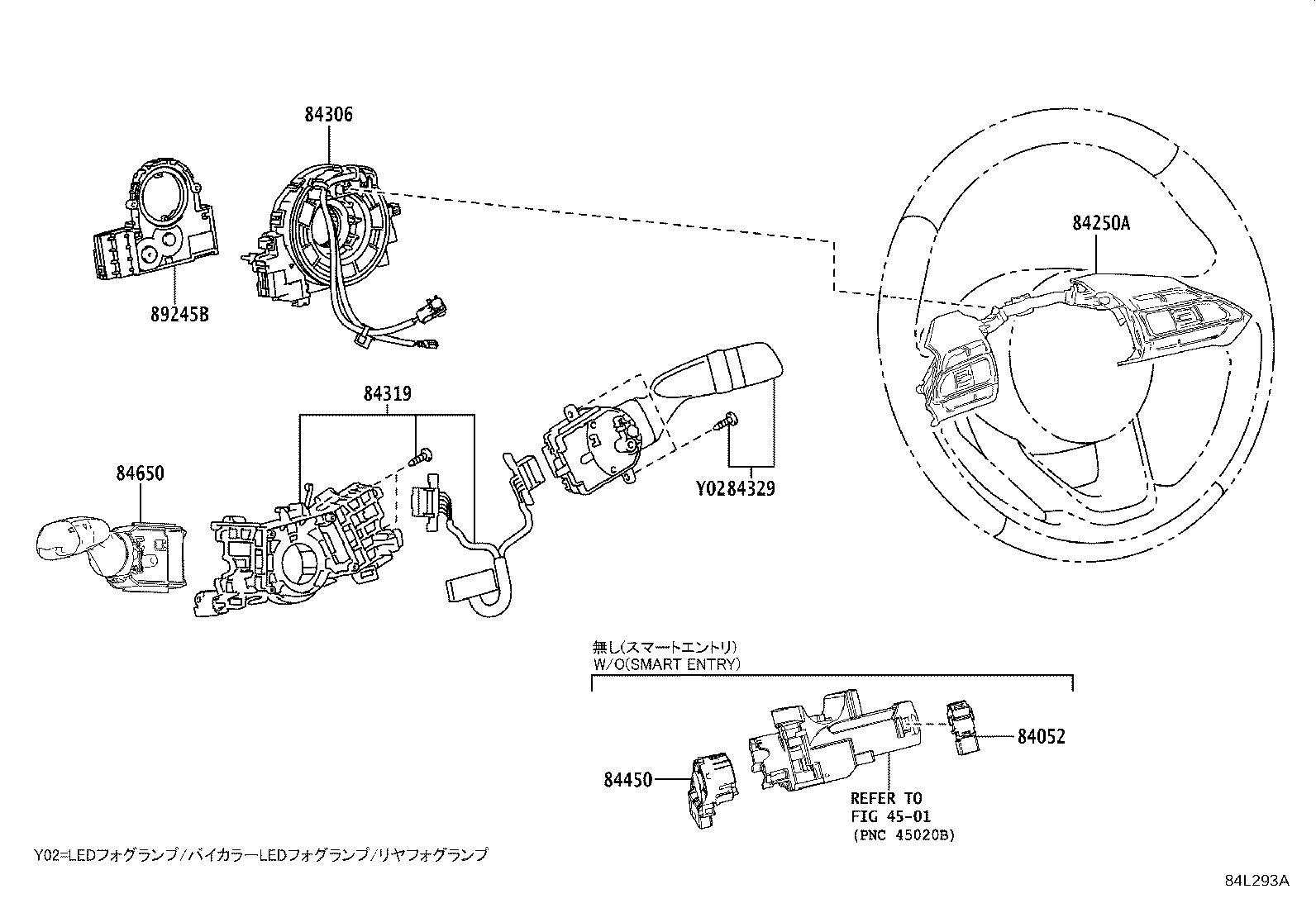

ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 84052-71010 |
KSP210,MXPA10,MXPH10..HBDX,X |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-K0030C3 |
MXPA1#,MXPH1#..G,HBDG,HBDX,X BLACK,TRIM2#,4# |
1 | ||
| 84250-K0020C0 |
KSP210,MXPA1#,MXPH1#..HBDX,X 予防安全ﾊﾟｯｹｰｼﾞ−無し,BLACK,TRIM2#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-12020 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 84308-52010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-33030 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-K0030 |
KSP210,MXPA1#,MXPH1# ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED)DOP&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84329-K0010 |
KSP210,MXPA1#,MXPH1# ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED)DOP |
1 | ||
| 84329-52010 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 84329-K0020 |
KSP210,MXPA1#,MXPH1# ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-33040 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 84450-33040 |
KSP210,MXPA10,MXPH10..HBDX,X |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12B50 |
KSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-60010 |
KSP210,MXPA1#,MXPH1# *614 |
1 | ||
| 8924B-K0010 |
KSP210,MXPA1#,MXPH1# *614 |
1 | ||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 9(2002- )

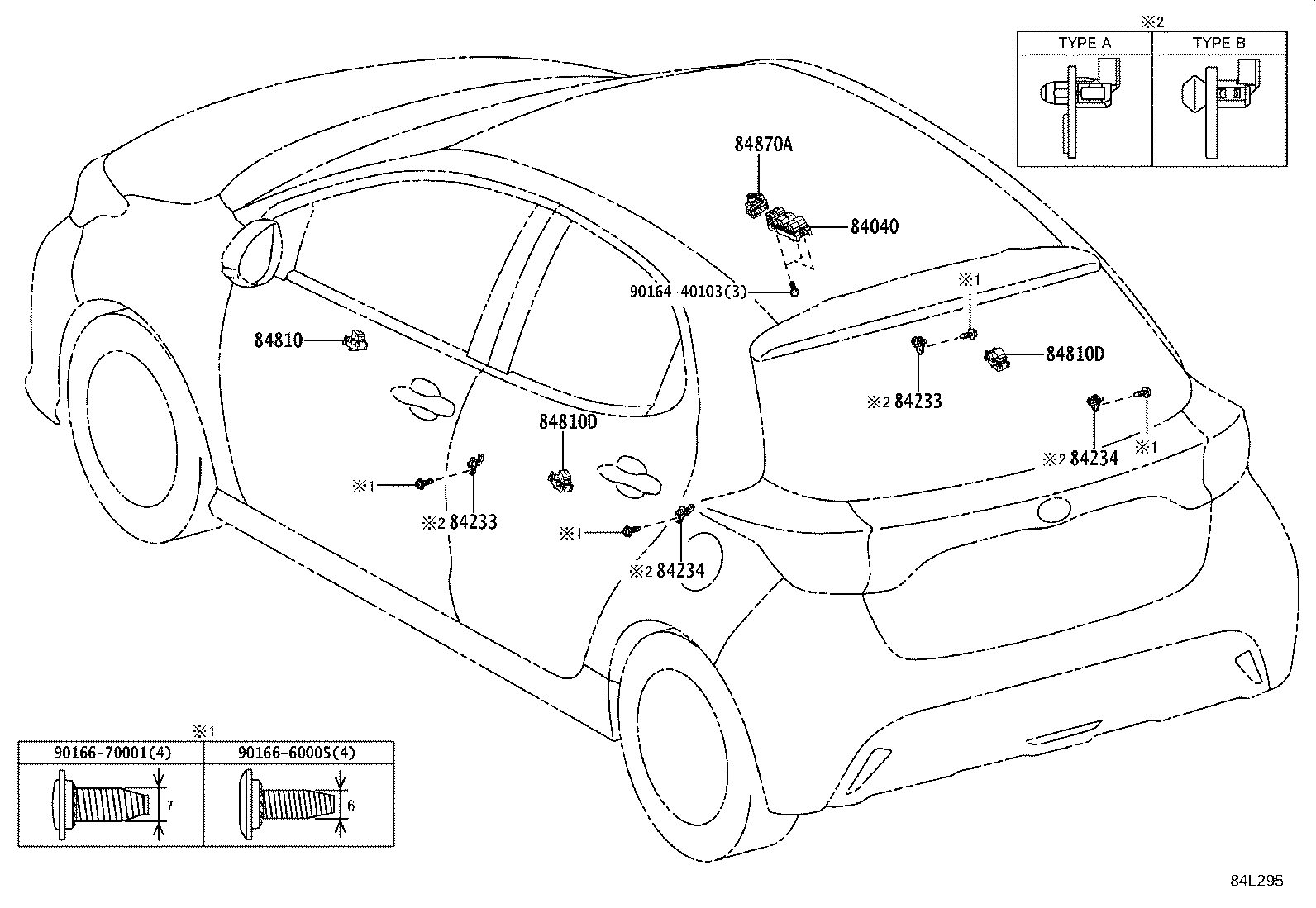

ﾄﾞｱ&ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-52060 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
KSP210,MXPA1#,MXPH1# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 84231-52020 |
KSP210,MXPA1#,MXPH1# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
KSP210,MXPA1#,MXPH1# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 84231-52020 |
KSP210,MXPA1#,MXPH1# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
KSP210,MXPA1#,MXPH1# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 84231-53010 |
KSP210,MXPA1#,MXPH1# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
KSP210,MXPA1#,MXPH1# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 84231-53010 |
KSP210,MXPA1#,MXPH1# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12100 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12100 |
KSP210,MXPA1#,MXPH1# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12100 |
KSP210,MXPA1#,MXPH1# |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-47070 |
KSP210,MXPA1#,MXPH1# |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
ILLUST NO. 8 OF 9(2002- )

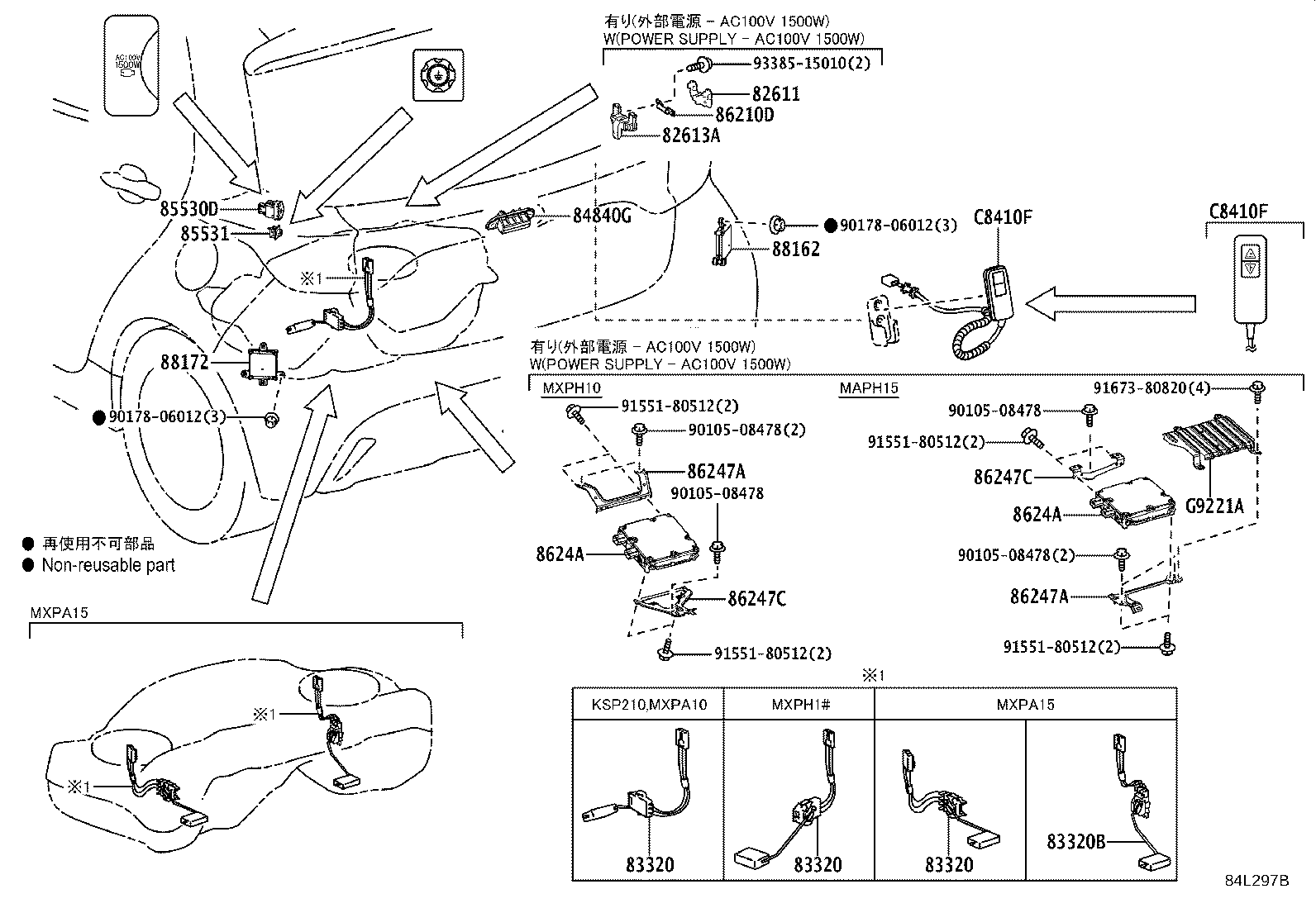

ﾌﾛｱ&ﾊﾞｯｸﾄﾞｱ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-K0070 |
KSP210,MXPA10 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-K0070 |
KSP210,MXPA10 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-K0070 |
KSP210,MXPA10 |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47030 |
KSP210,MXPA10,MXPH10..HBDX,X |
1 | ||
| 84840-47040 |
KSP210,MXPA10..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-K0040 |
KSP210,MXPA1#..CVT..X ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 88162-K0040 |
KSP210,MXPA1#..CVT..X ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-K0040 |
KSP210,MXPA1#..CVT..X ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*BGM) |
1 | ||
| 88162-K0040 |
KSP210,MXPA1#..CVT..X ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ&*RCTB)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| C8410F - SWITCH, POWER LIFT REMOTE CONTROL | ||||
| C8211-52020 |
MXPA10..CVT..(G,X) 有り(車いす収納装置,運転席&助手席回転ﾁﾙﾄｼｰﾄ) |
1 | ||
| C8211-52020 |
KSP210,MXPA10,MXPH10..CVT..(G,HBDG,HBDX,X) 有り(車いす収納装置,助手席回転ﾁﾙﾄｼｰﾄ) |
1 | ||
| C8410F - SWITCH, POWER LIFT REMOTE CONTROL | ||||
| C8211-52020 |
MXPA10..CVT..(G,X) 有り(車いす収納装置,運転席&助手席回転ﾁﾙﾄｼｰﾄ) |
1 | ||
| C8211-52020 |
KSP210,MXPA10,MXPH10..CVT..(G,HBDG,HBDX,X) 有り(車いす収納装置,助手席回転ﾁﾙﾄｼｰﾄ) |
1 | ||
| Common parts | ||||
| 90105-08478 | ||||
| 90178-06012 | ||||
| 91551-80512 | ||||
| 91673-80820 | ||||
| 93385-15010 | ||||

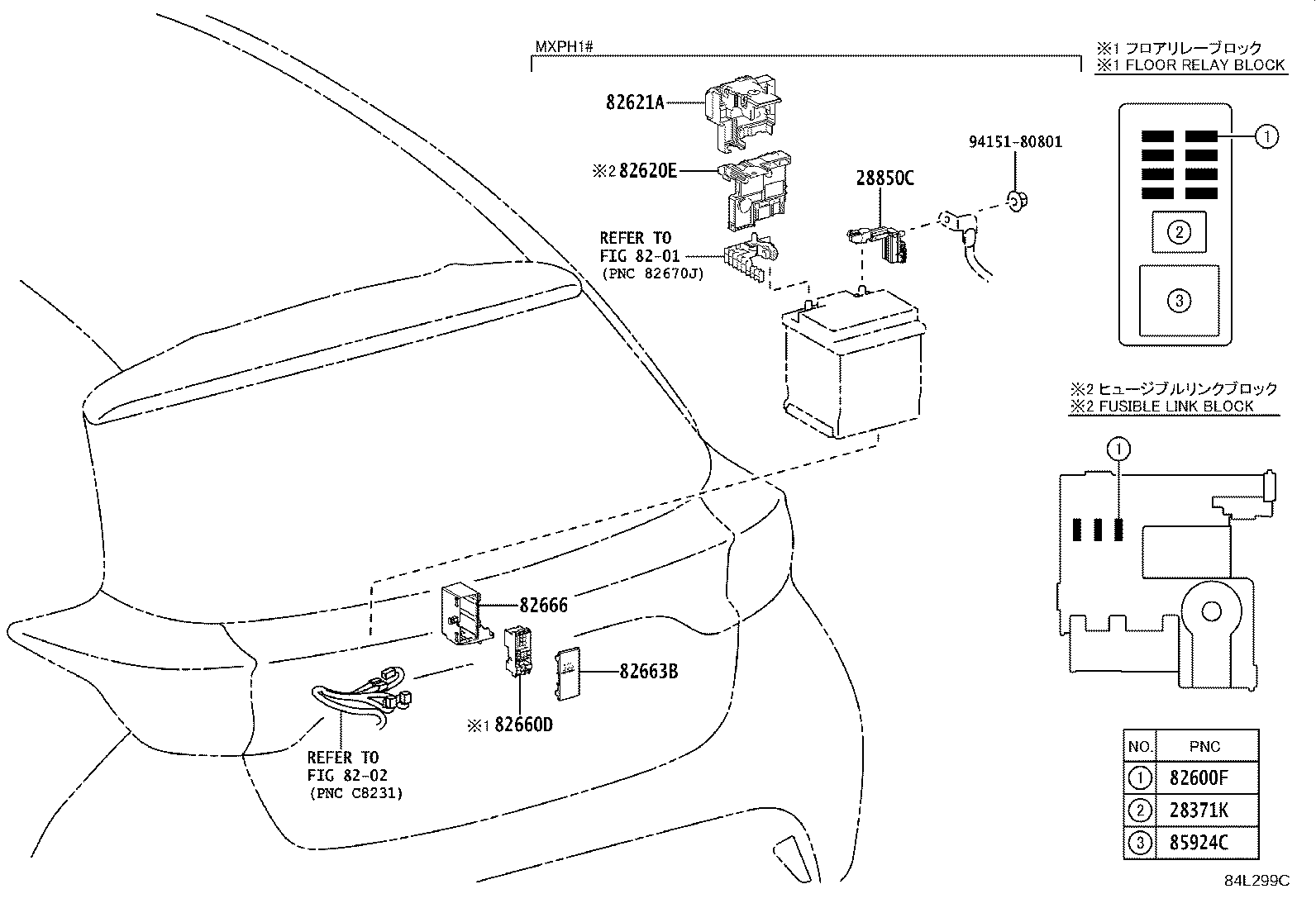

ILLUST NO. 9 OF 9(2002- )
ﾌﾛｱ&ﾊﾞｯｸﾄﾞｱ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
